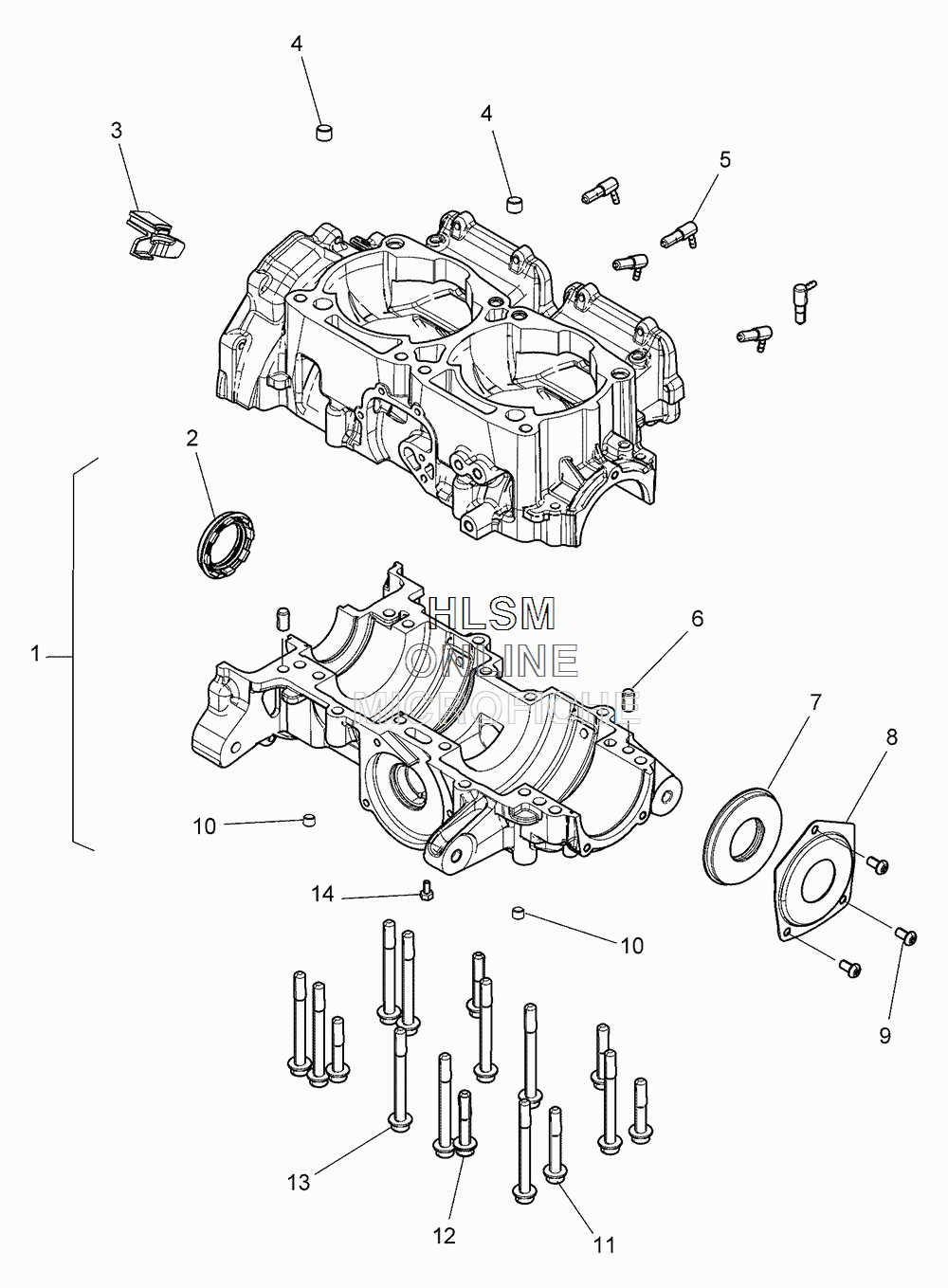

CRANKCASE ASSEMBLY для Polaris 800 SKS 155 [S16EL8PE] - 2016 года выпуска
-
№АртикулНазвание
-
12205651 KIT, CRANKCASE (INCL. 5,6,10-14)KIT, CRANKCASE (INCL. 5,6,10-14)
-
25414096 SEAL, FLANGEDSEAL, FLANGED
-
35437349 RETAINER, WIRE, V8 SDIRETAINER, WIRE, V8 SDI
-
47663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
57051020 VALVE, CHECKVALVE, CHECK
-
67663001 PIN, DOWELPIN, DOWEL
-
75415026 SEAL, FLANGEDSEAL, FLANGED
-
85251374 GUARD, CRANK SEALGUARD, CRANK SEAL
-
97519063 SCREWSCREW
-
107052337 PLUGPLUG
-
117517785 BOLT, 55MMBOLT, 55MM
-
127517786 BOLT, 45MMBOLT, 45MM
-
137517784 BOLT, 80MMBOLT, 80MM
-
147517577 SCREWSCREW
