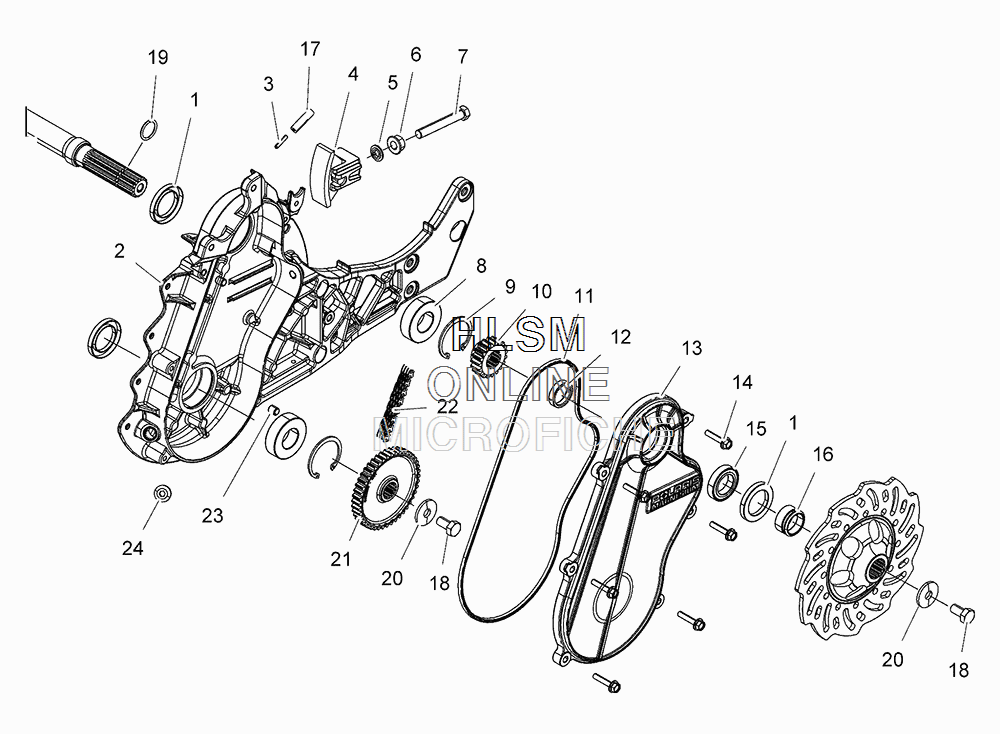

CHAINCASE ASSEMBLY для Polaris 800 SKS 155 [S16EL8PE] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    1333255 ASM., CHAINCASE (INCL. 1,3,8,9,23)
    ASM., CHAINCASE (INCL. 1,3,8,9,23)
  • 3
    5334764 TUBE, VENT
    TUBE, VENT
  • 4
    1332427 ASM., TIGHTENER, CHAIN
    ASM., TIGHTENER, CHAIN
  • 5
    7556340 WASHER, THREAD SEAL
    WASHER, THREAD SEAL
  • 6
    7547017 NUT, HEX
    NUT, HEX
  • 7
    7519938 SCREW
    SCREW
  • 8
    3514309 BEARING, BALL
    BEARING, BALL
  • 9
    7718406 RING, RETAINING
    RING, RETAINING
  • 10
    3221096 SPROCKET, 20T, 3/4W
    SPROCKET, 20T, 3/4W
  • 11
    5814070 GASKET, CHAINCASE COVER
    GASKET, CHAINCASE COVER
  • 12
    5137587 SLEEVE, CHAINCASE
    SLEEVE, CHAINCASE
  • 13
    1333256 ASM., CHAINCASE COVER (INCL. 1,15)
    ASM., CHAINCASE COVER (INCL. 1,15)
  • 14
    7518993 SCREW
    SCREW
  • 15
    3514643 BEARING, BALL
    BEARING, BALL
  • 16
    5136533 SLEEVE, SEAL
    SLEEVE, SEAL
  • 17
    8450061-600 LINE, OIL, 600 CM, SERVICE
    LINE, OIL, 600 CM, SERVICE
  • 18
    7519004 BOLT
    BOLT
  • 19
    5413563 O-RING
    O-RING
  • 20
    7556130 WASHER, BELLVILLE
    WASHER, BELLVILLE
  • 21
    3222099 SPROCKET, 40T
    SPROCKET, 40T
  • 22
    3221110 CHAIN, 72P, 3/4W
    CHAIN, 72P, 3/4W
  • 23
    7663007 DOWEL, HOLLOW
    DOWEL, HOLLOW
  • 24
    7052458 PLUG, MAGNETIC
    PLUG, MAGNETIC
