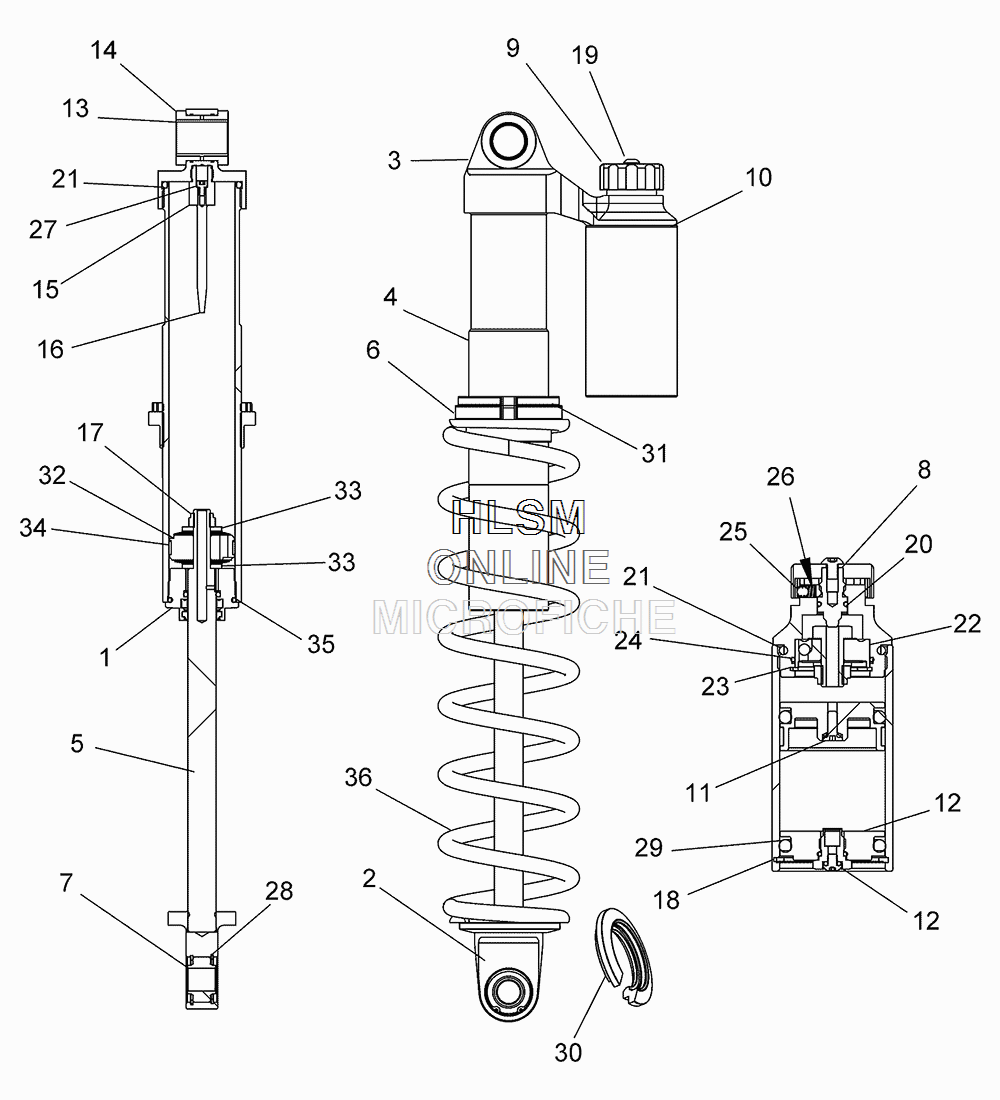

SUSPENSION - IFS SHOCK W/RESERVOIR для Polaris 800 RMK ASSAULT 155 [S16EN8PSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    7044343 SHOCK, WALKER EVANS, IFS, W/RES
    SHOCK, WALKER EVANS, IFS, W/RES
  • 1
    1800414 ASM., SEAL HEAD
    ASM., SEAL HEAD
  • 2
    1800422 LOOP, SHAFT
    LOOP, SHAFT
  • 3
    1800424 LOOP, BODY, PB, 2''
    LOOP, BODY, PB, 2''
  • 4
    1800652 BODY, IFS, 9.295L, BLACK
    BODY, IFS, 9.295L, BLACK
  • 5
    1800423 SHAFT, NEEDLE, IFS
    SHAFT, NEEDLE, IFS
  • 6
    1800046 RETAINER, SPRING
    RETAINER, SPRING
  • 7
    1800040 END BEARING
    END BEARING
  • 8
    1800352 STUD CLICKER
    STUD CLICKER
  • 9
    1800418 KNOB, CLICKER, BLACK
    KNOB, CLICKER, BLACK
  • 10
    1800419 BODY, RES., 3.75L, BLACK
    BODY, RES., 3.75L, BLACK
  • 11
    1800739 ASM., IFP PISTON
    ASM., IFP PISTON
  • 12
    1800740 ASM., END CAP 1.750AV
    ASM., END CAP 1.750AV
  • 13
    1800405 SLEEVE
    SLEEVE
  • 14
    1800406 BUSHING
    BUSHING
  • 15
    1800302 NEEDLE BOLT
    NEEDLE BOLT
  • 16
    1800300 NEEDLE, 2.725L
    NEEDLE, 2.725L
  • 17
    1800031 NUT, CRIMP
    NUT, CRIMP
  • 18
    1800159 RING, SNAP
    RING, SNAP
  • 19
    1800357 SCREW, BTN HD
    SCREW, BTN HD
  • 20
    1800501 O-RING
    O-RING
  • 21
    1800030 O-RING, BODY
    O-RING, BODY
  • 22
    1800746 ASM., CLICKER PISTON
    ASM., CLICKER PISTON
  • 23
    1800359 RING, RETAINING
    RING, RETAINING
  • 24
    1800358 O-RING
    O-RING
  • 25
    1800127 BALL, DETENT
    BALL, DETENT
  • 26
    1800128 SPRING, DETENT
    SPRING, DETENT
  • 27
    1800074 SCREW-BLEED, W/O-RING
    SCREW-BLEED, W/O-RING
  • 28
    1800041 SNAP RING, END BRNG
    SNAP RING, END BRNG
  • 29
    1800184 O-RING
    O-RING
  • 30
    1800116 SPRING, RET. RING
    SPRING, RET. RING
  • 31
    1800465 NUT, JAM
    NUT, JAM
  • 32
    1800001 PISTON, CONVEX, .063 BLEED
    PISTON, CONVEX, .063 BLEED
  • 33
    1800204 WASHER
    WASHER
  • 34
    1800297 WEAR BAND, 1.460 O.D
    WEAR BAND, 1.460 O.D
  • 35
    1800027 O-RING
    O-RING
  • 36
    7043679-458 SPRING, COMPRESSION, 130#, BLACK
    SPRING, COMPRESSION, 130#, BLACK
