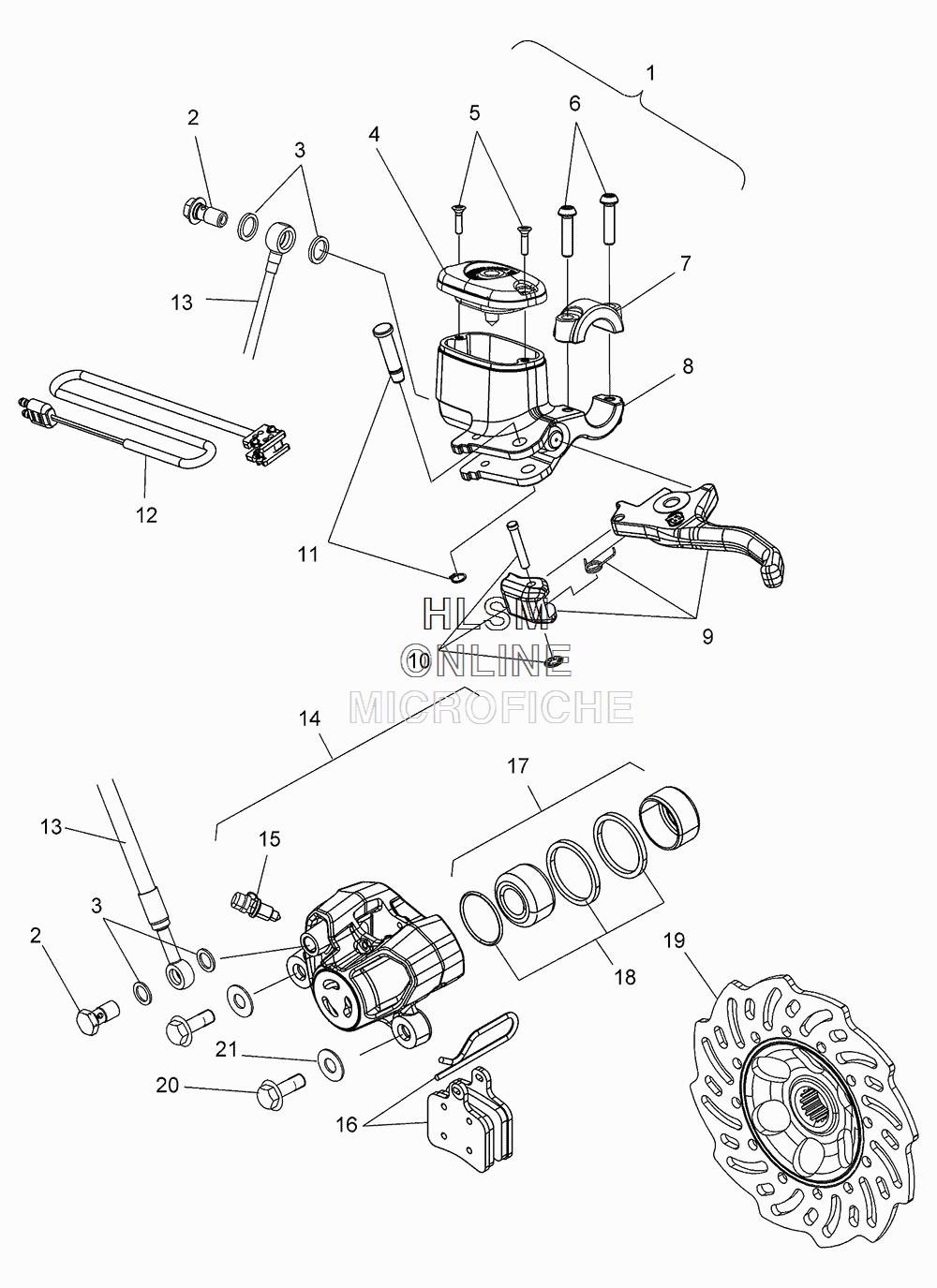

BRAKE ASSEMBLY для Polaris 800 RMK ASSAULT 155 [S16EN8PSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2206031 KIT, FULL MASTER CYL. ASM (INCL. 2-12)
    KIT, FULL MASTER CYL. ASM (INCL. 2-12)
  • 2
    2203392 KIT, BANJO BOLT
    KIT, BANJO BOLT
  • 3
    2203393 KIT, WASHER, STATOSEAL (2 PER)
    KIT, WASHER, STATOSEAL (2 PER)
  • 4
    2203055 KIT, M/C COVER
    KIT, M/C COVER
  • 5
    2202796 KIT, SCREW, RESERVOIR
    KIT, SCREW, RESERVOIR
  • 6
    2202798 KIT, SCREW, CLAMP
    KIT, SCREW, CLAMP
  • 7
    2203093 KIT, CLAMP
    KIT, CLAMP
  • 8
    2204136 KIT, PISTON SUB W/RESERVOIR
    KIT, PISTON SUB W/RESERVOIR
  • 9
    2202791 KIT, ASM., BRAKE LEVER/PARK LEVER (INCL. 10)
    KIT, ASM., BRAKE LEVER/PARK LEVER (INCL. 10)
  • 10
    2203054 KIT, PARK LEVER ASM (INCL. LEVER, SPRING, PIN AND CLIP)
    KIT, PARK LEVER ASM (INCL. LEVER, SPRING, PIN AND CLIP)
  • 11
    2202799 KIT, PIVOT PIN AND SNAP RING
    KIT, PIVOT PIN AND SNAP RING
  • 12
    2205907 KIT, BRAKE LIGHT SWITCH
    KIT, BRAKE LIGHT SWITCH
  • 13
    2205924 KIT, BRAKE LINE, 810MM
    KIT, BRAKE LINE, 810MM
  • 14
    2205918 KIT, CALIPER, FULL ASM. LEFT
    KIT, CALIPER, FULL ASM. LEFT
  • 14
    2205919 KIT, HOUSING, PISTON, SEALS AND BLEEDER
    KIT, HOUSING, PISTON, SEALS AND BLEEDER
  • 15
    2205923 KIT, SCREW, BLEEDER
    KIT, SCREW, BLEEDER
  • 16
    2205920 KIT, BRAKE PADS (INCL. RETAINER PIN)
    KIT, BRAKE PADS (INCL. RETAINER PIN)
  • 17
    2205921 KIT, PISTON AND SEALS
    KIT, PISTON AND SEALS
  • 18
    2205922 KIT, PISTON SEALS
    KIT, PISTON SEALS
  • 19
    2205373 KIT, SERVICE DISC BRAKE, LWT
    KIT, SERVICE DISC BRAKE, LWT
  • 20
    7519243 BOLT, FLANGE
    BOLT, FLANGE
  • 21
    7556524 WASHER
    WASHER
