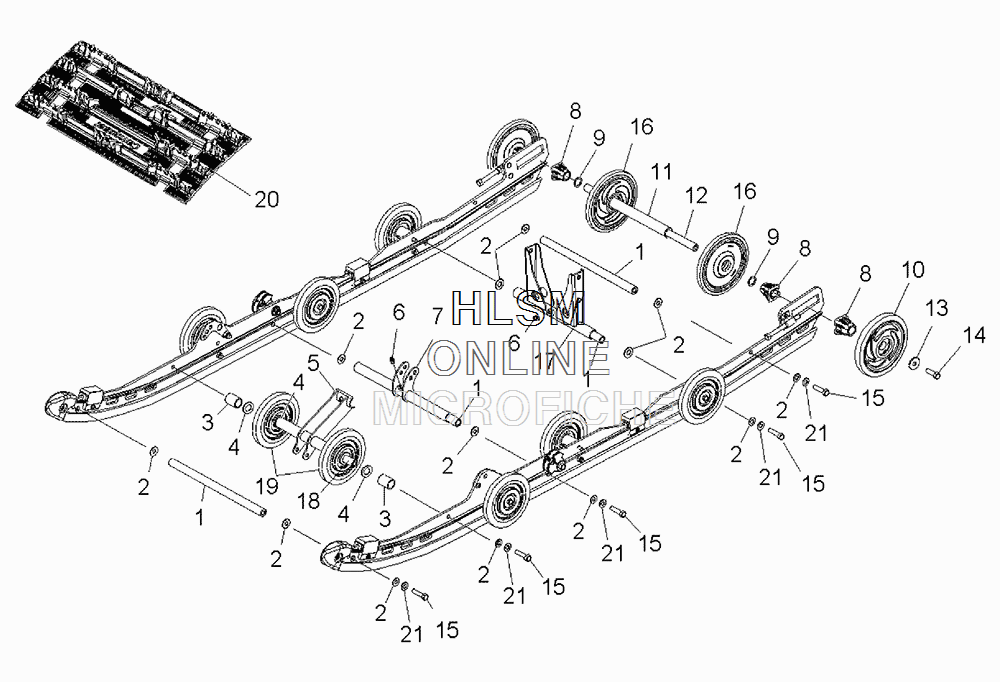

SUSPENSION - REAR W/ TRACK для Polaris 600 WIDETRAK IQ [S16PU6NSL] - 2016 года выпуска`
-
№АртикулНазвание
-
15132239 SHAFT, PIVOTSHAFT, PIVOT
-
27555976 WASHER, FLATWASHER, FLAT
-
35333012 SPACERSPACER
-
47556301 BUSHINGBUSHING
-
51542462-329 ARM, PIVOT, BLACKARM, PIVOT, BLACK
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
71542464-329 ARM, SHOCK, PIVOTARM, SHOCK, PIVOT
-
85432535 SPACER, IDLERSPACER, IDLER
-
97555918 BUSHINGBUSHING
-
101590388-244 ASM., WHEEL, SCROLLED, BR. SILVERASM., WHEEL, SCROLLED, BR. SILVER
-
103514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
107710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
115333523 SPACER, IDLERSPACER, IDLER
-
125020879 SHAFT, IDLERSHAFT, IDLER
-
137556130 WASHER, BELLEWASHER, BELLE
-
147517731 BOLTBOLT
-
157518005 SCREWSCREW
-
161590388-070 ASM., WHEEL, SCROLLED, BLACKASM., WHEEL, SCROLLED, BLACK
-
163514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
167710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
171542463-329 ARM, PIVOT, REARARM, PIVOT, REAR
-
185020720 SHAFTSHAFT
-
191590467 ASM., WHEELASM., WHEEL
-
193514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
195431531 INSERT (1 PER WHEEL)INSERT (1 PER WHEEL)
-
197718407 RING, RETAININGRING, RETAINING
-
205413426 TRACKTRACK
-
217552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
