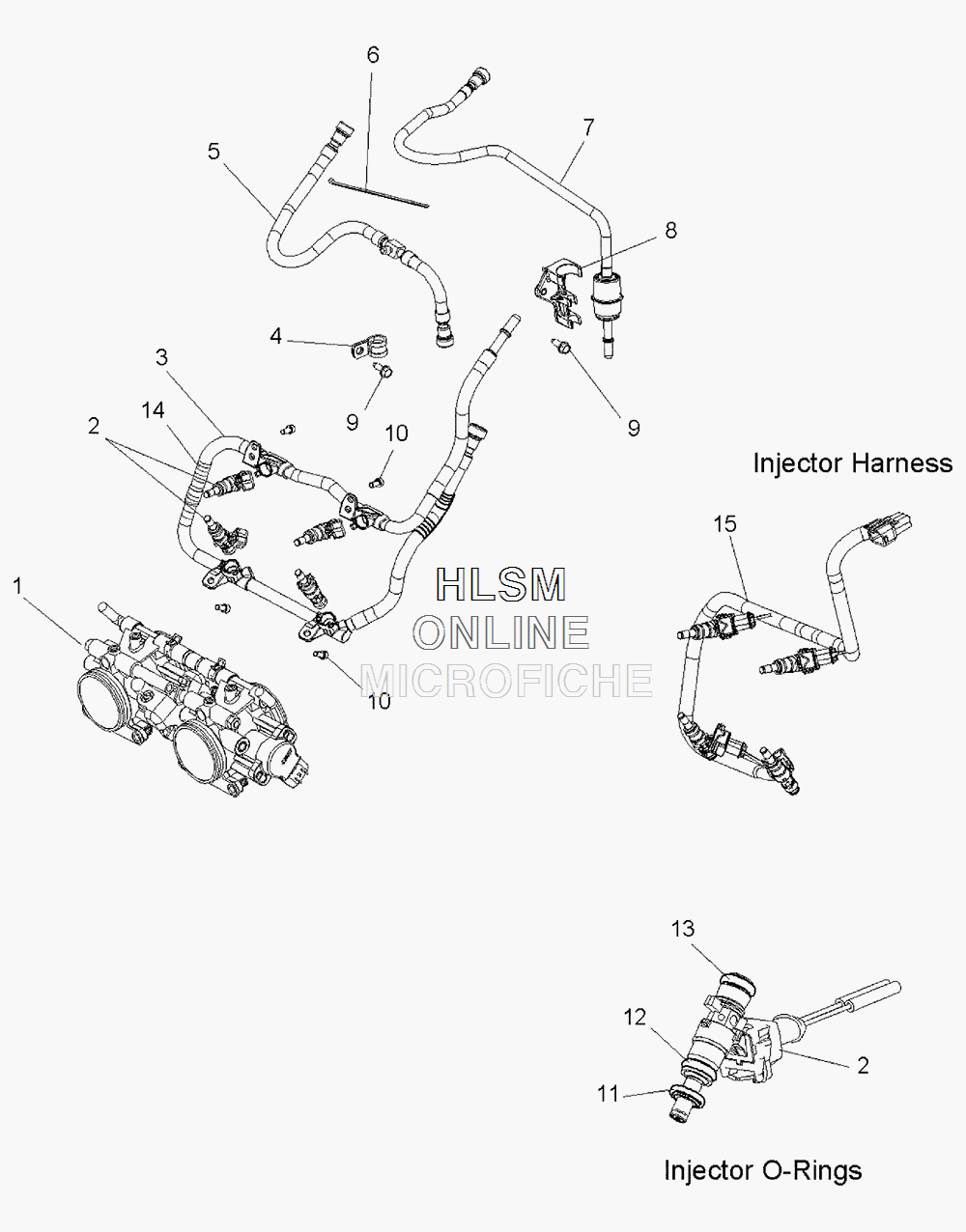

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 WIDETRAK IQ [S16PU6NSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1203213 ASM., THROTTLE BODY
    ASM., THROTTLE BODY
  • 2
    2203894-015 KIT, INJECTOR, RED (INCLUDES 1 INJECTOR PER KIT)
    KIT, INJECTOR, RED (INCLUDES 1 INJECTOR PER KIT)
  • 2
    2203894-027 KIT, INJECTOR, BLUE (INCLUDES 1 INJECTOR PER KIT)
    KIT, INJECTOR, BLUE (INCLUDES 1 INJECTOR PER KIT)
  • 2
    2203894-053 KIT, INJECTOR, YELLOW (INCLUDES 1 INJECTOR PER KIT)
    KIT, INJECTOR, YELLOW (INCLUDES 1 INJECTOR PER KIT)
  • 3
    2520572 ASM., FUEL RAIL
    ASM., FUEL RAIL
  • 4
    7080573 CLAMP, RUBBER COATED
    CLAMP, RUBBER COATED
  • 5
    2520648 ASM., FUEL LINE, RETURN
    ASM., FUEL LINE, RETURN
  • 6
    7080138 CABLE TIE
    CABLE TIE
  • 7
    2520647 ASM., FUEL LINE, FILTER
    ASM., FUEL LINE, FILTER
  • 8
    1203256 ASM., FUEL FILTER RETAINER (INCL. PAD)
    ASM., FUEL FILTER RETAINER (INCL. PAD)
  • 8
    5812996 PAD, FUEL FILTER
    PAD, FUEL FILTER
  • 9
    7512095 SCREW
    SCREW
  • 10
    7517431 SCREW
    SCREW
  • 11
    5436287 BUSHING, RUBBER (GREEN) (1 PER INJECTOR)
    BUSHING, RUBBER (GREEN) (1 PER INJECTOR)
  • 12
    1500198 O-RING (BLACK) (1 PER INJECTOR)
    O-RING (BLACK) (1 PER INJECTOR)
  • 13
    5412891 O-RING (BROWN) (1 PER INJECTOR)
    O-RING (BROWN) (1 PER INJECTOR)
  • 14
    8360052-305 TUBING, CONVOLUTED (SVC)
    TUBING, CONVOLUTED (SVC)
  • 15
    4012122 HARNESS, 4 INJECTOR, DC-SDI
    HARNESS, 4 INJECTOR, DC-SDI
