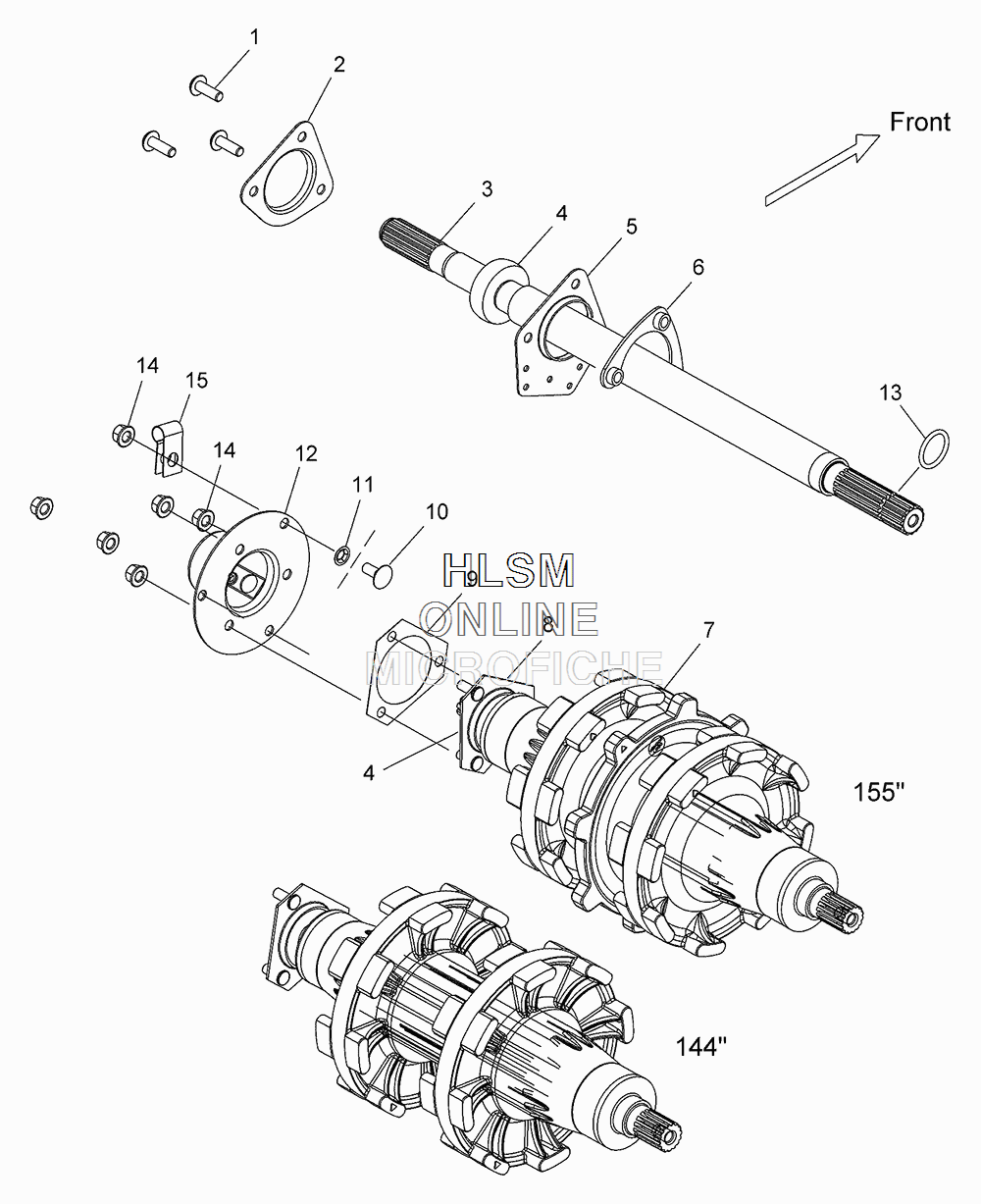

JACKSHAFT ASSEMBLY для Polaris 600 RMK 155 [S16CM6GSA] - 2016 года выпуска`
-
№АртикулНазвание
-
17519260 SCREWSCREW
-
25252738 FLANGETTE, 3 BOLT, OFFSET, OUTFLANGETTE, 3 BOLT, OFFSET, OUT
-
31332854 ASM., JACKSHAFT (INCL. 4)ASM., JACKSHAFT (INCL. 4)
-
43514617 BEARINGBEARING
-
55252739 FLANGETTE, 3 BOLT, OFFSET, INFLANGETTE, 3 BOLT, OFFSET, IN
-
61017848 ASM., NUT PLATE, JACKSHAFTASM., NUT PLATE, JACKSHAFT
-
71590486 ASM., DRIVESHAFT (INCL. 4,8)ASM., DRIVESHAFT (INCL. 4,8)
-
81016551 ASM., FLANGETTE W/SCREWSASM., FLANGETTE W/SCREWS
-
95811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
107519324 SCREWSCREW
-
117547030 NUT, PALNUT, PAL
-
125246960 HOUSING, DRIVE PICK UPHOUSING, DRIVE PICK UP
-
135413563 O-RINGO-RING
-
147547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
157080367 CLAMP, CABLECLAMP, CABLE
