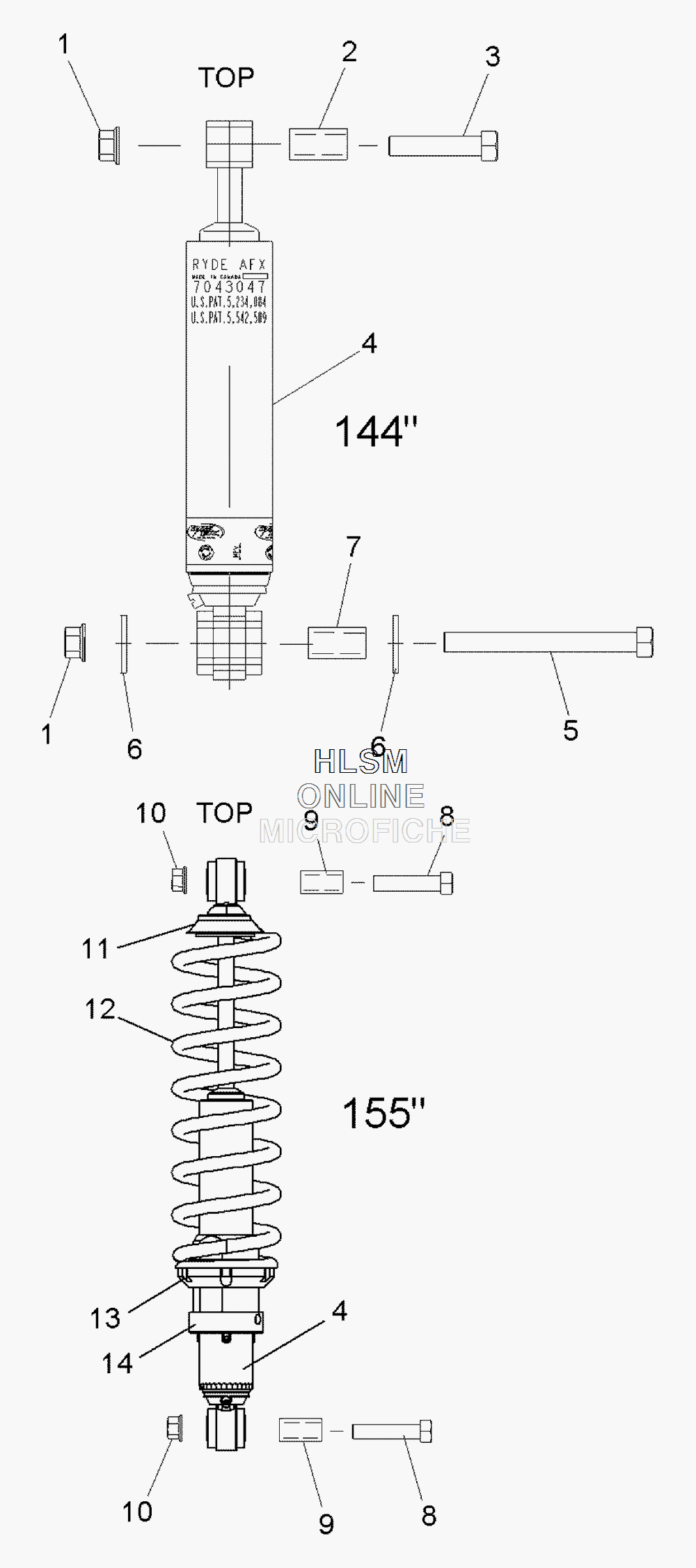

SUSPENSION - REAR SHOCK TRACK для Polaris 600 RMK 155 [S16CM6GSA] - 2016 года выпуска`
-
№АртикулНазвание
-
17547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
25010422 BUSHINGBUSHING
-
37512410 SCREWSCREW
-
47043733 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
57518263 SCREWSCREW
-
67555795 WASHER, WAVEWASHER, WAVE
-
75333905 SLEEVESLEEVE
-
87519097 SCREWSCREW
-
95137230 BUSHINGBUSHING
-
107547480 NUT, NYLOK, ZODNUT, NYLOK, ZOD
-
115137464 RETAINER, SPRINGRETAINER, SPRING
-
127043680-293 SPRING, COMPRESSION, 210#, RED (STD.) (155 INCH)SPRING, COMPRESSION, 210#, RED (STD.) (155 INCH)
-
127043741-067 SPRING, COMPRESSION, 250#, BLACK (ACCY.) (155 INCH)SPRING, COMPRESSION, 250#, BLACK (ACCY.) (155 INCH)
-
135431734 RING, SPRING PRELOAD, ADJ.RING, SPRING PRELOAD, ADJ.
-
145137578 RETAINER, SPRING, THREADEDRETAINER, SPRING, THREADED
