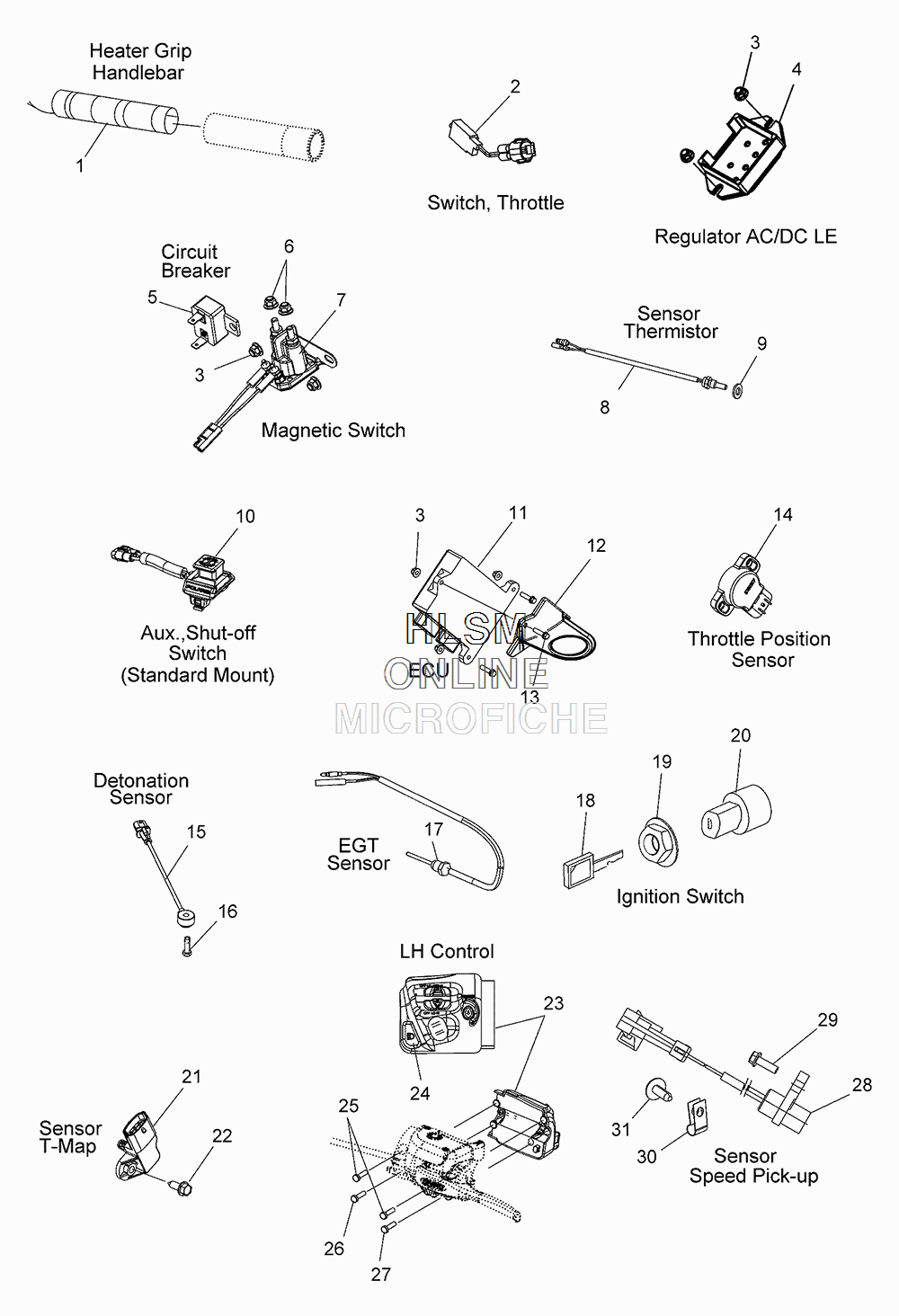

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 RMK 155 [S16CM6GSA] - 2016 года выпуска`
-
№АртикулНазвание
-
12413078 GRIP, HEATER, LO/MED/HI SHORTGRIP, HEATER, LO/MED/HI SHORT
-
24015245 SWITCH, THROTTLESWITCH, THROTTLE
-
37547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
44013460 REGULATOR, AC/DC LEREGULATOR, AC/DC LE
-
52411592 BREAKER, CIRCUIT, 12 AMPBREAKER, CIRCUIT, 12 AMP
-
67542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
74012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
84012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
97556357 WASHER, COPPERWASHER, COPPER
-
102010426 ASM., SWITCH, AUX. SHUTOFF. STD. MNTASM., SWITCH, AUX. SHUTOFF. STD. MNT
-
114015152 ECU, DC/SDI LES, 32MHZECU, DC/SDI LES, 32MHZ
-
125438088 MOUNT, ECUMOUNT, ECU
-
137518533 BOLTBOLT
-
143131751 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
152410369 SENSOR, DETONATIONSENSOR, DETONATION
-
167517262 SCREWSCREW
-
174013133 SENSOR, EGTSENSOR, EGT
-
185410611 CAP W/KEY (SEE NOTE)CAP W/KEY (SEE NOTE)
-
197547035 NUT, IGNITIONNUT, IGNITION
-
202205055 KIT, IGNITION SWITCHKIT, IGNITION SWITCH
-
212411528 SENSOR, T-MAPSENSOR, T-MAP
-
227512095 SCREWSCREW
-
232010370 ASM., LEFT HAND CONTROL, MFG, REVASM., LEFT HAND CONTROL, MFG, REV
-
245438874 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
257517441 SCREW, .75SCREW, .75
-
267512078 SCREW, 1.12SCREW, 1.12
-
277517566 SCREW. 1.5SCREW. 1.5
-
282411353 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
197518280 SCREWSCREW
-
307080960 CLAMP, CABLECLAMP, CABLE
-
317661637 RIVETRIVET
