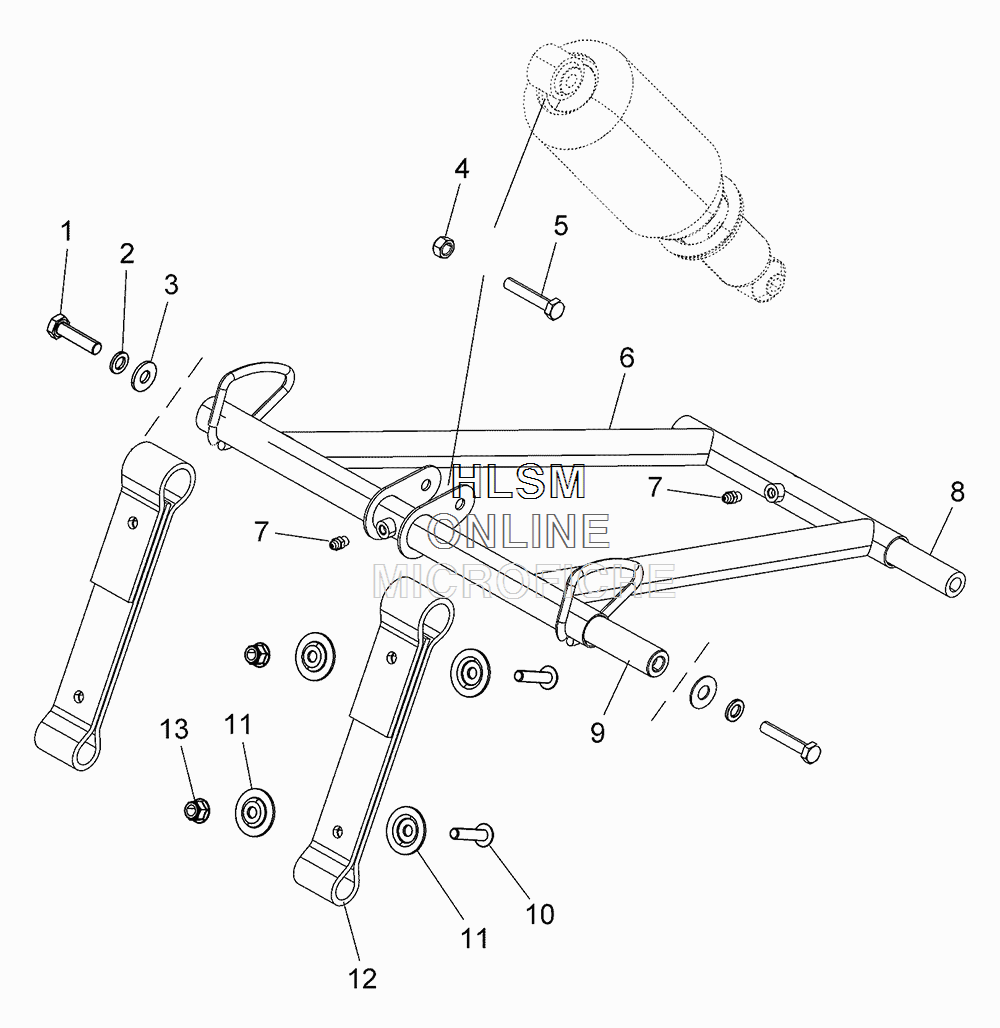

SUSPENSION - TORQUE ARM - FRONT для Polaris 550 INDY VOYAGEUR 155 INTL [S16CU5BEL] - 2016 года выпуска
-
№АртикулНазвание
-
17519223 SCREWSCREW
-
27556558 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37556559 WASHERWASHER
-
47547480 NUTNUT
-
57519097 SCREWSCREW
-
61543366-329 ARM, TORQUE, FRONT, 155, E-COATARM, TORQUE, FRONT, 155, E-COAT
-
77080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
85137418 SHAFT, CROSSSHAFT, CROSS
-
95138059 SHAFT, HOLLOWSHAFT, HOLLOW
-
107518953 SCREW, TR/TXSCREW, TR/TX
-
117556491 WASHER, DOMEDWASHER, DOMED
-
125415353 STRAP, LIMITERSTRAP, LIMITER
-
137547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
