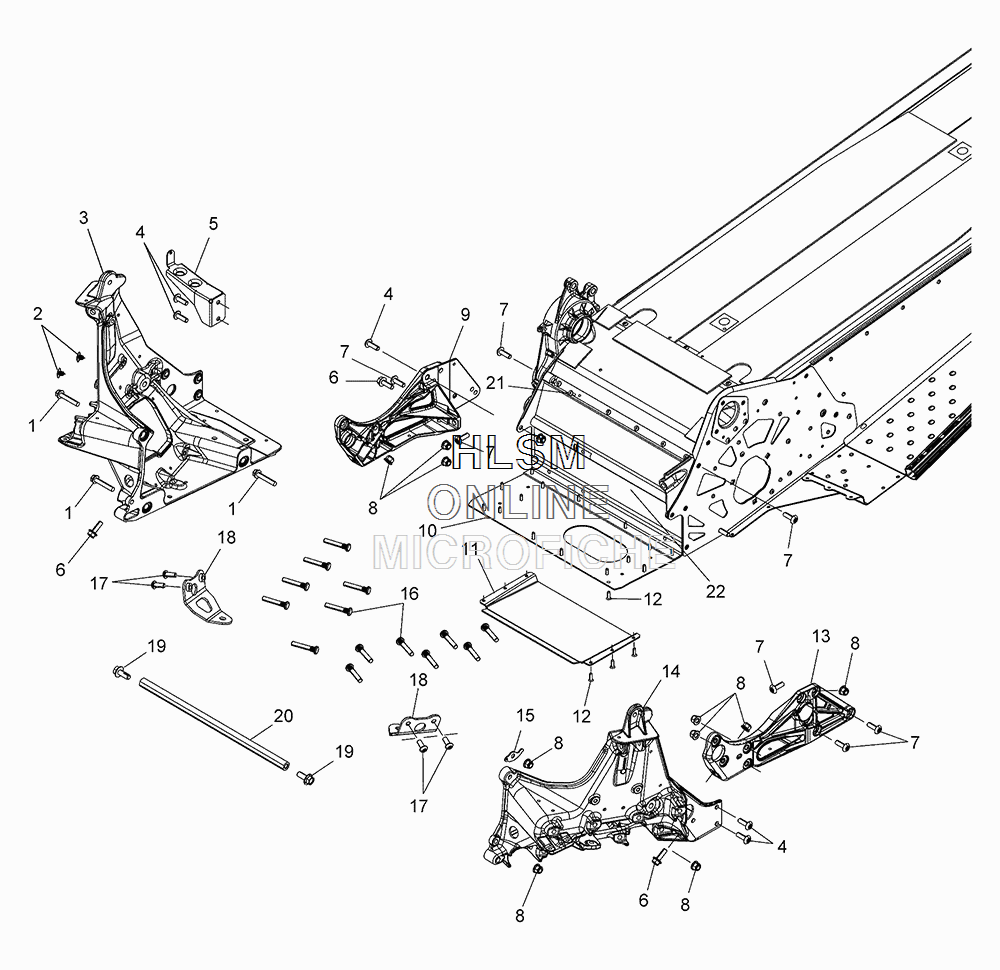

BULKHEAD ASSEMBLY для Polaris 550 INDY VOYAGEUR 155 INTL [S16CU5BEL] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
    KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
  • -
    2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
    KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
  • -
    2204172 KIT, LORD, MIX NOZZLES, 12 PIECE
    KIT, LORD, MIX NOZZLES, 12 PIECE
  • 1
    7516732 SCREW
    SCREW
  • 2
    7670067 CLIP, DART, NYLON
    CLIP, DART, NYLON
  • 3
    1020266 ASM., CLIP, F/C RIGHT, RACK STEER (INCL. 16) (REQUIRES ADHESIVE)
    ASM., CLIP, F/C RIGHT, RACK STEER (INCL. 16) (REQUIRES ADHESIVE)
  • 4
    7519070 SCREW
    SCREW
  • 5
    5255064 BRKT., LOWER RESONATOR SUPPORT
    BRKT., LOWER RESONATOR SUPPORT
  • 6
    7519243 SCREW
    SCREW
  • 7
    7518906 SCREW
    SCREW
  • 8
    7547332 NUT
    NUT
  • 9
    5138693 BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)
    BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)
  • 10
    5256779 FLOOR, BULKHEAD, VENTED
    FLOOR, BULKHEAD, VENTED
  • 11
    5256780 VENT, FLOOR
    VENT, FLOOR
  • 12
    7661637 RIVET
    RIVET
  • 13
    1017942 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
    ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
  • 14
    1020265 ASM., CLIP, F/C LEFT, RACK STEER (INCL. 16) (REQUIRES ADHESIVE)
    ASM., CLIP, F/C LEFT, RACK STEER (INCL. 16) (REQUIRES ADHESIVE)
  • 15
    5252680 BRKT., PIPE/CHASSIS
    BRKT., PIPE/CHASSIS
  • 16
    7519204 STUD
    STUD
  • 17
    7518656 BOLT
    BOLT
  • 18
    1020246 ASM., BRKT., PITMAN/IDLER SUPPORT
    ASM., BRKT., PITMAN/IDLER SUPPORT
  • 19
    7518934 SCREW
    SCREW
  • 20
    5137910 TUBE, CROSS
    TUBE, CROSS
  • 21
    7661973 RIVET
    RIVET
  • 22
    5137715 CLOSE OFF, BULKHEAD, F/C
    CLOSE OFF, BULKHEAD, F/C
