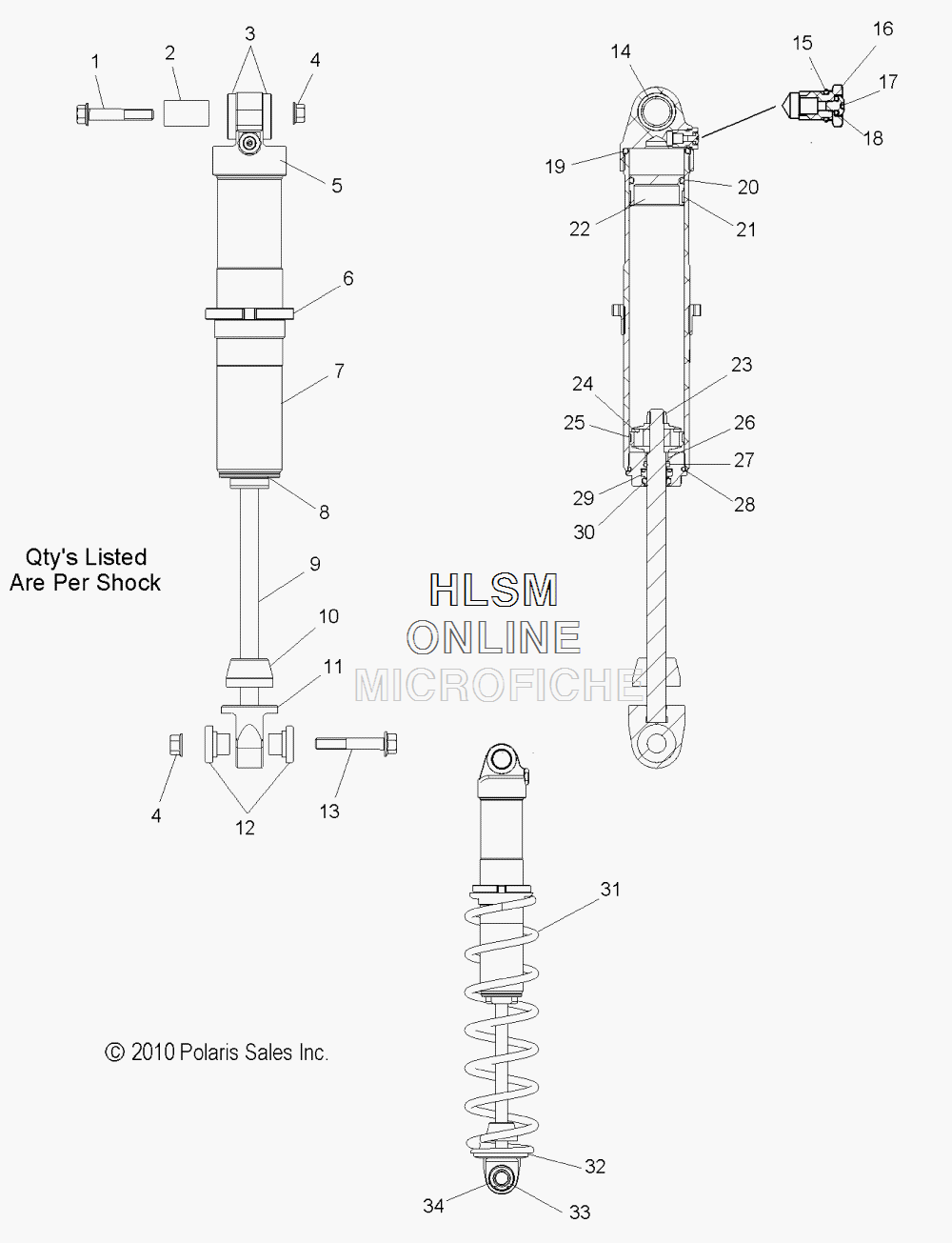

SUSPENSION - IFS SHOCK- LE (7043835) для Polaris 800 RMK 155 LE [S15CC8] - 2015 года выпуска`
-
№АртикулНазвание
-
17043835 SHOCK, WALKER EVANS, IFSSHOCK, WALKER EVANS, IFS
-
17518941 SCREWSCREW
-
25137360 BUSHINGBUSHING
-
31800406 BUSHINGBUSHING
-
47547423 NUTNUT
-
51800407 LOOP, BODYLOOP, BODY
-
61800046 RETAINER, SPRINGRETAINER, SPRING
-
71800539 BODYBODY
-
81800545 ASM., SEAL HEAD, SHORTASM., SEAL HEAD, SHORT
-
91800541 SHAFT, IFSSHAFT, IFS
-
101800462 BUMPERBUMPER
-
111800540 LOOP, SHAFT, SHORTLOOP, SHAFT, SHORT
-
125138124 SPACERSPACER
-
137519245 SCREWSCREW
-
141800405 SLEEVESLEEVE
-
151800215 O-RINGO-RING
-
161800329 NEEDLE VALVENEEDLE VALVE
-
171800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
181800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
191800030 O-RING, BODYO-RING, BODY
-
201800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
211800297 WEAR BAND, TEFLONWEAR BAND, TEFLON
-
221800348 PISTON, RES. IFPPISTON, RES. IFP
-
231800031 NUT, CRIMPNUT, CRIMP
-
241800542 PISTON, THINPISTON, THIN
-
251800543 WEAR BAND, NARROWWEAR BAND, NARROW
-
261800544 BUSHING, SHAFTBUSHING, SHAFT
-
271800095 O-RINGO-RING
-
281800027 O-RING, BODYO-RING, BODY
-
291800294 SEAL, U-CUPSEAL, U-CUP
-
301800295 SEAL, WIPERSEAL, WIPER
-
317043460-133 SPRING, COMPRESSION, 100#, WHITESPRING, COMPRESSION, 100#, WHITE
-
317043460-458 SPRING, COMPRESSION, 100#, BLACKSPRING, COMPRESSION, 100#, BLACK
-
317043460-293 SPRING, COMPRESSION, 100#, REDSPRING, COMPRESSION, 100#, RED
-
321800116 RING, SPRING RETAINERRING, SPRING RETAINER
-
331800040 BEARING, ENDBEARING, END
-
341800041 SNAP RING, END BEARINGSNAP RING, END BEARING
