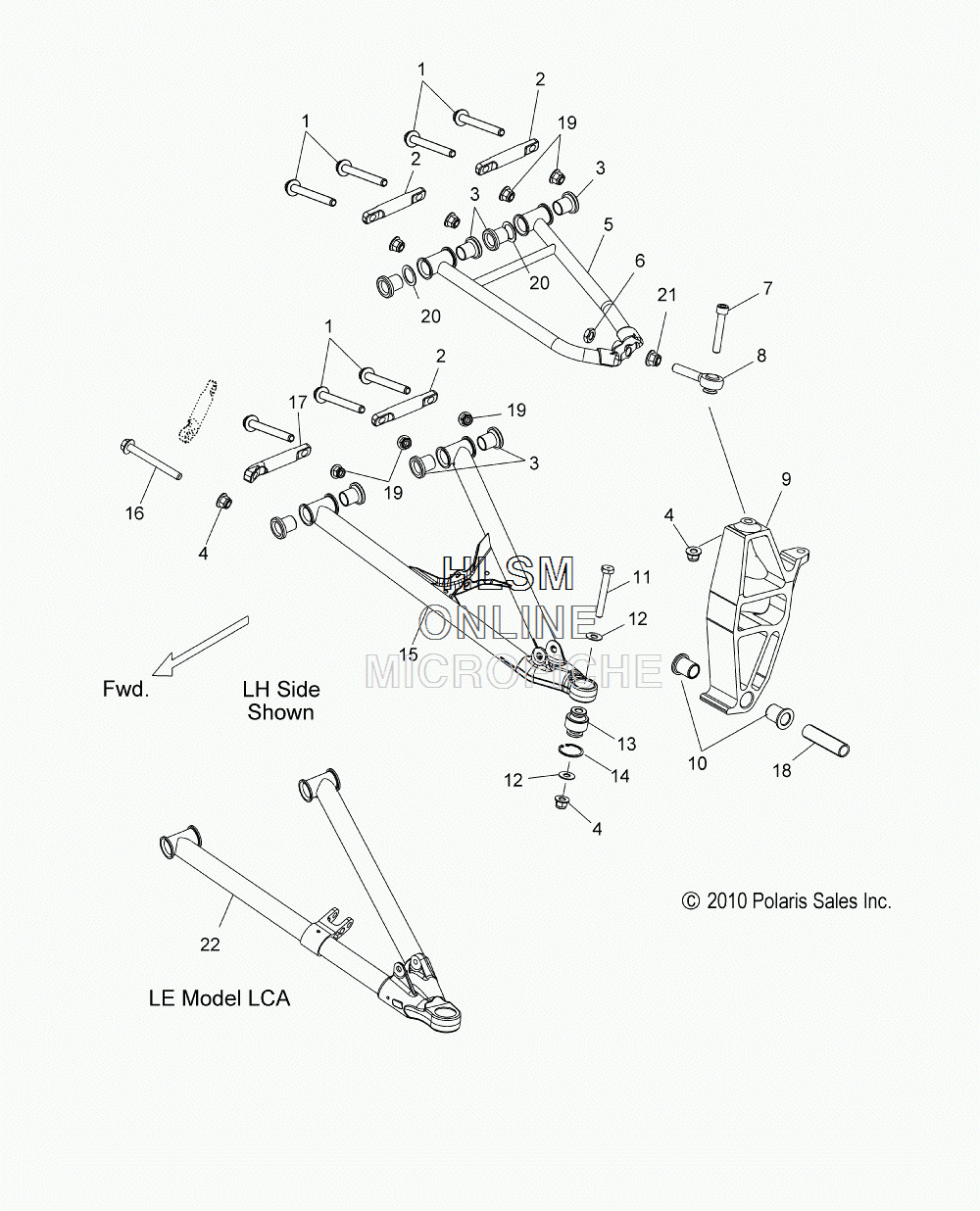

CONTROL ARMS W/SPINDLE для Polaris 800 RMK 155 LE [S15CC8] - 2015 года выпуска

№

Артикул

Название
1

7519204 STUD, WHEEL

STUD, WHEEL
2

5137700 SHAFT, PIVOT

SHAFT, PIVOT
3

5437539 BUSHING, PIVOT

BUSHING, PIVOT
4

7547423 NUT, NYLOK

NUT, NYLOK
5

2204930-293 KIT, UPPER CONTROL ARM, LEFT HAND, INDY RED (INCL. 2-4,6,8,20,21)

KIT, UPPER CONTROL ARM, LEFT HAND, INDY RED (INCL. 2-4,6,8,20,21)
5

2204931-293 KIT, UPPER CONTROL ARM, RIGHT HAND, INDY RED (INCL. 2-4,6,8,20,21)

KIT, UPPER CONTROL ARM, RIGHT HAND, INDY RED (INCL. 2-4,6,8,20,21)
6

7547490 NUT, FLANGE

NUT, FLANGE
7

7519246 SCREW

SCREW
8

7061178 ROD END

ROD END
9

1823897-293 ASM., SPINDLE, LEFT HAND, METRIC, INDY RED (INCL. 10)

ASM., SPINDLE, LEFT HAND, METRIC, INDY RED (INCL. 10)
9

1823898-293 ASM., SPINDLE, RIGHT HAND, METRIC, INDY RED (INCL. 10)

ASM., SPINDLE, RIGHT HAND, METRIC, INDY RED (INCL. 10)
10

5438460 BUSHING, SKI PIVOT

BUSHING, SKI PIVOT
11

7519015 SCREW

SCREW
12

7556545 WASHER

WASHER
13

2204229 KIT, SPHERICAL BEARING, LOWER

KIT, SPHERICAL BEARING, LOWER
14

7710539 RING, RETAINING

RING, RETAINING
16

7518917 SCREW

SCREW
17

5137701 SHAFT, PIVOT, LOWER CONTROL ARM, FRONT

SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
18

5136910 BUSHING

BUSHING
19

7547332 NUT, FLANGE, NYLOK

NUT, FLANGE, NYLOK
20

7571605 WASHER, SPRING

WASHER, SPRING
21

7547490 NUT

NUT
22

2205367-458 KIT, LOWER CONTROL ARM, LEFT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)

KIT, LOWER CONTROL ARM, LEFT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)
22

2205368-458 KIT, LOWER CONTROL ARM, RIGHT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)

KIT, LOWER CONTROL ARM, RIGHT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)
22

2205367-293 KIT, LOWER CONTROL ARM, LEFT HAND, INDY RED (INCL. 2-4,13,14,17,19)

KIT, LOWER CONTROL ARM, LEFT HAND, INDY RED (INCL. 2-4,13,14,17,19)
22

2205368-293 KIT, LOWER CONTROL ARM, RIGHT HAND, INDY RED (INCL. 2-4,13,14,17,19)

KIT, LOWER CONTROL ARM, RIGHT HAND, INDY RED (INCL. 2-4,13,14,17,19)
