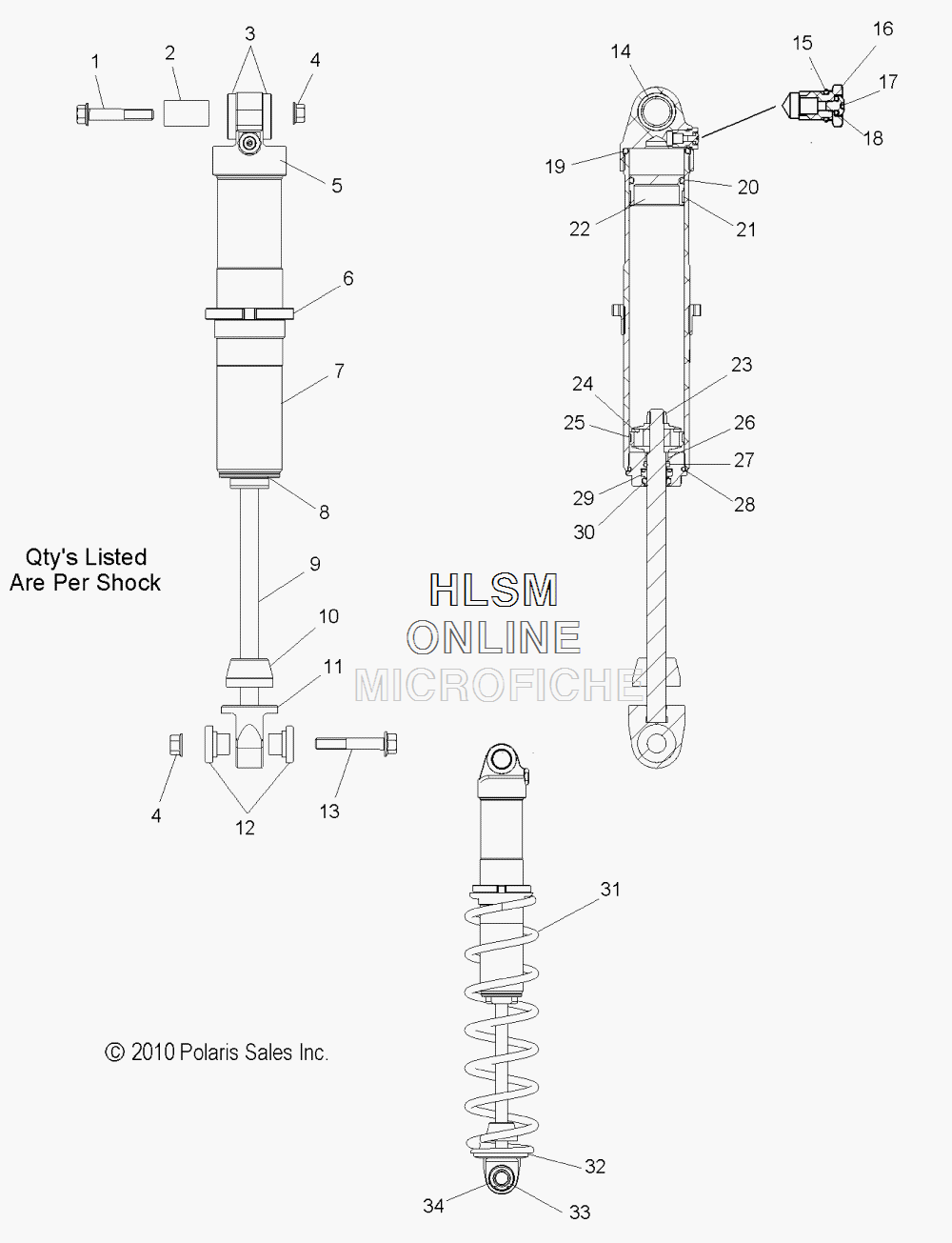

SUSPENSION - IFS SHOCK (7043835) для Polaris 800 PRO RMK 155 [S15CG8] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7043835 SHOCK, WALKER EVANS, IFS
    SHOCK, WALKER EVANS, IFS
  • 1
    7518941 SCREW
    SCREW
  • 2
    5137360 BUSHING
    BUSHING
  • 3
    1800406 BUSHING
    BUSHING
  • 4
    7547423 NUT
    NUT
  • 5
    1800407 LOOP, BODY
    LOOP, BODY
  • 6
    1800046 RETAINER, SPRING
    RETAINER, SPRING
  • 7
    1800539 BODY
    BODY
  • 8
    1800545 ASM., SEAL HEAD, SHORT
    ASM., SEAL HEAD, SHORT
  • 9
    1800541 SHAFT, IFS
    SHAFT, IFS
  • 10
    1800462 BUMPER
    BUMPER
  • 11
    1800540 LOOP, SHAFT, SHORT
    LOOP, SHAFT, SHORT
  • 12
    5138124 SPACER
    SPACER
  • 13
    7519245 SCREW
    SCREW
  • 14
    1800405 SLEEVE
    SLEEVE
  • 15
    1800215 O-RING
    O-RING
  • 16
    1800329 NEEDLE VALVE
    NEEDLE VALVE
  • 17
    1800109 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 18
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 19
    1800030 O-RING, BODY
    O-RING, BODY
  • 20
    1800028 O-RING, RESERVOIR
    O-RING, RESERVOIR
  • 21
    1800297 WEAR BAND, TEFLON
    WEAR BAND, TEFLON
  • 22
    1800348 PISTON, RES. IFP
    PISTON, RES. IFP
  • 23
    1800031 NUT, CRIMP
    NUT, CRIMP
  • 24
    1800542 PISTON, THIN
    PISTON, THIN
  • 25
    1800543 WEAR BAND, NARROW
    WEAR BAND, NARROW
  • 26
    1800544 BUSHING, SHAFT
    BUSHING, SHAFT
  • 27
    1800095 O-RING
    O-RING
  • 28
    1800027 O-RING, BODY
    O-RING, BODY
  • 29
    1800294 SEAL, U-CUP
    SEAL, U-CUP
  • 30
    1800295 SEAL, WIPER
    SEAL, WIPER
  • 31
    7043460-133 SPRING, COMPRESSION, 100#, WHITE
    SPRING, COMPRESSION, 100#, WHITE
  • 31
    7043460-293 SPRING, COMPRESSION, 100#, RED
    SPRING, COMPRESSION, 100#, RED
  • 31
    7043460-458 SPRING, COMPRESSION, 100#, BLACK
    SPRING, COMPRESSION, 100#, BLACK
  • 31
    7043460-589 SPRING, COMPRESSION, 100#, ORANGE
    SPRING, COMPRESSION, 100#, ORANGE
  • 32
    1800116 RING, SPRING RETAINER
    RING, SPRING RETAINER
  • 33
    1800040 BEARING, END
    BEARING, END
  • 34
    1800041 SNAP RING, END BEARING
    SNAP RING, END BEARING
