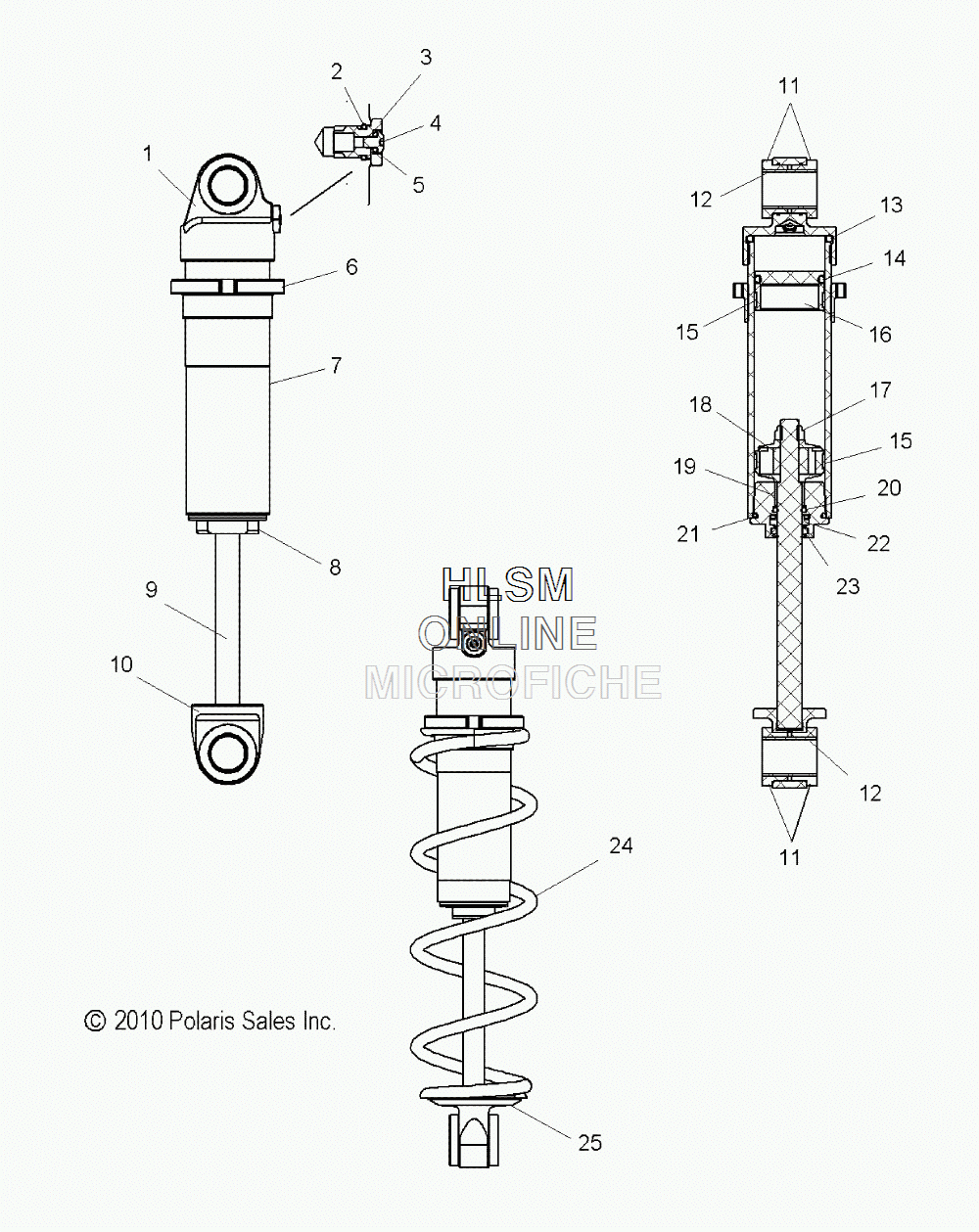

SUSPENSION - FRONT SHOCK TRACK (7043602) для Polaris 800 PRO RMK 155 [S15CG8] - 2015 года выпуска

  • №
    Артикул
    Название
  • --
    7044234 SHOCK, WALKER EVANS, COIL OVER (BLACK)
    SHOCK, WALKER EVANS, COIL OVER (BLACK)
  • --
    7043602 SHOCK, WALKER EVANS, COIL-OVER (CLEAR)
    SHOCK, WALKER EVANS, COIL-OVER (CLEAR)
  • 1
    1800407 LOOP, BODY
    LOOP, BODY
  • 2
    1800215 O-RING
    O-RING
  • 3
    1800329 NEEDLE VALVE
    NEEDLE VALVE
  • 4
    1800109 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 5
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 6
    1800046 RETAINER, SPRING
    RETAINER, SPRING
  • 7
    1800409 BODY
    BODY
  • 8
    1800403 ASM., SEAL HEAD
    ASM., SEAL HEAD
  • 9
    1800350 SHAFT
    SHAFT
  • 10
    1800408 LOOP, SHAFT
    LOOP, SHAFT
  • 11
    1800406 BUSHING
    BUSHING
  • 12
    1800405 SLEEVE
    SLEEVE
  • 13
    1800030 O-RING, BODY
    O-RING, BODY
  • 14
    1800028 O-RING, RESERVOIR
    O-RING, RESERVOIR
  • 15
    1800297 WEAR BAND, TEFLON
    WEAR BAND, TEFLON
  • 16
    1800348 PISTON, RES. IFP
    PISTON, RES. IFP
  • 17
    1800031 NUT, CRIMP
    NUT, CRIMP
  • 18
    1800001 PISTON
    PISTON
  • 19
    1800292 BUSHING, SHAFT
    BUSHING, SHAFT
  • 20
    1800095 O-RING
    O-RING
  • 21
    1800027 O-RING, BODY
    O-RING, BODY
  • 22
    1800294 SEAL, U-CUP
    SEAL, U-CUP
  • 23
    1800295 SEAL, WIPER
    SEAL, WIPER
  • 24
    7043678-133 SPRING, COMPRESSION, 150#, BRIGHT WHITE
    SPRING, COMPRESSION, 150#, BRIGHT WHITE
  • 24
    7043678-293 SPRING, COMPRESSION, 150#, RED
    SPRING, COMPRESSION, 150#, RED
  • 24
    7043678-458 SPRING, COMPRESSION, 150#, BLACK
    SPRING, COMPRESSION, 150#, BLACK
  • 25
    1800116 RING, SPRING RETAINER
    RING, SPRING RETAINER
