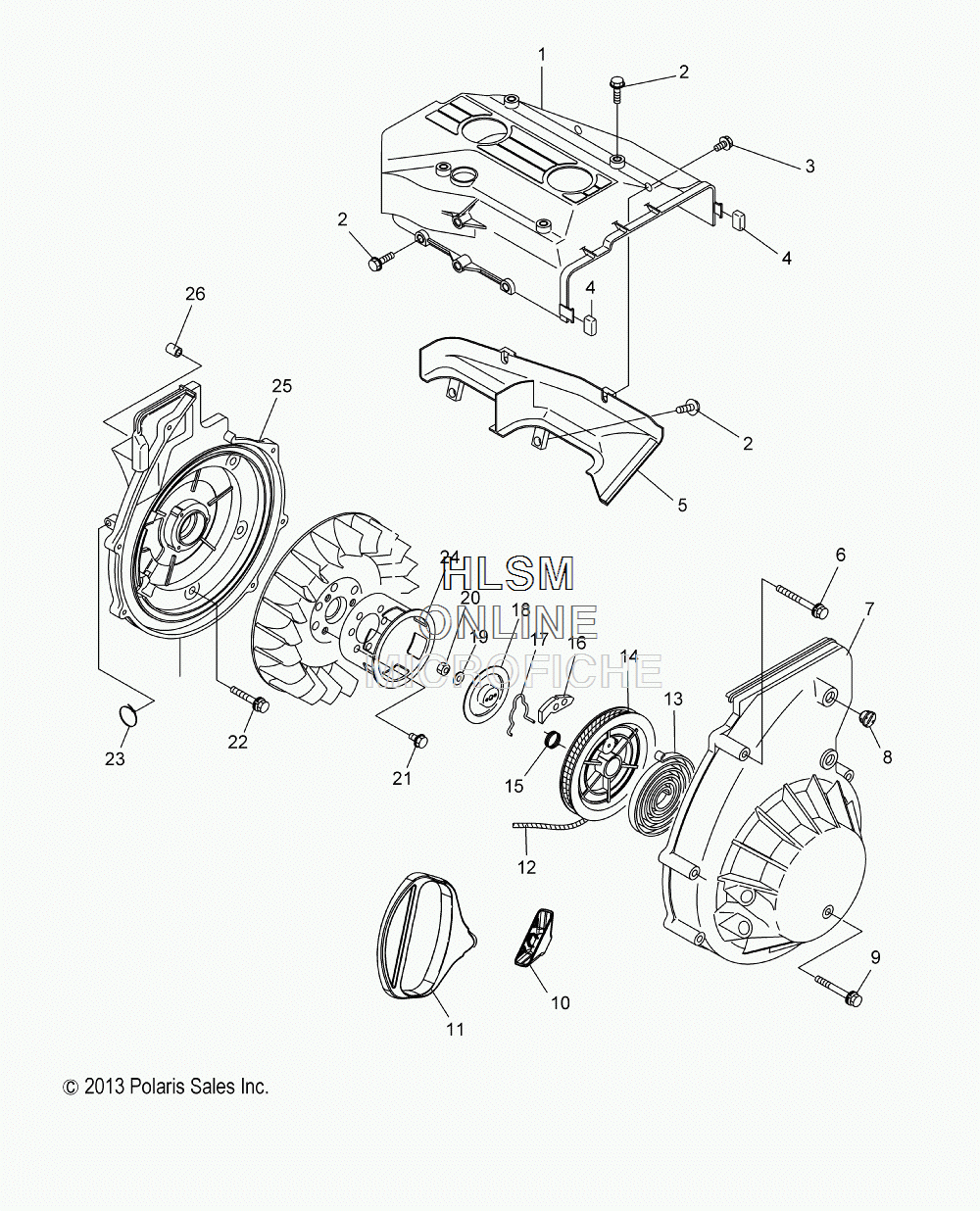

RECOIL STARTER W/BLOWER HOUSING для Polaris 550 INDY 144 [S15CR5BSA] - 2015 года выпуска`
-
№АртикулНазвание
-
13090387 ASM., BAFFLE, CYLINDER, 1ASM., BAFFLE, CYLINDER, 1
-
23084566 BOLT, FLANGEBOLT, FLANGE
-
33085693 BOLT, FLANGEBOLT, FLANGE
-
43085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
53085691 CYLINDER, BAFFLE 2CYLINDER, BAFFLE 2
-
63083550 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
73090179 ASM., STARTER, RECOIL (INCL. 12-20)ASM., STARTER, RECOIL (INCL. 12-20)
-
73090194 STARTER, CASE COMPLETESTARTER, CASE COMPLETE
-
83086792 PLUG, RUBBERPLUG, RUBBER
-
93082030 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
105414288 ISOLATORISOLATOR
-
115435154-070 HANDLE, RECOIL, BLACKHANDLE, RECOIL, BLACK
-
122870621 ROPE, STARTER (100 FT.)ROPE, STARTER (100 FT.)
-
133083376 SPRING, SPIRALSPRING, SPIRAL
-
143083377 ASM., REELASM., REEL
-
153083463 SPRING, RETURNSPRING, RETURN
-
163087207 RATCHETRATCHET
-
173083379 SPRING, FRICTIONSPRING, FRICTION
-
183090195 PLATE, FRICTIONPLATE, FRICTION
-
193090250 WASHERWASHER
-
203083381 NUT, FLANGENUT, FLANGE
-
213085688 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
223084225 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
233084823 BAND, WIREBAND, WIRE
-
243087181 PULLEY, STARTINGPULLEY, STARTING
-
253087020 HOUSING, BLOWERHOUSING, BLOWER
-
263084857 PIN, STRAIGHTPIN, STRAIGHT
