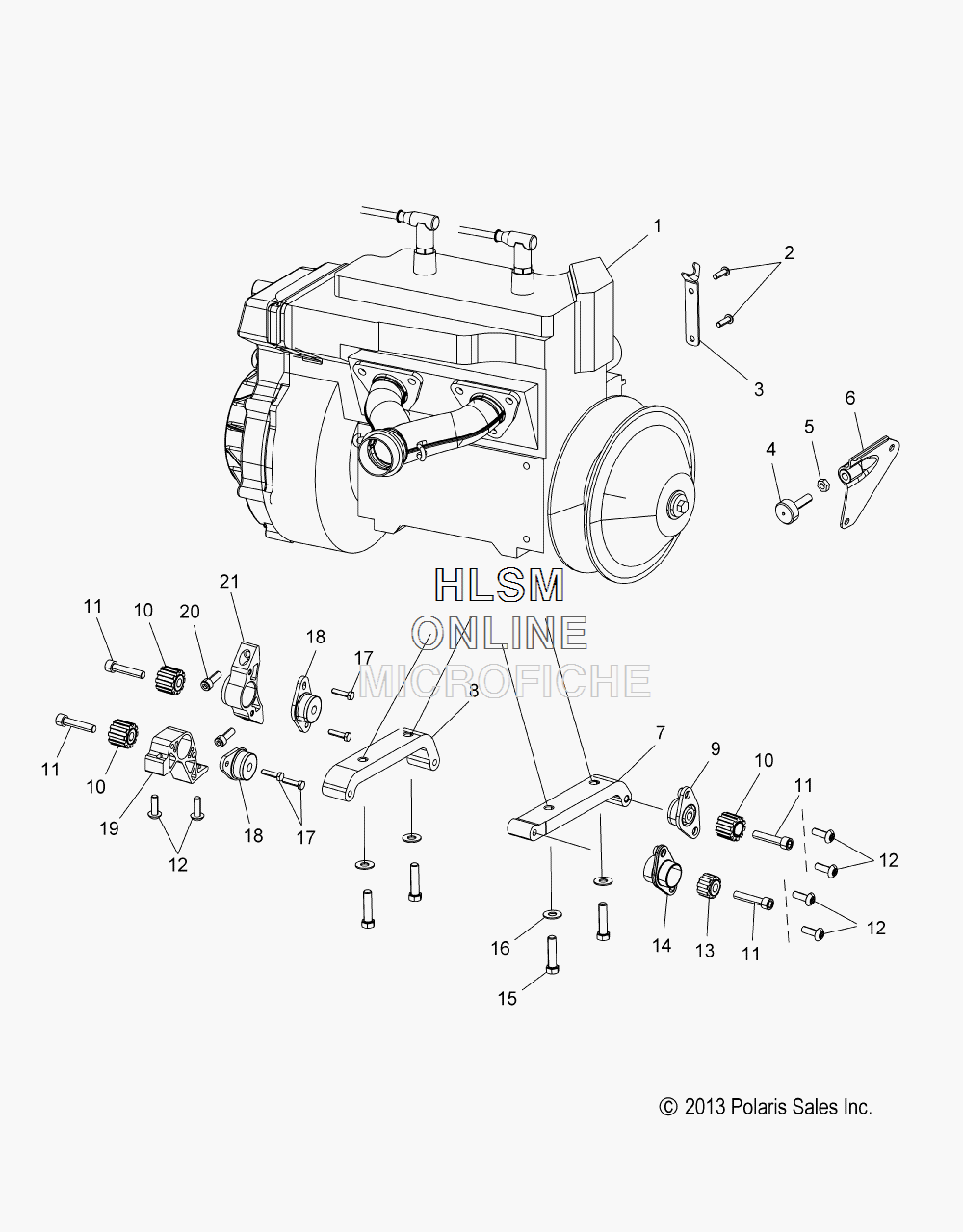

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 550 INDY 144 [S15CR5BSA] - 2015 года выпуска
-
№АртикулНазвание
-
13090317 KIT, SHORT BLOCKKIT, SHORT BLOCK
-
27518616 SCREWSCREW
-
35255060 BRKT., AIR BOX MOUNTBRKT., AIR BOX MOUNT
-
43021354 TORQUE STOP, COURSETORQUE STOP, COURSE
-
57542414 NUTNUT
-
61018252 TORQUE STOPTORQUE STOP
-
75137722 STRAP, ENGINE, LEFT HANDSTRAP, ENGINE, LEFT HAND
-
85137723 STRAP, ENGINE, RIGHT HANDSTRAP, ENGINE, RIGHT HAND
-
93022410 MOUNT, ENGINE, PTO REARMOUNT, ENGINE, PTO REAR
-
103022409 MOUNT, ENGINE INSERT, RADMOUNT, ENGINE INSERT, RAD
-
117519334 SCREWSCREW
-
127519070 SCREWSCREW
-
133022426 MOUNT, ENGINE INSERT, RAD, SMALLMOUNT, ENGINE INSERT, RAD, SMALL
-
141019584 ASM., MOUNT, ENGINEASM., MOUNT, ENGINE
-
157517442 SCREWSCREW
-
167555883 WASHERWASHER
-
177516823 SCREWSCREW
-
183022408 MOUNT, ENGINEMOUNT, ENGINE
-
191018398 ASM., MOUNT, ENGINE, FRONTASM., MOUNT, ENGINE, FRONT
-
207519010 SCREWSCREW
-
215137116 MOUNT, ENGINE, REARMOUNT, ENGINE, REAR
