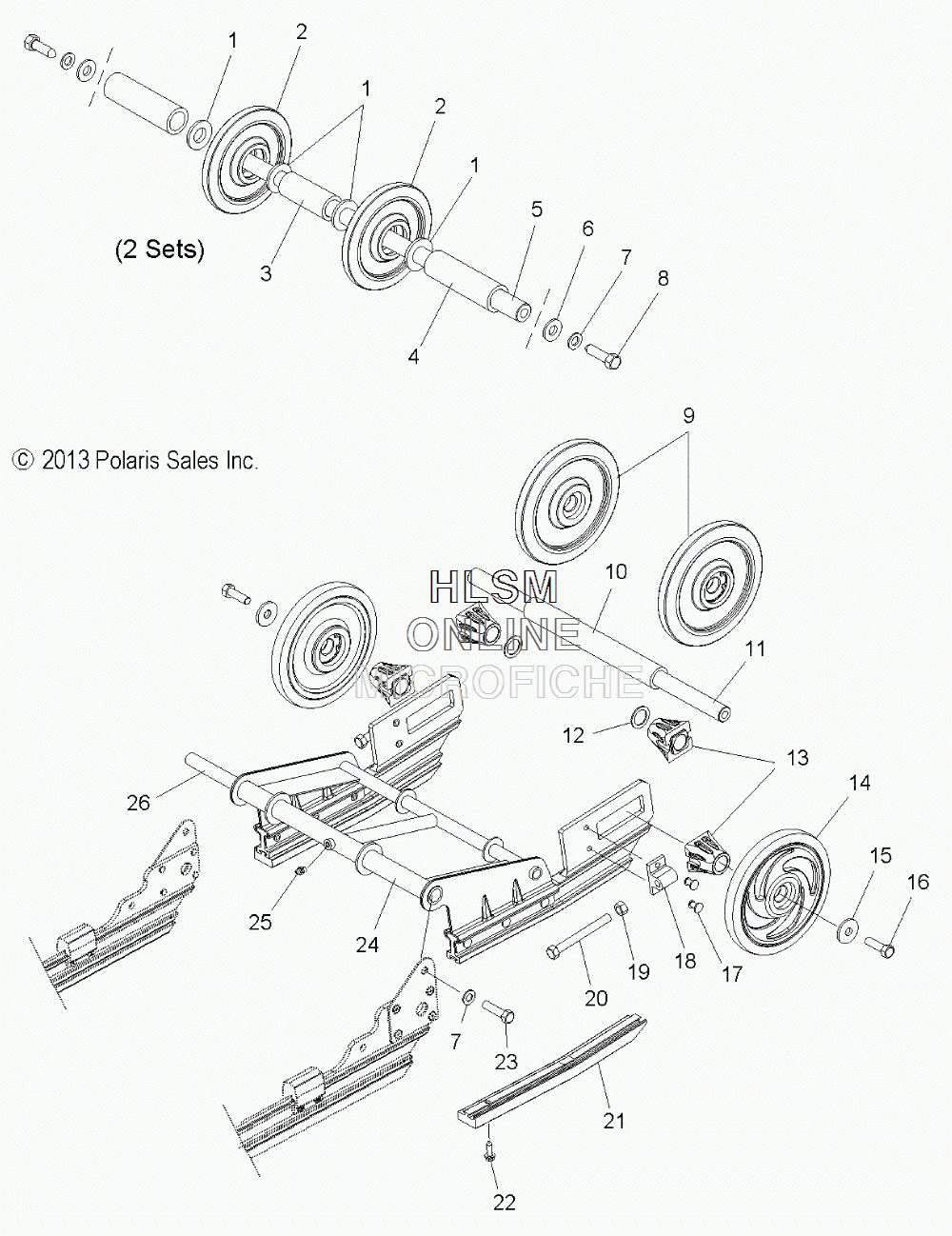

SUSPENSION - EXTENSION для Polaris WIDETRAK LX INTL [S14SU4BEL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7555726 WASHER, FLAT
    WASHER, FLAT
  • 2
    1543021 ASM., WHEEL, CARRIER (INCL. INSERTS)
    ASM., WHEEL, CARRIER (INCL. INSERTS)
  • 2
    5430723 INSERT, WHEEL, SMALL
    INSERT, WHEEL, SMALL
  • 2
    5431420 INSERT, WHEEL, LARGE
    INSERT, WHEEL, LARGE
  • 3
    5333020-067 SPACER
    SPACER
  • 4
    5333019-067 SPACER
    SPACER
  • 5
    5020836 SHAFT, MOUNTING, CARRIER
    SHAFT, MOUNTING, CARRIER
  • 6
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 7
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7517435 SCREW
    SCREW
  • 9
    1594087 ASM., WHEEL
    ASM., WHEEL
  • 9
    7710444 RING, RETAINING
    RING, RETAINING
  • 9
    3514384 BEARING
    BEARING
  • 10
    5333523 SPACER, IDLER
    SPACER, IDLER
  • 11
    5020879 SHAFT, IDLER
    SHAFT, IDLER
  • 12
    7555918 BUSHING
    BUSHING
  • 13
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 14
    1594083-244 ASM., IDLER WHEEL, SCROLLED, SILVER
    ASM., IDLER WHEEL, SCROLLED, SILVER
  • 14
    7710444 RING, RETAINING
    RING, RETAINING
  • 14
    3514384 BEARING
    BEARING
  • 15
    7556130 WASHER, BELLE
    WASHER, BELLE
  • 16
    7517731 BOLT
    BOLT
  • 17
    7621501 RIVET
    RIVET
  • 18
    5130530 BLOCK, IDLER BOLT ADJUST
    BLOCK, IDLER BOLT ADJUST
  • 19
    7542404 NUT
    NUT
  • 20
    7515459 SCREW
    SCREW
  • 21
    5521452 HI-FAX, WHITE
    HI-FAX, WHITE
  • 22
    7512225 SCREW
    SCREW
  • 23
    7518005 SCREW
    SCREW
  • 24
    1543214 ASM., RAIL, ARTICULATED (INCL. 17,18)
    ASM., RAIL, ARTICULATED (INCL. 17,18)
  • 25
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 26
    5020725 SHAFT, PIVOT ARM
    SHAFT, PIVOT ARM
