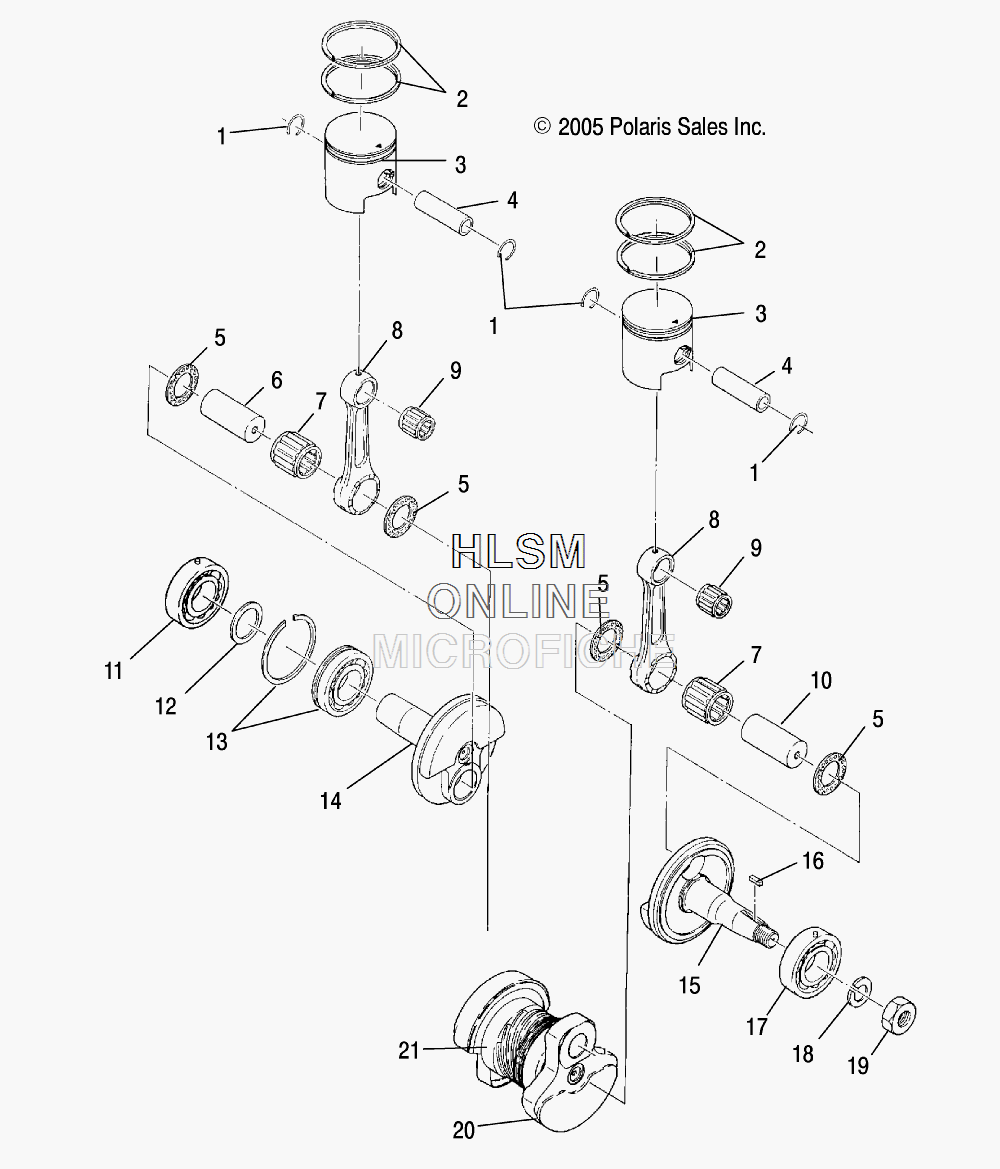

CRANKSHAFT ASSY. W/ PISTON для Polaris WIDETRAK LX INTL [S14SU4BEL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3083839 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 2
    3084342 RING, PISTON, STANDARD
    RING, PISTON, STANDARD
  • 2
    3084343 RING, PISTON, 0.25 O/S
    RING, PISTON, 0.25 O/S
  • 2
    3084344 RING, PISTON, 0.50 O/S
    RING, PISTON, 0.50 O/S
  • 3
    3085458 PISTON, STANDARD (INCL. 1)
    PISTON, STANDARD (INCL. 1)
  • 3
    3090002 PISTON, 0.25 O/S (INCL. 1)
    PISTON, 0.25 O/S (INCL. 1)
  • 3
    3090003 PISTON, 0.50 O/S (INCL. 1)
    PISTON, 0.50 O/S (INCL. 1)
  • 4
    3083858 PIN, PISTON
    PIN, PISTON
  • 5
    3083277 SPACER, CRANK PIN
    SPACER, CRANK PIN
  • 6
    3083456 CRANK PIN 2
    CRANK PIN 2
  • 7
    3085628 BEARING, END, LARGE
    BEARING, END, LARGE
  • 8
    3083252 ROD, CONNECTING
    ROD, CONNECTING
  • 9
    3083216 BEARING, END, SMALL
    BEARING, END, SMALL
  • 10
    3083233 CRANK PIN 1
    CRANK PIN 1
  • 11
    3085205 BEARING, BALL
    BEARING, BALL
  • 12
    3085203 SPACER
    SPACER
  • 13
    3085204 BEARING, BALL
    BEARING, BALL
  • 14
    3089531 CRANKSHAFT 3, PTO SIDE
    CRANKSHAFT 3, PTO SIDE
  • 15
    3089530 ASM., CRANKSHAFT (INCL. 5-8,10-15,17,21,20)
    ASM., CRANKSHAFT (INCL. 5-8,10-15,17,21,20)
  • 15
    3086835 CRANKSHAFT 1, MAG SIDE
    CRANKSHAFT 1, MAG SIDE
  • 16
    3081543 KEY, WOODRUFF
    KEY, WOODRUFF
  • 17
    3086878 BEARING, BALL
    BEARING, BALL
  • 18
    3083094 WASHER, SPRING
    WASHER, SPRING
  • 19
    3083093 NUT
    NUT
  • 20
    3083713 ASM., CRANKSHAFT 2 (INCL. 6,10)
    ASM., CRANKSHAFT 2 (INCL. 6,10)
  • 21
    3084601 BEARING, BALL
    BEARING, BALL
