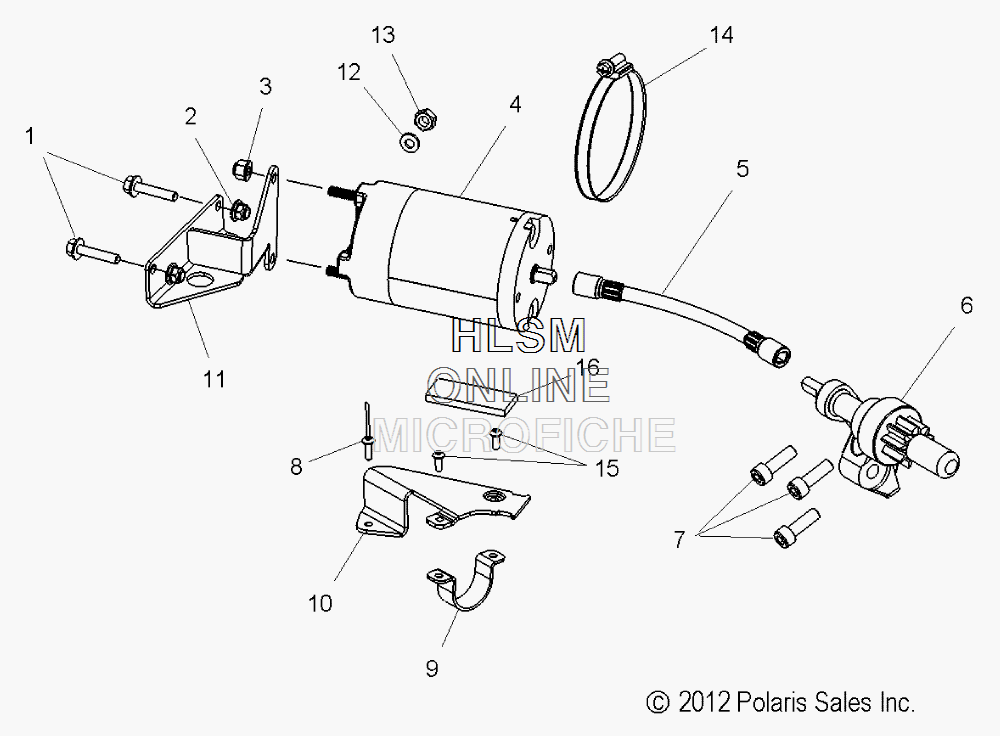

STARTING MOTOR для Polaris 800 RMK ASSAULT 163 [S14CY8] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7518993 SCREW
    SCREW
  • 2
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 3
    7542153 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 4
    4012729 MOTOR, STARTER
    MOTOR, STARTER
  • 5
    6230404 SHAFT, FLEX, STARTER
    SHAFT, FLEX, STARTER
  • 6
    1204372 ASM., PINION/BRACKET
    ASM., PINION/BRACKET
  • 7
    7518699 SCREW
    SCREW
  • 8
    7661637 RIVET
    RIVET
  • 9
    1018033 ASM., BRACKET, ELECTRIC START/UCA TUBE, LOWER
    ASM., BRACKET, ELECTRIC START/UCA TUBE, LOWER
  • 10
    5254790 BRACKET, ELECTRIC START/UCA TUBE, UPPER
    BRACKET, ELECTRIC START/UCA TUBE, UPPER
  • 11
    5252966 BRACKET, ELECTRIC START/CLIP
    BRACKET, ELECTRIC START/CLIP
  • 12
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 13
    7542105 NUT
    NUT
  • 14
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 15
    7518656 BOLT
    BOLT
  • 16
    5810947 FOAM, SEAL
    FOAM, SEAL
