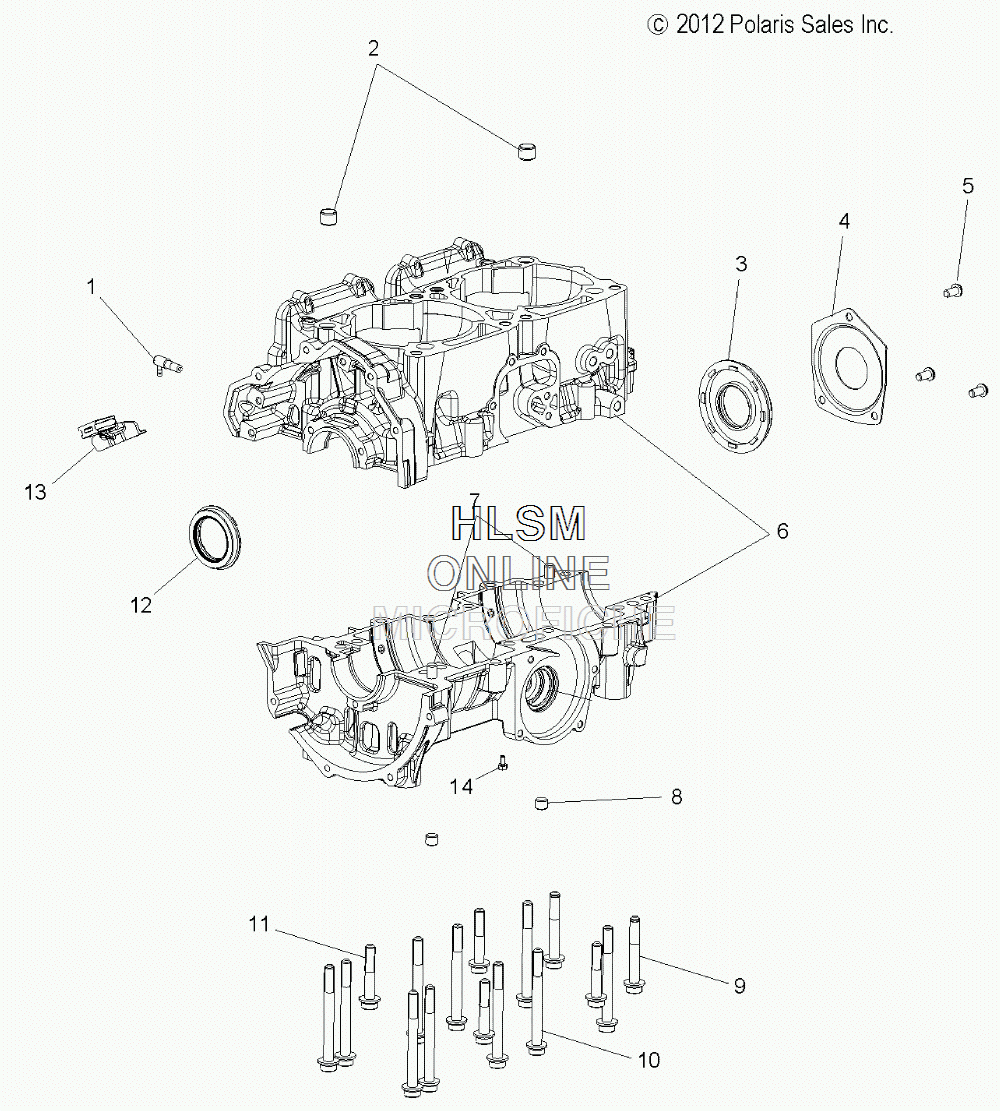

CRANKCASE ASSEMBLY для Polaris 800 RMK ASSAULT 163 [S14CY8] - 2014 года выпуска`
-
№АртикулНазвание
-
17051020 VALVE, CHECKVALVE, CHECK
-
27663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
35411394 SEAL, FLANGEDSEAL, FLANGED
-
45251374 GUARD, CRANK SEALGUARD, CRANK SEAL
-
57519063 SCREWSCREW
-
62205174 KIT, CRANKCASE (INCL. 1,2,7-11,14)KIT, CRANKCASE (INCL. 1,2,7-11,14)
-
77663001 PIN, DOWELPIN, DOWEL
-
87052337 PLUGPLUG
-
97517785 BOLT, 55MMBOLT, 55MM
-
107517784 BOLT, 80MMBOLT, 80MM
-
117517786 BOLT, 45MMBOLT, 45MM
-
125414096 SEAL, FLANGEDSEAL, FLANGED
-
135437349 RETAINER, WIRE, V8 SDIRETAINER, WIRE, V8 SDI
-
147517577 SCREWSCREW
