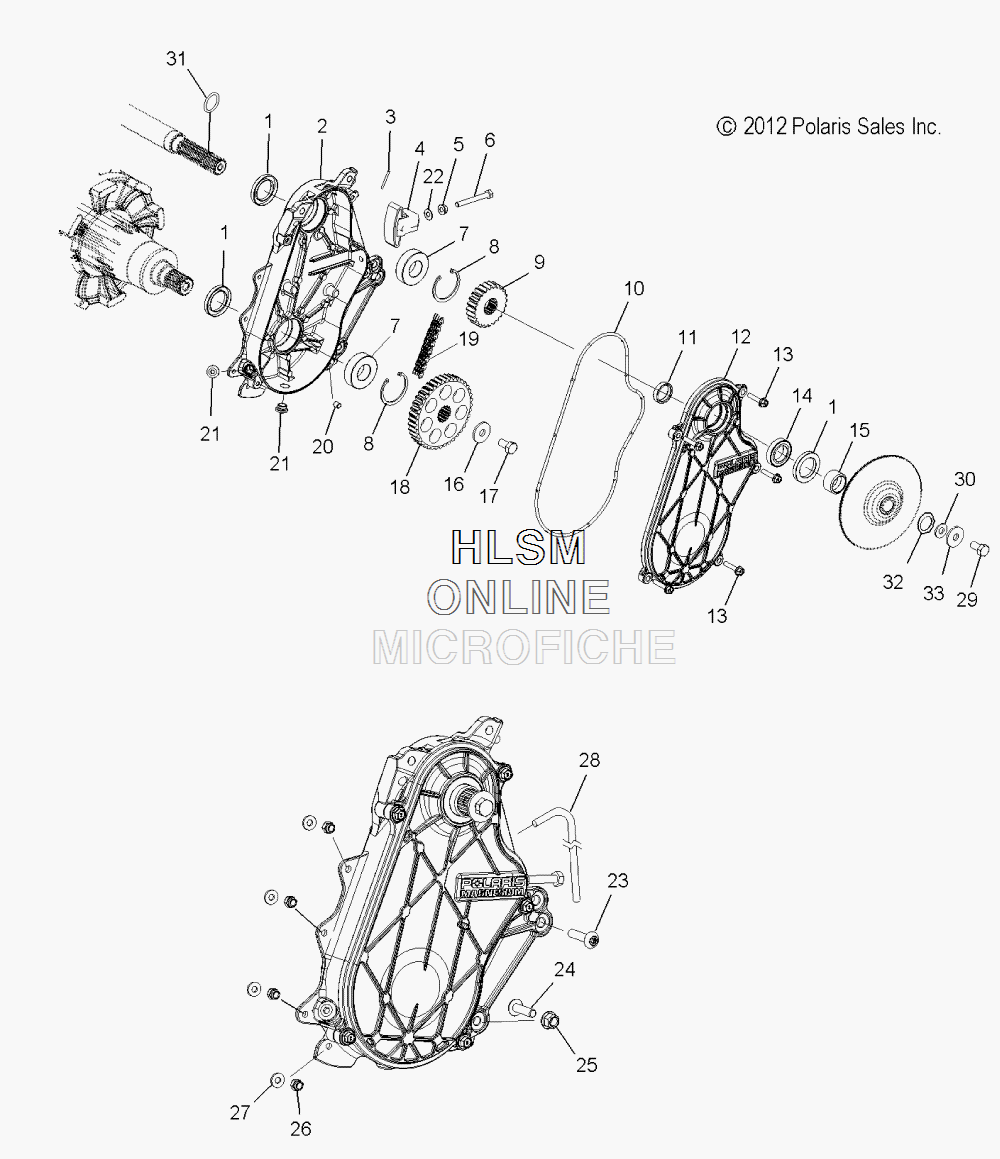

CHAINCASE ASSEMBLY для Polaris 800 INDY SP ES [S14CP8G] - 2014 года выпуска`
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
25138552 CHAINCASECHAINCASE
-
35334764 TUBE, VENTTUBE, VENT
-
41332427 ASM., TIGHTENER, CHAINASM., TIGHTENER, CHAIN
-
57547017 NUT, HEXNUT, HEX
-
67519587 SCREWSCREW
-
73514309 BEARING, BALLBEARING, BALL
-
87718406 RING, RETAININGRING, RETAINING
-
93221099 SPROCKET, 23T, 3/4WSPROCKET, 23T, 3/4W
-
105813295 GASKET, CHAINCASE COVERGASKET, CHAINCASE COVER
-
115137587 SLEEVE, CHAINCASESLEEVE, CHAINCASE
-
121332659 ASM., CHAINCASE COVERASM., CHAINCASE COVER
-
137518993 SCREWSCREW
-
143514643 BEARING, BALLBEARING, BALL
-
155136533 SLEEVE, SEALSLEEVE, SEAL
-
167556130 WASHER, BELLEWASHER, BELLE
-
177519004 SCREWSCREW
-
183222108 SPROCKET, 39TSPROCKET, 39T
-
193221110 CHAIN, 72P, 3/4WCHAIN, 72P, 3/4W
-
207663007 DOWEL, HOLLOWDOWEL, HOLLOW
-
217052458 PLUG, MAGNETICPLUG, MAGNETIC
-
227556340 WASHER, THREAD SEALWASHER, THREAD SEAL
-
237519049 SCREWSCREW
-
247518953 SCREWSCREW
-
257547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
267547505 NUT, NYLOKNUT, NYLOK
-
277556588 WASHERWASHER
-
288450061-600 LINE, OIL, 600 CM, SERVICELINE, OIL, 600 CM, SERVICE
-
297518760 BOLTBOLT
-
307556556 WASHER, FLATWASHER, FLAT
-
315413563 O-RINGO-RING
-
327556063 WASHER, WAVEWASHER, WAVE
-
337556563 WASHERWASHER
