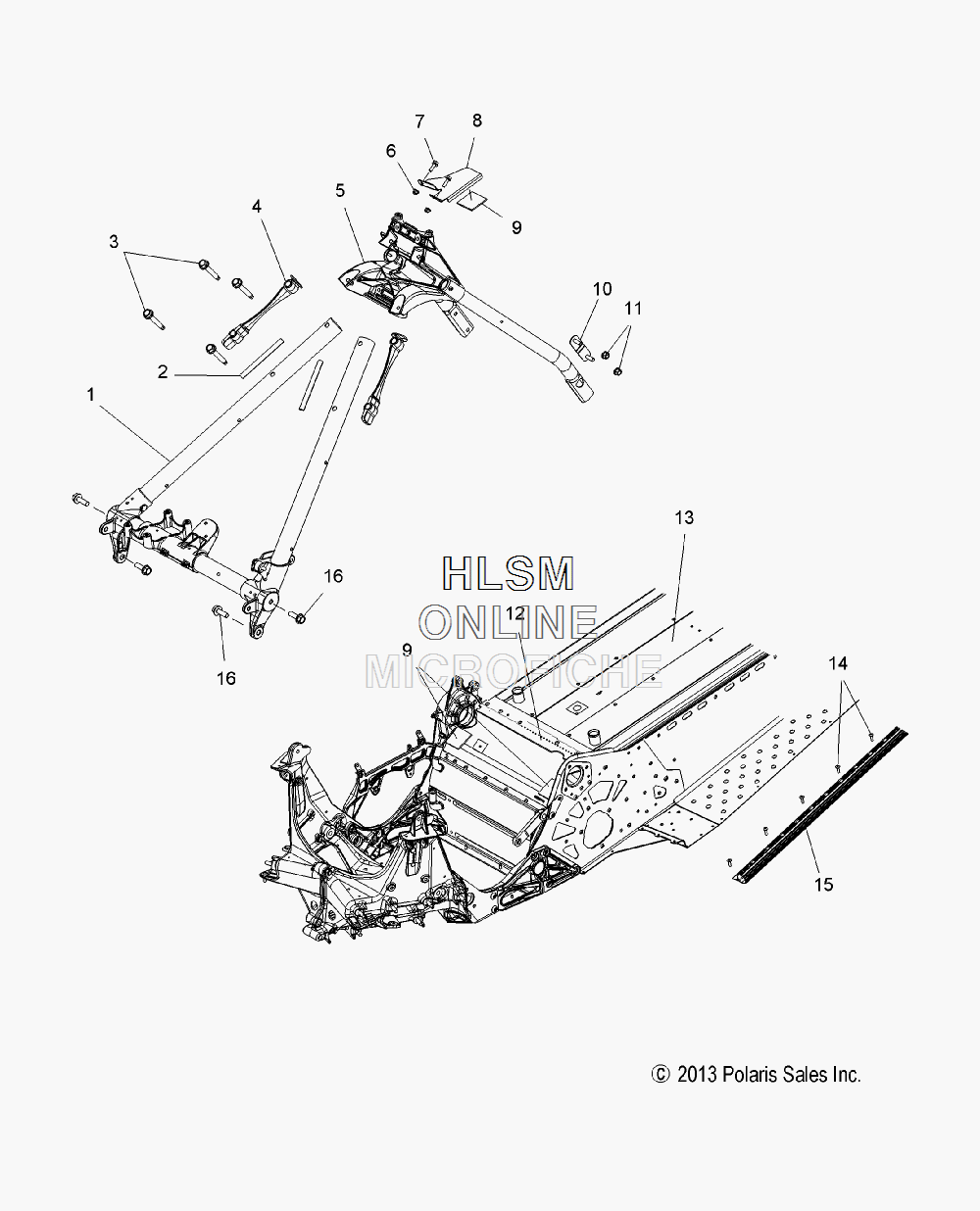

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 INDY SP ES [S14CP8G] - 2014 года выпуска`
-
№АртикулНазвание
-
11019548 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
25521697-350 SEAL, BULB (BULK SVC)SEAL, BULB (BULK SVC)
-
37519245 SCREWSCREW
-
45632200 SPACER, TUBE CASTSPACER, TUBE CAST
-
51018183 ASM., FRAME, TUBULAR, REAR (INCL. 6-9)ASM., FRAME, TUBULAR, REAR (INCL. 6-9)
-
67547339 NUTNUT
-
77518613 BOLTBOLT
-
85254367 BRKT. FUEL TANKBRKT. FUEL TANK
-
95813593 PAD, 5X5 CMPAD, 5X5 CM
-
101018776 ASM., STUD PLATEASM., STUD PLATE
-
117547332 NUTNUT
-
125813752 PAD, 7.6X41CMPAD, 7.6X41CM
-
132205107-309 KIT, MY14 CHASSIS, 121 CONV., W/CC, NAT. (INCL. BULKHEAD)KIT, MY14 CHASSIS, 121 CONV., W/CC, NAT. (INCL. BULKHEAD)
-
131019547-309 ASM., TUNNEL, 121 CONV., NATURALASM., TUNNEL, 121 CONV., NATURAL
-
132205107-458 KIT, MY14 CHASSIS, 121 CONV., W/CC, MBLACK (INCL. BULKHEAD)KIT, MY14 CHASSIS, 121 CONV., W/CC, MBLACK (INCL. BULKHEAD)
-
131019547-458 ASM., TUNNEL, 121 CONV., MBLACKASM., TUNNEL, 121 CONV., MBLACK
-
147661637 RIVETRIVET
-
155137693 GRIPPER, TUNNEL LEFT HANDGRIPPER, TUNNEL LEFT HAND
-
155137694 GRIPPER, TUNNEL RIGHT HANDGRIPPER, TUNNEL RIGHT HAND
-
167519243 SCREWSCREW
