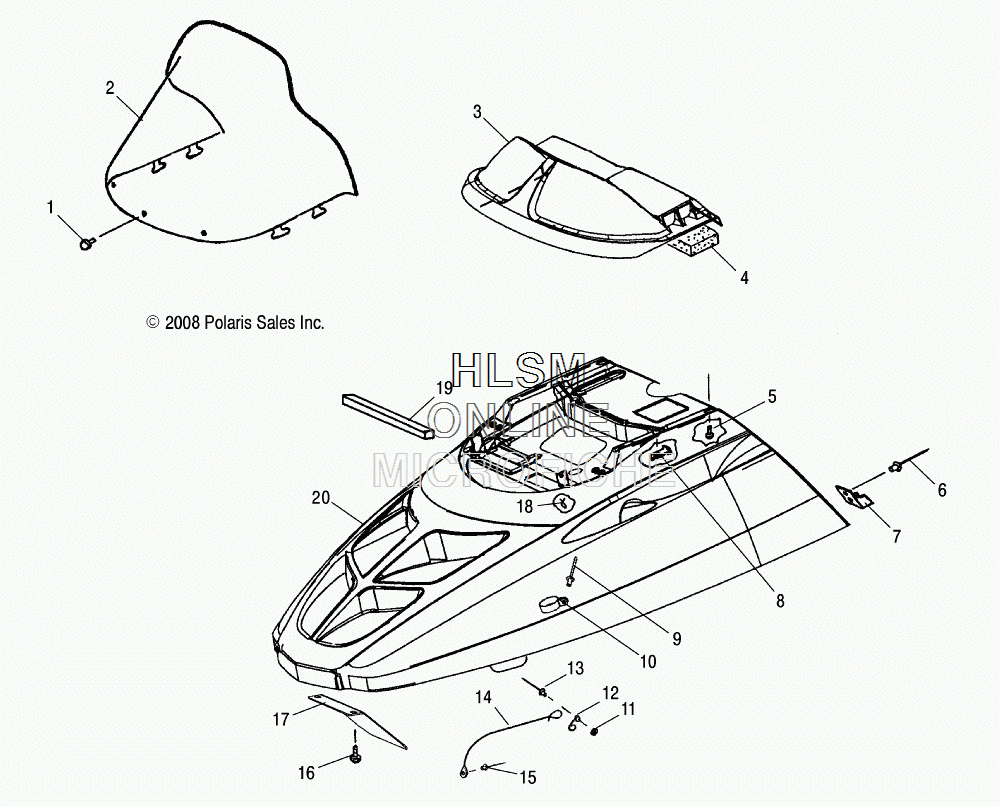

HOOD ASSEMBLY W/ WINDSHIELD для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска`
-
№АртикулНазвание
-
17621509 RIVETRIVET
-
25433168 WINDSHIELD, FLARED, CLEAR, 20 INCHWINDSHIELD, FLARED, CLEAR, 20 INCH
-
32632596 ASM., HOUSING, INSTRUMENT (INCL. WARNING DECALS)ASM., HOUSING, INSTRUMENT (INCL. WARNING DECALS)
-
45811625 FOAM, PRE-FILTERFOAM, PRE-FILTER
-
57517441 SCREWSCREW
-
67621334 RIVETRIVET
-
75430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
85410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
97621485 RIVETRIVET
-
107080833 CLAMPCLAMP
-
117555904 WASHERWASHER
-
125242893 CLIP, PIGTAILCLIP, PIGTAIL
-
137661084 RIVETRIVET
-
147081732 CABLE, HOODCABLE, HOOD
-
157621402 RIVETRIVET
-
167512068 SCREWSCREW
-
175243393 DEFLECTOR, AIRDEFLECTOR, AIR
-
187080886 CLIP, ROSEBUD, GRAYCLIP, ROSEBUD, GRAY
-
195811687 FOAM, SEAL, HEADLIGHTFOAM, SEAL, HEADLIGHT
-
202633394-599 ASM. HOOD, SVC, WHITE LIGHTNING (INCL. FOAM/FOIL)ASM. HOOD, SVC, WHITE LIGHTNING (INCL. FOAM/FOIL)
