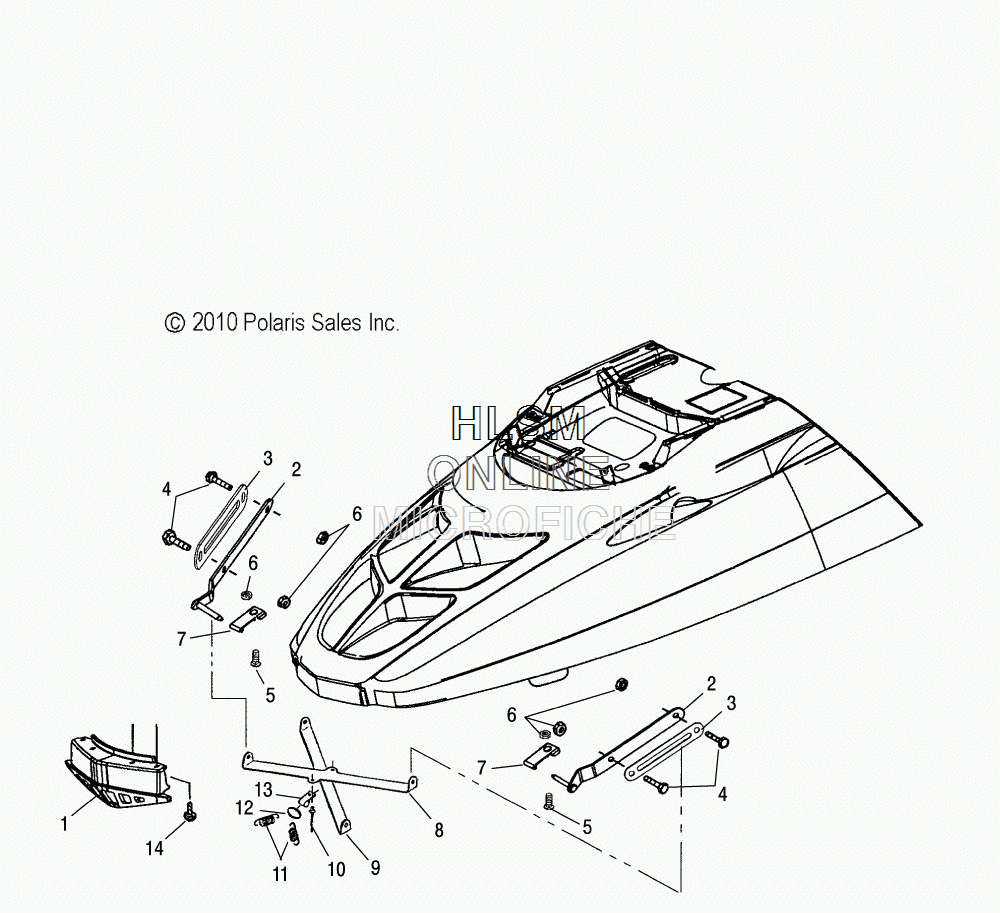

HOOD W/HINGE AND BRACE ASSEMBLY для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
15432931 SCREEN, FRONTSCREEN, FRONT
-
21012750 HINGE, UPPER, LEFT HANDHINGE, UPPER, LEFT HAND
-
21012751 HINGE, UPPER, RIGHT HANDHINGE, UPPER, RIGHT HAND
-
35242948 PLATE, BOLTPLATE, BOLT
-
47515184 SCREWSCREW
-
57512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
67542122 NUT, NYLOKNUT, NYLOK
-
75244395 PLATE, HINGE, LOWERPLATE, HINGE, LOWER
-
85242945 BRACE, HOOD, UPPERBRACE, HOOD, UPPER
-
95242946 BRACE, HOOD, LOWERBRACE, HOOD, LOWER
-
107661637 RIVETRIVET
-
117041732 SPRING, EXTENSIONSPRING, EXTENSION
-
127041760 RING, SPRING ATTACHMENTRING, SPRING ATTACHMENT
-
137080372 CLAMP, RETAINERCLAMP, RETAINER
-
147517441 SCREWSCREW
