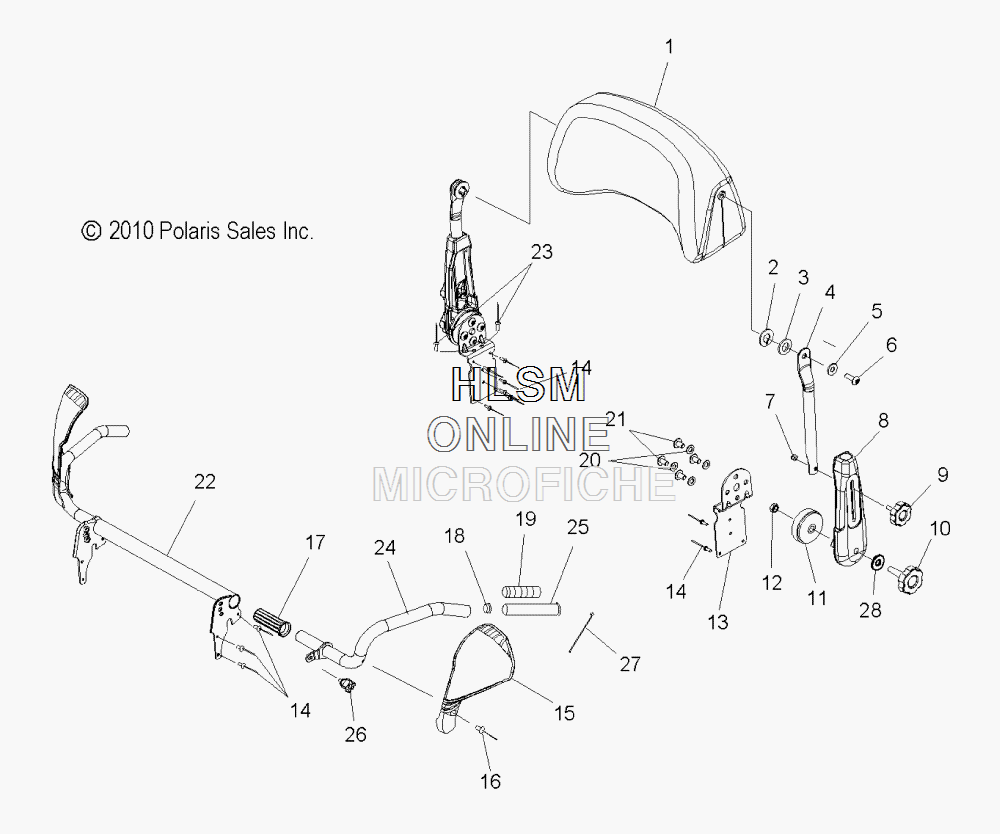

BACKREST W/GRAB HANDLE для Polaris TURBO IQ LXT [S12PT7FSL] - 2012 года выпуска`
-
№АртикулНазвание
-
12684997 ASM., BACKRESTASM., BACKREST
-
12684751 ASM., COVER, SEAT BACKASM., COVER, SEAT BACK
-
25250122 PLATE, BACKER W/NOTCHPLATE, BACKER W/NOTCH
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45250118-067 ARM, ADJUSTER, BRACKET, BLACKARM, ADJUSTER, BRACKET, BLACK
-
55136584 SPACER, BACKRESTSPACER, BACKREST
-
67510004 SCREWSCREW
-
77542324 NUT, NYLOKNUT, NYLOK
-
85436635 MOUNT, ADJUSTER ARMMOUNT, ADJUSTER ARM
-
97081484 KNOB, LARGE, LOW SHLDRKNOB, LARGE, LOW SHLDR
-
107081344 KNOB, LARGEKNOB, LARGE
-
115135462 CYLINDER, RATCHETCYLINDER, RATCHET
-
127547376 NUT, JAMNUT, JAM
-
135250119-067 BRACKET, MOUNT, BLACKBRACKET, MOUNT, BLACK
-
147661637 RIVETRIVET
-
155436778 DEFLECTOR, WIND, PASSENGER, LEFT HANDDEFLECTOR, WIND, PASSENGER, LEFT HAND
-
155436779 DEFLECTOR, WIND, PASSENGER, RIGHT HANDDEFLECTOR, WIND, PASSENGER, RIGHT HAND
-
167621472 RIVETRIVET
-
175435997 BUSHING, GRABHANDLEBUSHING, GRABHANDLE
-
185431096 PLUGPLUG
-
192410548 HEATER, GRIP, PASSENGERHEATER, GRIP, PASSENGER
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217518651 SCREWSCREW
-
221014908 TUBE, GRABHANDLETUBE, GRABHANDLE
-
237661130 RIVETRIVET
-
241015626-067 GRABHANDLE, TOURING, LEFT HANDGRABHANDLE, TOURING, LEFT HAND
-
241015627-067 GRABHANDLE, TOURING, RIGHT HANDGRABHANDLE, TOURING, RIGHT HAND
-
255435484-070 GRIP, HANDLEBAR, LONGGRIP, HANDLEBAR, LONG
-
262632756 ASM., KNOB, GRABHANDLEASM., KNOB, GRABHANDLE
-
277080138 CABLE TIECABLE TIE
-
285813629 SPACER, RUBBERSPACER, RUBBER
