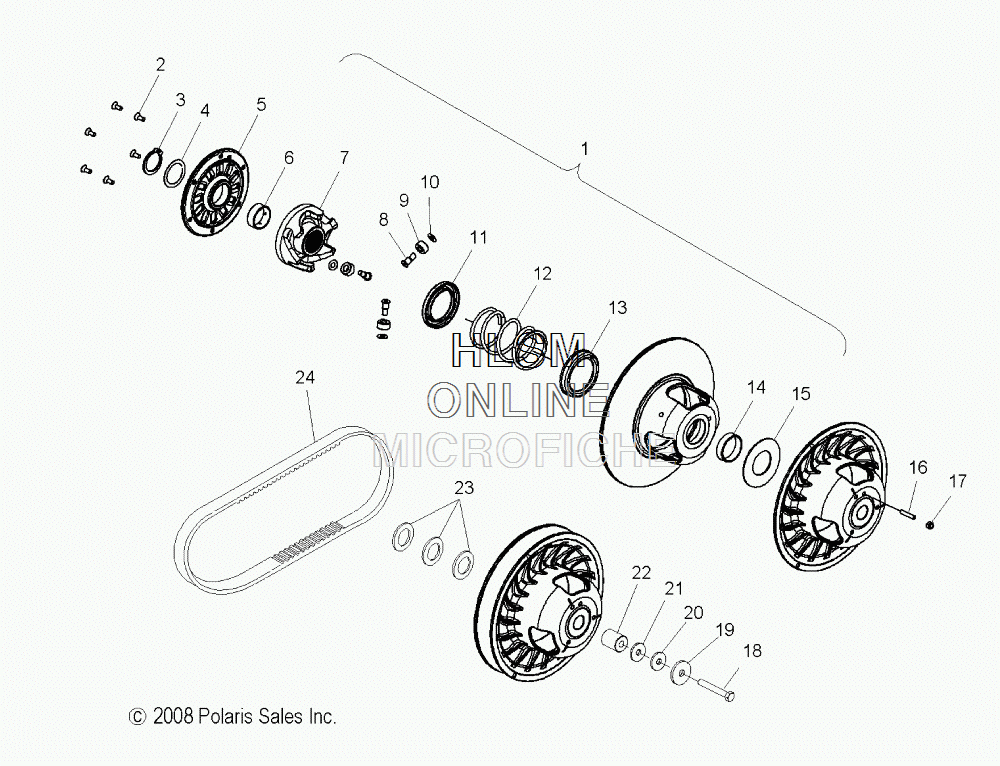

CLUTCH - SECONDARY для Polaris TURBO IQ LXT [S12PT7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
11322827 ASM., DRIVEN CLUTCH, BASIC, P2, 305 (INCL. 2-6,8-11,13-17)ASM., DRIVEN CLUTCH, BASIC, P2, 305 (INCL. 2-6,8-11,13-17)
-
27518309 SCREWSCREW
-
37714804 RING, RETAININGRING, RETAINING
-
47555898 WASHERWASHER
-
51322833 ASM., COVER, DRIVEN, P2 (INCL. 6)ASM., COVER, DRIVEN, P2 (INCL. 6)
-
75137385 RAMP, DRIVEN, 62-36-.70, NON-ER, P2RAMP, DRIVEN, 62-36-.70, NON-ER, P2
-
85134268 PIN, MOVEABLE, ROLLERPIN, MOVEABLE, ROLLER
-
95631828 ROLLER, DRIVENROLLER, DRIVEN
-
107556145 SHIMSHIM
-
115437851 SPACER, CLUTCH, P2SPACER, CLUTCH, P2
-
127043515 SPRING, CLUTCH, 130-180 TAB, P2SPRING, CLUTCH, 130-180 TAB, P2
-
135252908 CUP, SPRING, MOVEABLECUP, SPRING, MOVEABLE
-
157556307 WASHER, FLATWASHER, FLAT
-
167519085 SCREWSCREW
-
177542122 NUT, NYLOKNUT, NYLOK
-
187517581 SCREWSCREW
-
197555701 WASHER, FLATWASHER, FLAT
-
207555734 WASHER, CUPPEDWASHER, CUPPED
-
217555957 WASHERWASHER
-
225135611 SPACER, INPUT SHAFTSPACER, INPUT SHAFT
-
237555864 WASHER, FLATWASHER, FLAT
-
237555917 WASHERWASHER
-
237556509 BUSHINGBUSHING
-
243211121 BELT, DRIVEBELT, DRIVE
