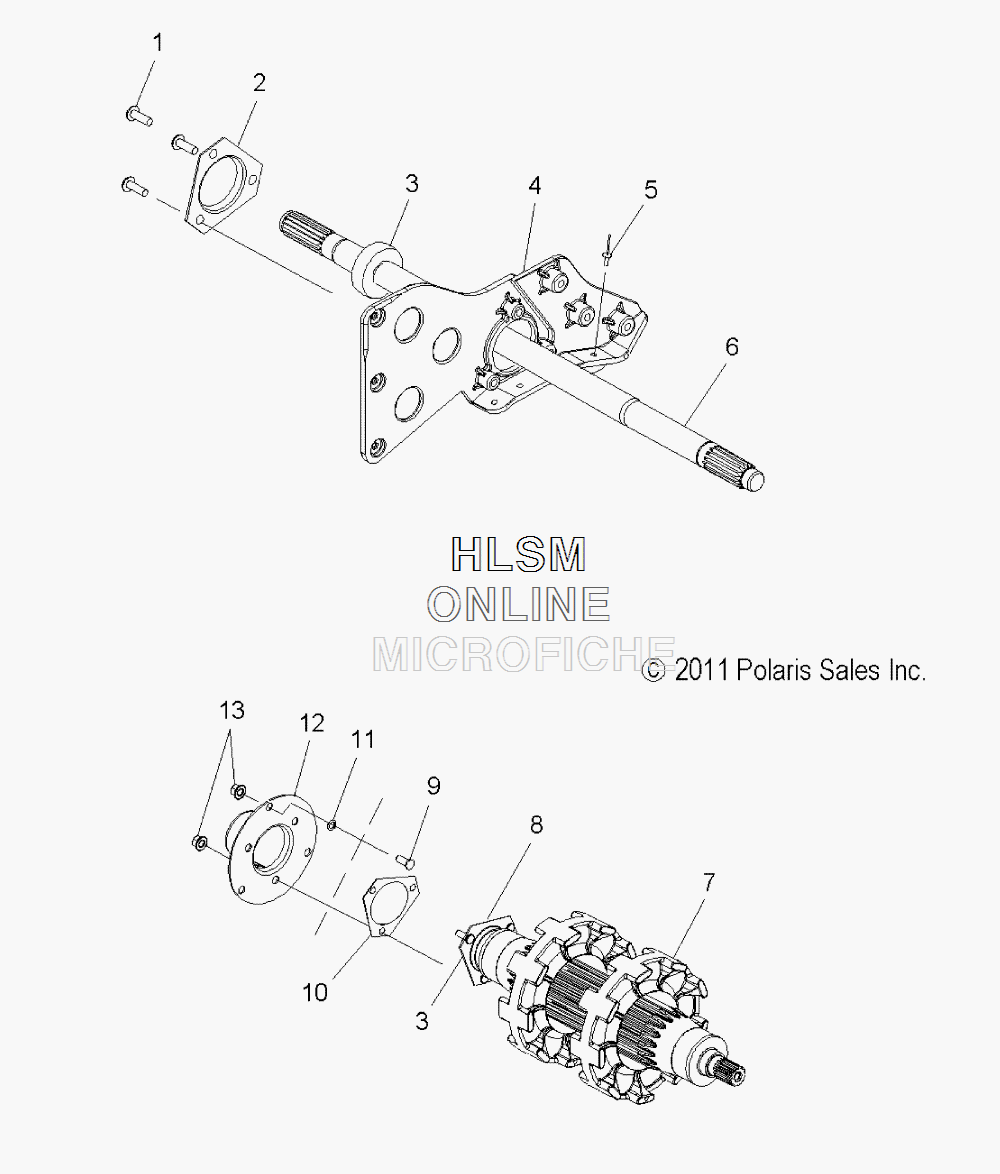

JACKSHAFT ASSEMBLY для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    7518444 SCREW
    SCREW
  • 2
    5222751 FLANGETTE
    FLANGETTE
  • 3
    3514617 BEARING
    BEARING
  • 4
    5137626 MOUNT, JACKSHAFT BEARING, LEFT HAND
    MOUNT, JACKSHAFT BEARING, LEFT HAND
  • 5
    7661637 RIVET
    RIVET
  • 6
    1332453 ASM., JACKSHAFT (INCL. 3)
    ASM., JACKSHAFT (INCL. 3)
  • 7
    1590485 ASM., DRIVESHAFT, TUBULAR, METRIC, SHORT
    ASM., DRIVESHAFT, TUBULAR, METRIC, SHORT
  • 8
    1016551 ASM., FLANGETTE W/SCREWS
    ASM., FLANGETTE W/SCREWS
  • 9
    7519324 SCREW
    SCREW
  • 10
    5811095 GASKET, JACKSHAFT, BLACK
    GASKET, JACKSHAFT, BLACK
  • 11
    7547030 PALNUT
    PALNUT
  • 12
    5246960 HOUSING, DRIVE PICKUP
    HOUSING, DRIVE PICKUP
  • 13
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
