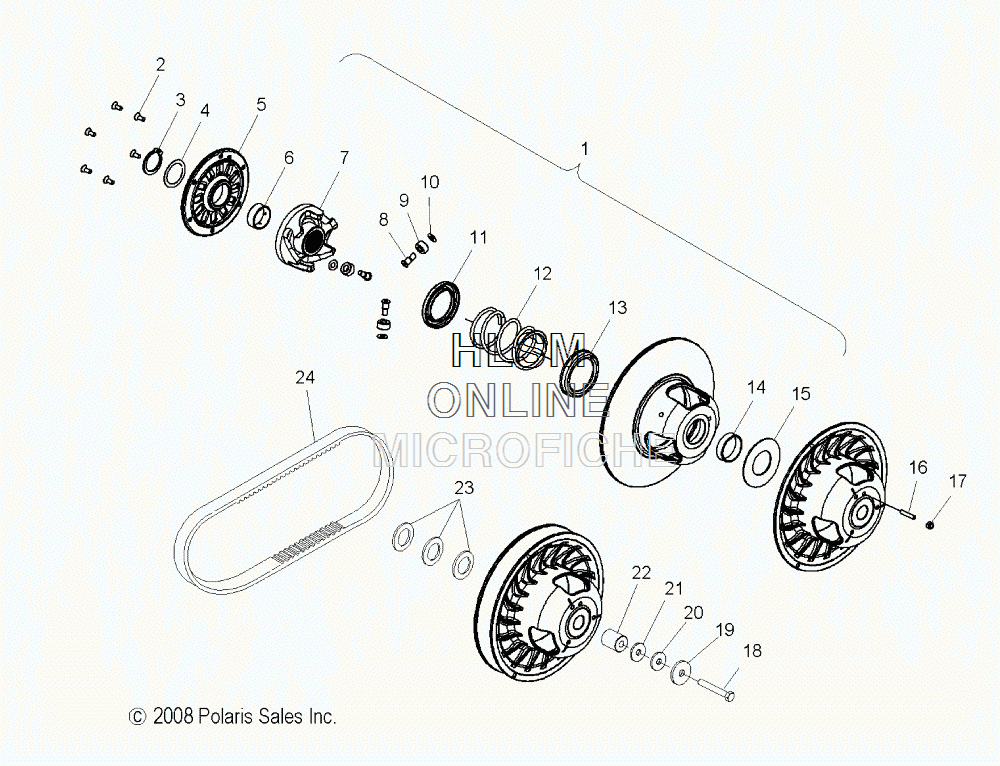

CLUTCH - SECONDARY для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1322827 ASM., DRIVEN CLUTCH, BASIC, P2, 305 (INCL. 2-6,8-11,13-17)
    ASM., DRIVEN CLUTCH, BASIC, P2, 305 (INCL. 2-6,8-11,13-17)
  • 2
    7518309 SCREW
    SCREW
  • 3
    7714804 RING, RETAINING
    RING, RETAINING
  • 4
    7555898 WASHER
    WASHER
  • 5
    1322833 ASM., COVER, DRIVEN, P2 (INCL. 6)
    ASM., COVER, DRIVEN, P2 (INCL. 6)
  • 7
    5137385 RAMP, DRIVEN, 62-36-.70, NON-ER, P2
    RAMP, DRIVEN, 62-36-.70, NON-ER, P2
  • 8
    5134268 PIN, MOVEABLE, ROLLER
    PIN, MOVEABLE, ROLLER
  • 9
    5631828 ROLLER, DRIVEN
    ROLLER, DRIVEN
  • 10
    7556145 SHIM
    SHIM
  • 11
    5437851 SPACER, CLUTCH, P2
    SPACER, CLUTCH, P2
  • 12
    7043515 SPRING, CLUTCH, 130-180 TAB, P2
    SPRING, CLUTCH, 130-180 TAB, P2
  • 13
    5252908 CUP, SPRING, MOVEABLE
    CUP, SPRING, MOVEABLE
  • 15
    7556307 WASHER, FLAT
    WASHER, FLAT
  • 16
    7519085 SCREW
    SCREW
  • 17
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 18
    7515348 BOLT
    BOLT
  • 19
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 20
    7555734 WASHER
    WASHER
  • 21
    7555957 WASHER
    WASHER
  • 22
    5135611 SPACER, INPUT SHAFT
    SPACER, INPUT SHAFT
  • 23
    7555864 WASHER, FLAT
    WASHER, FLAT
  • 23
    7555917 WASHER
    WASHER
  • 23
    7556509 BUSHING
    BUSHING
  • 24
    3211121 BELT, DRIVE
    BELT, DRIVE
