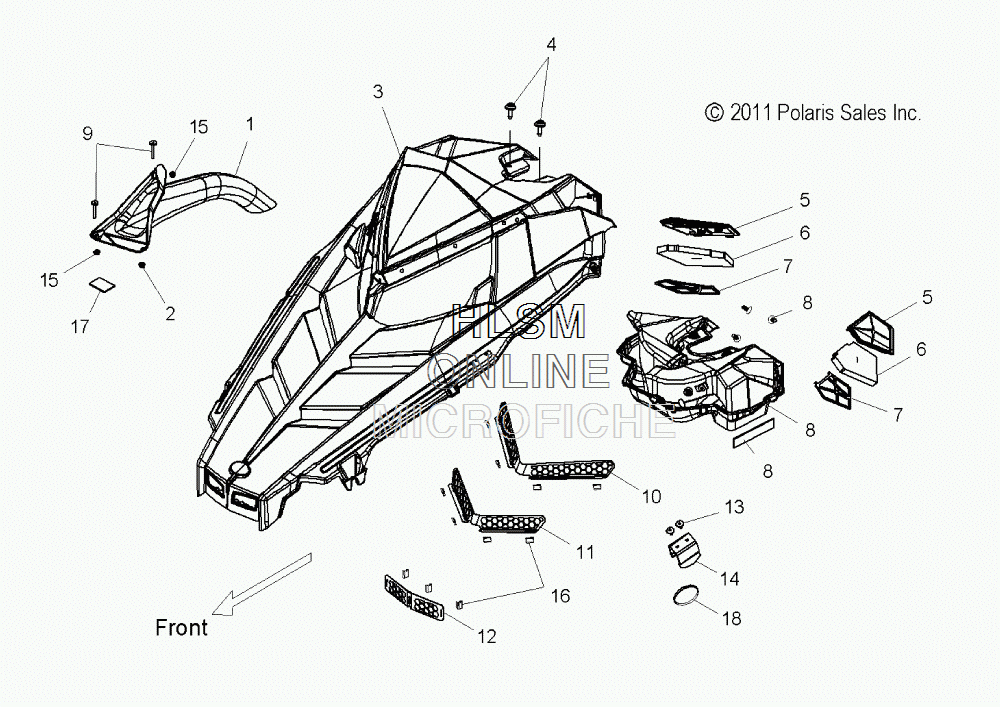

HOOD ASSEMBLY W/ HEADLIGHT для Polaris SWITCHBACK ASSAULT [S12CW8] - 2012 года выпуска`
-
№АртикулНазвание
-
15437519 DUCT, BRAKEDUCT, BRAKE
-
27670135 NUT, SPEEDNUT, SPEED
-
35437509-070 HOOD, MOLDED (BLACK) (ALSO ORDER KIT, HOOD FOAM/FABRIC)HOOD, MOLDED (BLACK) (ALSO ORDER KIT, HOOD FOAM/FABRIC)
-
32634151 KIT, HOOD FOAM/FABRIC (SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS)KIT, HOOD FOAM/FABRIC (SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS)
-
47519112 SCREWSCREW
-
55437835 VENT, INTAKE, LEFT HANDVENT, INTAKE, LEFT HAND
-
55437836 VENT, INTAKE, RIGHT HANDVENT, INTAKE, RIGHT HAND
-
65813630 FOAM, FILTER INLETFOAM, FILTER INLET
-
75813467 BACKER, INTAKE VENTBACKER, INTAKE VENT
-
82633701 ASM., PLENUM, INTAKEASM., PLENUM, INTAKE
-
87670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
85813605 FOAM W/PSAFOAM W/PSA
-
97519311 SCREWSCREW
-
105252666-067 SCREEN, HOOD CENTER, REAR (BLACK)SCREEN, HOOD CENTER, REAR (BLACK)
-
115252665-067 SCREEN, HOOD CENTER, MIDDLE (BLACK)SCREEN, HOOD CENTER, MIDDLE (BLACK)
-
125252664-067 SCREEN, HOOD CENTER, FRONT (BLACK)SCREEN, HOOD CENTER, FRONT (BLACK)
-
137621467 RIVETRIVET
-
145222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
157547427 NUTNUT
-
167670040 FASTENER, U-TYPE CLIPFASTENER, U-TYPE CLIP
-
175813349 FABRIC, PATCHFABRIC, PATCH
-
185411174 O-RINGO-RING
