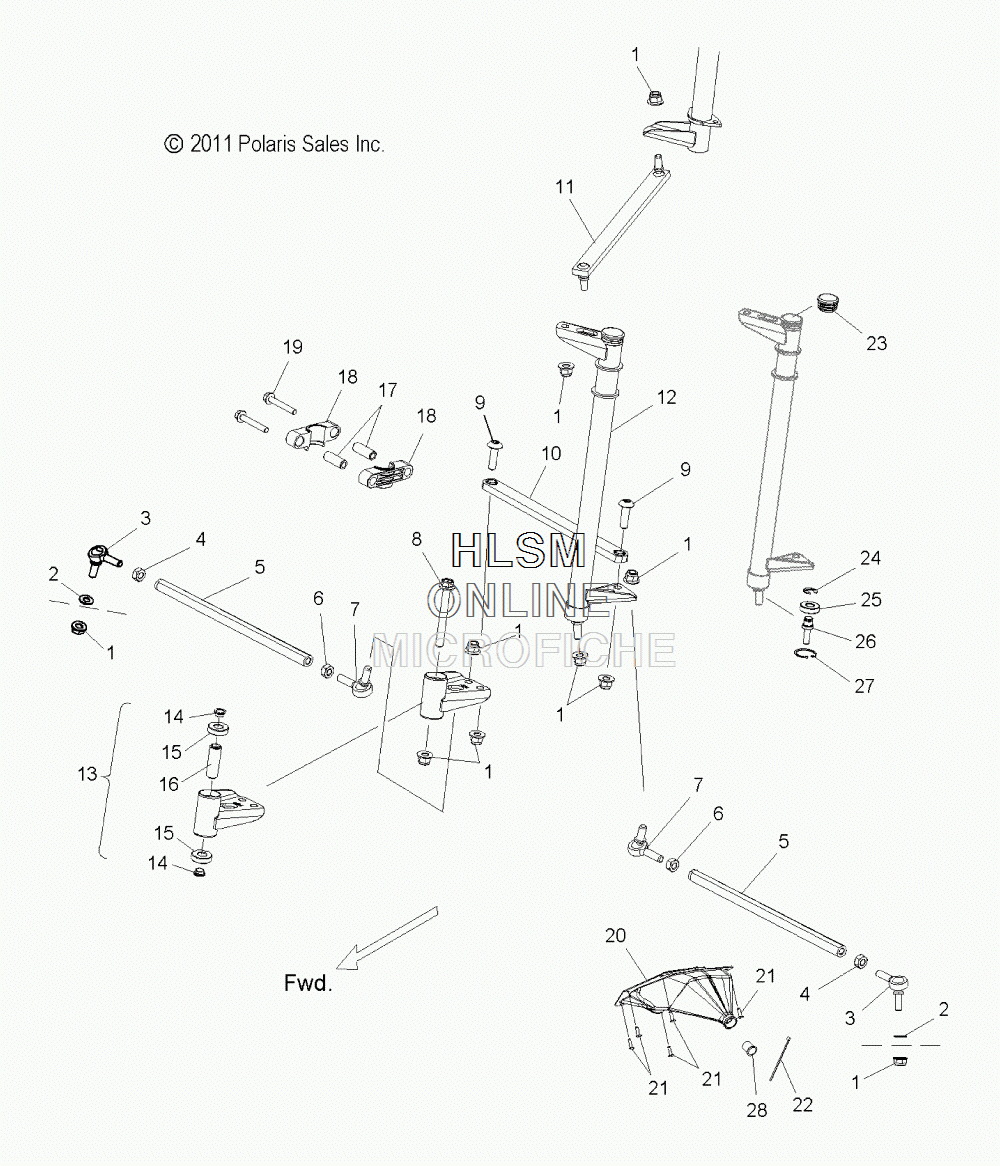

STEERING - LOWER для Polaris SWITCHBACK ASSAULT [S12CW8] - 2012 года выпуска
-
№АртикулНазвание
-
17547423 NUTNUT
-
27555806 WASHER, FLATWASHER, FLAT
-
37061166 ROD ENDROD END
-
47547430 NUTNUT
-
55336578 TIE RODTIE ROD
-
67547431 NUT, LEFT HANDNUT, LEFT HAND
-
77061165 ROD END, LEFT HANDROD END, LEFT HAND
-
87519016 SCREWSCREW
-
97519017 SCREWSCREW
-
107061176 LINK, FIXEDLINK, FIXED
-
111823392 ASM., DRAG LINK, FIXEDASM., DRAG LINK, FIXED
-
121823417 ASM., PITMAN ARM (INCL. 23-27)ASM., PITMAN ARM (INCL. 23-27)
-
131823686 ASM, IDLER ARM (INCL. 14-16)ASM, IDLER ARM (INCL. 14-16)
-
145136662 BUSHING, REDUCERBUSHING, REDUCER
-
153514320 BEARING, BALLBEARING, BALL
-
165135452 SPACER, TUBE PITMAN/IDLER ARMSSPACER, TUBE PITMAN/IDLER ARMS
-
175137796 SPACER, BUSHINGSPACER, BUSHING
-
185438492 BUSHING, STEERING POSTBUSHING, STEERING POST
-
197519242 SCREWSCREW
-
202634077 ASM., BOOT, TIE ROD, LEFT HANDASM., BOOT, TIE ROD, LEFT HAND
-
202634078 ASM., BOOT, TIE ROD, RIGHT HANDASM., BOOT, TIE ROD, RIGHT HAND
-
217519092 SCREWSCREW
-
227080138 CABLE TIECABLE TIE
-
237081210 PLUG, TUBEPLUG, TUBE
-
247710901 RING, RETAININGRING, RETAINING
-
253514320 BEARING, BALLBEARING, BALL
-
267519163 STUD, SPACERSTUD, SPACER
-
277710642 RING, RETAININGRING, RETAINING
-
285438847 BUSHING, TIE ROD BOOTBUSHING, TIE ROD BOOT
