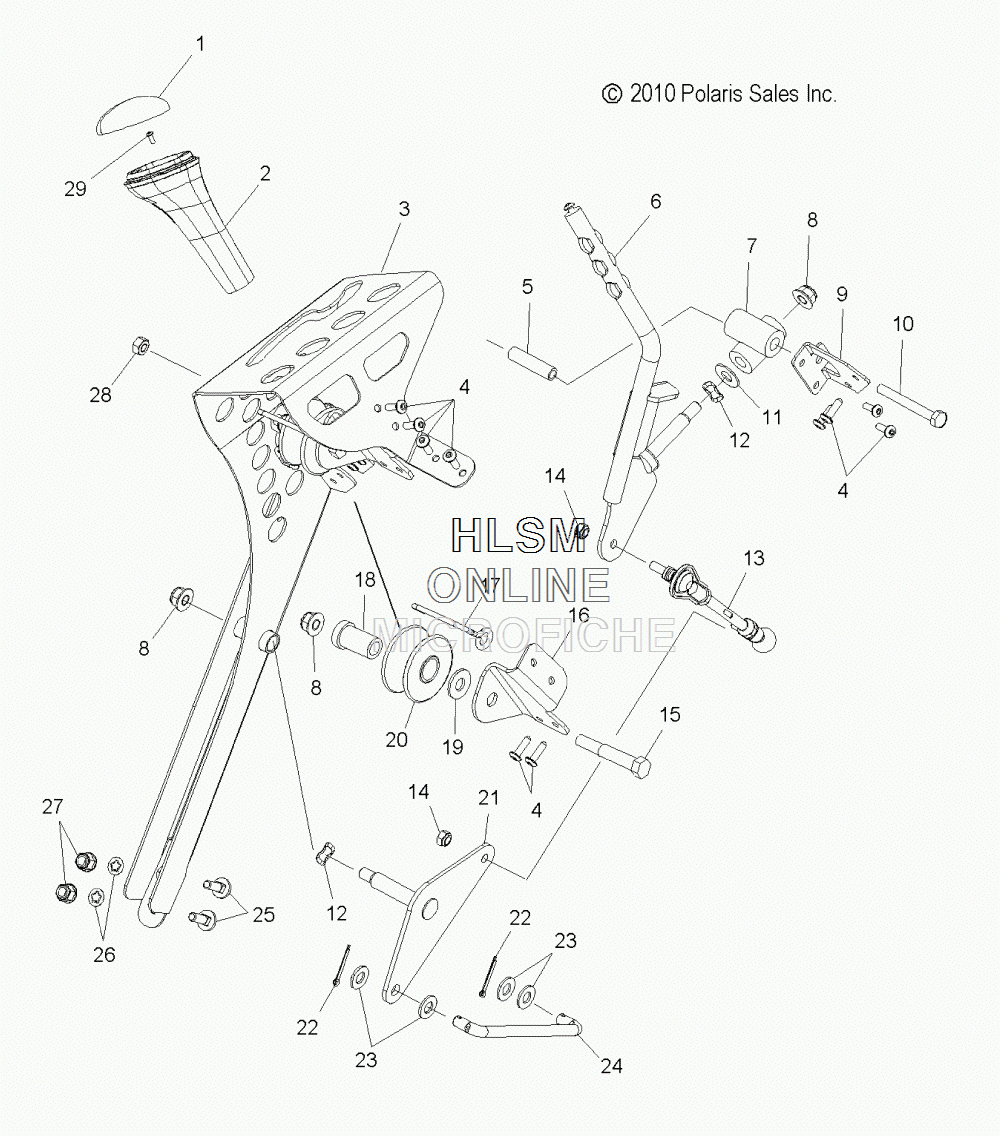

SHIFT LINKAGE ASSEMBLY 4X6 для Polaris 600 WIDETRAK IQ INTL [S12PU6NEL] - 2012 года выпуска`
-
№АртикулНазвание
-
13234026 COVER, SHIFT KNOBCOVER, SHIFT KNOB
-
25411007 KNOB, GEAR SELECTKNOB, GEAR SELECT
-
31016995-067 GUIDE, SHIFT, BLACKGUIDE, SHIFT, BLACK
-
47661637 RIVETRIVET
-
55335577 SPACER, SHIFT LEVERSPACER, SHIFT LEVER
-
61016340 LEVER, SHIFTLEVER, SHIFT
-
75431106 BLOCK, SHIFT PIVOTBLOCK, SHIFT PIVOT
-
87542343 NUT, FLANGENUT, FLANGE
-
95253350-329 BRACKET, SHIFT MOUNT, BLACKBRACKET, SHIFT MOUNT, BLACK
-
107517238 SCREWSCREW
-
117555957 WASHERWASHER
-
127571619 WASHER, WAVEWASHER, WAVE
-
131823438 ASM., LINKAGE, SHIFTASM., LINKAGE, SHIFT
-
135335553 ROD, LINKAGE, UPPERROD, LINKAGE, UPPER
-
137061128 ROD END (LEFT HAND)ROD END (LEFT HAND)
-
137061129 ROD END (RIGHT HANDROD END (RIGHT HAND
-
137547083 NUT, JAM (RIGHT HAND)NUT, JAM (RIGHT HAND)
-
137547198 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
147546703 NUT, NYLOKNUT, NYLOK
-
157518419 SCREW, SHOULDERSCREW, SHOULDER
-
165253213 BRACKET, RECOIL MOUNT, PLATEDBRACKET, RECOIL MOUNT, PLATED
-
175334646 GUIDE, ROPEGUIDE, ROPE
-
185134265 BUSHING, ROLLERBUSHING, ROLLER
-
197558403 WASHERWASHER
-
205435390 ROLLER, RECOILROLLER, RECOIL
-
211016341 BELLCRANKBELLCRANK
-
227661203 PIN, COTTERPIN, COTTER
-
237558402 WASHER, FLATWASHER, FLAT
-
245335554 ROD, LINKAGE, LOWERROD, LINKAGE, LOWER
-
257515203 BOLT, CARRIAGEBOLT, CARRIAGE
-
267670154 RETAINER, BOLTRETAINER, BOLT
-
277542122 NUT, NYLOKNUT, NYLOK
-
287547101 NUT, CENTER LOCKNUT, CENTER LOCK
-
297512024 SCREWSCREW
