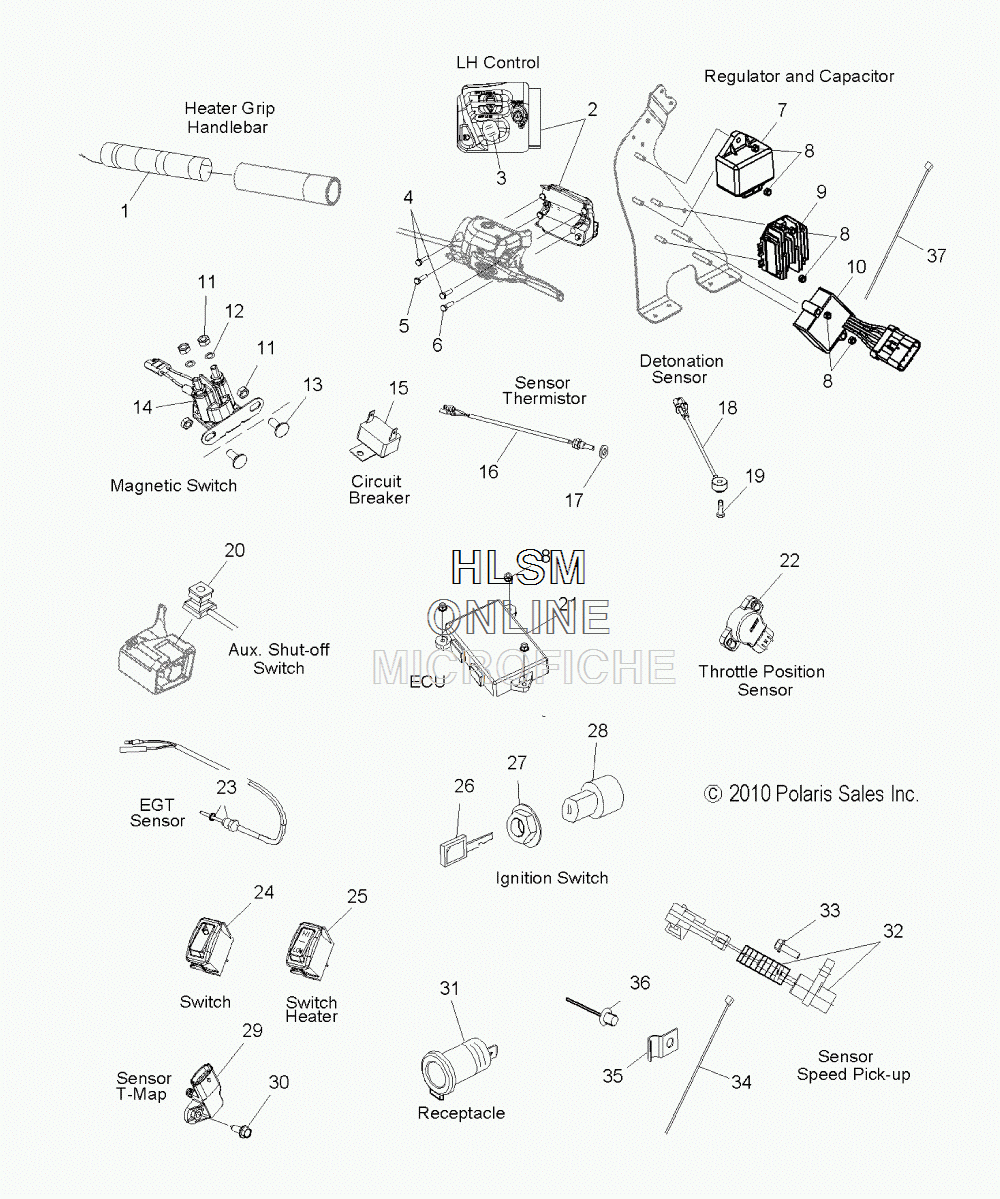

SENSORS - SWITCHES - COMPONENTS для Polaris 600 WIDETRAK IQ INTL [S12PU6NEL] - 2012 года выпуска`
-
№АртикулНазвание
-
12410778 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
22010370 ASM., CONTROL, LEFT HANDASM., CONTROL, LEFT HAND
-
35438874 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREWSCREW
-
57512078 SCREWSCREW
-
67517566 SCREWSCREW
-
74011114 CAPACITORCAPACITOR
-
87546703 NUT, NYLOKNUT, NYLOK
-
94012263 REGULATOR, 3 PHASE DCREGULATOR, 3 PHASE DC
-
104012592 REGULATOR, AC/DCREGULATOR, AC/DC
-
117542105 NUTNUT
-
127552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
137512298 BOLT, CARRIAGEBOLT, CARRIAGE
-
144012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
152410692 BREAKER, CIRCUITBREAKER, CIRCUIT
-
164012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
177556357 WASHER, COPPERWASHER, COPPER
-
182410369 SENSOR, DETONATIONSENSOR, DETONATION
-
197517262 SCREWSCREW
-
204013380 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
214012371 ECU BASEECU BASE
-
223131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
234013133 SENSOR, EGTSENSOR, EGT
-
244011074 SWITCH, WORKLIGHT, ON/OFFSWITCH, WORKLIGHT, ON/OFF
-
254011864 SWITCH, HEATER, HI/LOSWITCH, HEATER, HI/LO
-
265410611 CAP, W/KEYCAP, W/KEY
-
277547035 NUT, IGNITIONNUT, IGNITION
-
282200358 KIT, IGNITION SWITCHKIT, IGNITION SWITCH
-
292410422 SENSOR, T MAPSENSOR, T MAP
-
307512095 SCREWSCREW
-
314010638 RECEPTACLE, POD MOUNTRECEPTACLE, POD MOUNT
-
322410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
328360056-25 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
-
337512232 SCREWSCREW
-
347080138 CABLE TIECABLE TIE
-
357080963 RETAINER, J-CLIPRETAINER, J-CLIP
-
367661637 RIVETRIVET
-
377080761 CABLE TIECABLE TIE
