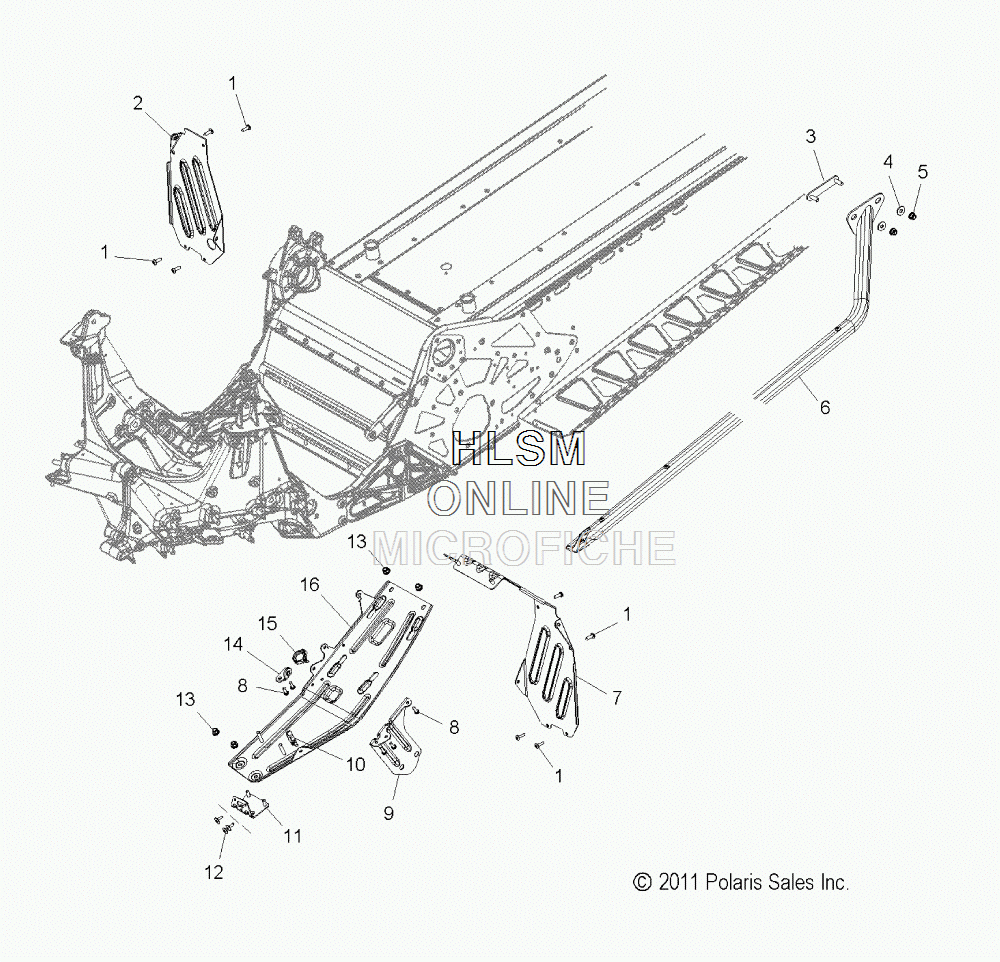

CLUTCH GUARD W/FOOTREST (600/155 INCH) для Polaris 600 RMK 155 ES [S12CM6] - 2012 года выпуска`
-
№АртикулНазвание
-
17661637 RIVETRIVET
-
21017426 ASM., TOE STOP, RIGHT HAND (155)ASM., TOE STOP, RIGHT HAND (155)
-
31016959 ASM., STUD PLATE (155)ASM., STUD PLATE (155)
-
47556565 WASHERWASHER
-
57547487 NUTNUT
-
61017607 ASM., SUPPORT, FOOTREST, LEFT HANDASM., SUPPORT, FOOTREST, LEFT HAND
-
61017608 ASM., SUPPORT, FOOTREST, RIGHT HANDASM., SUPPORT, FOOTREST, RIGHT HAND
-
71016961 ASM., TOE STOP, LEFT HANDASM., TOE STOP, LEFT HAND
-
87661973 RIVETRIVET
-
95252120 GUARD, TPSGUARD, TPS
-
104020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
111017419 ASM., BACKER, CLUTCH GUARD W/STUDASM., BACKER, CLUTCH GUARD W/STUD
-
127621467 RIVETRIVET
-
137547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
141017357 ASM., OIL BOTTLE BRACKETASM., OIL BOTTLE BRACKET
-
154020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
161017418 ASM., BELT GUARDASM., BELT GUARD
