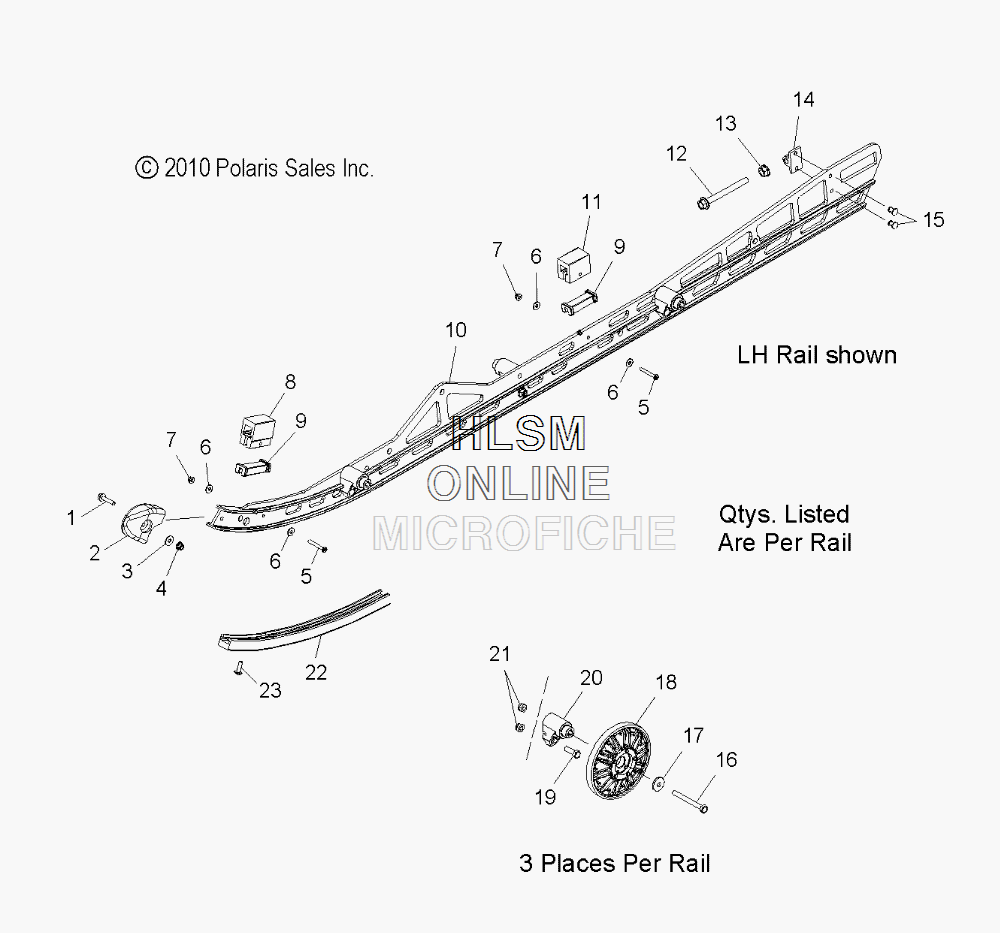

SUSPENSION - RAIL MOUNTING (155 INCH) для Polaris 600 RMK 155 ES [S12CM6] - 2012 года выпуска`
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
25438374 CAP, RAIL TIPCAP, RAIL TIP
-
37556064 WASHER, FLATWASHER, FLAT
-
47547339 NUT, NYLOKNUT, NYLOK
-
57518951 SCREWSCREW
-
67556470 WASHERWASHER
-
77547427 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
85521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
95432946 LINER, BUMPERLINER, BUMPER
-
101542760 ASM., RAIL, BASIC, COIL OVER, 155, LEFT HAND (INCL. 1-9,11)ASM., RAIL, BASIC, COIL OVER, 155, LEFT HAND (INCL. 1-9,11)
-
101542761 ASM., RAIL, BASIC, COIL OVER, 155, RIGHT HAND (INCL. 1-9,11)ASM., RAIL, BASIC, COIL OVER, 155, RIGHT HAND (INCL. 1-9,11)
-
115521812 BUMPER, JOUNCE, REAR, COIL-OVERBUMPER, JOUNCE, REAR, COIL-OVER
-
127519167 SCREWSCREW
-
137547017 NUTNUT
-
145136570 BLOCK, IDLER BOLT ADJUSTABLE, METRICBLOCK, IDLER BOLT ADJUSTABLE, METRIC
-
157621501 RIVETRIVET
-
167519217 SCREWSCREW
-
177556489 WASHER, SPRINGWASHER, SPRING
-
181590434-070 ASM., WHEEL, WEB, BLACKASM., WHEEL, WEB, BLACK
-
183514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
187710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
197518952 SCREWSCREW
-
205631446 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
217547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
225521633 HI-FAXHI-FAX
-
237518976 SCREWSCREW
