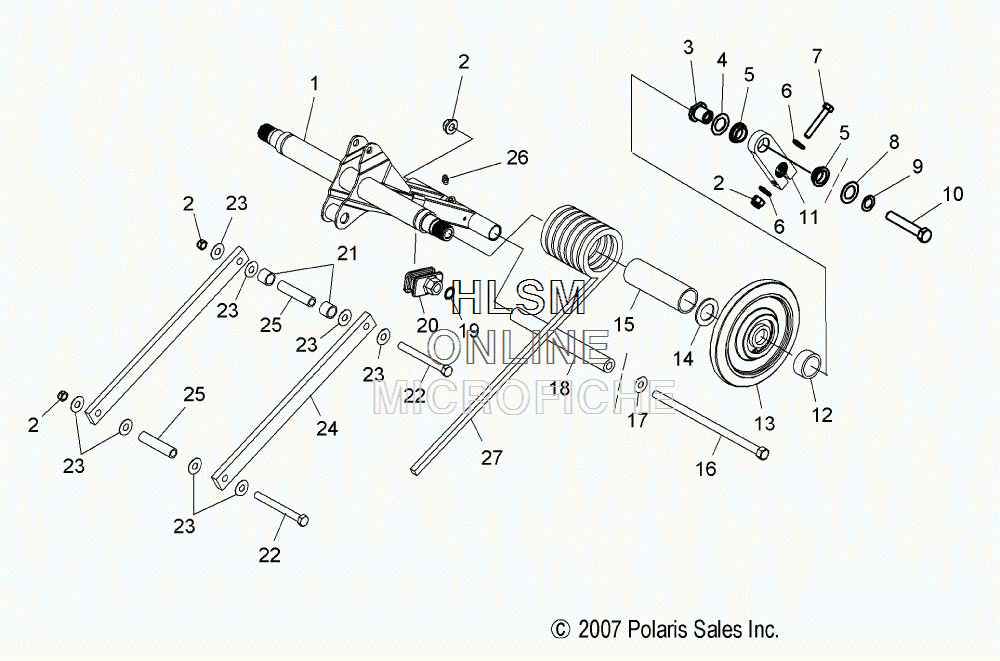

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 IQ RACER [S12MX6JSA] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1542602-329 ARM, TORQUE, REAR (BLACK)
    ARM, TORQUE, REAR (BLACK)
  • 2
    7547263 NUT, NYLOK
    NUT, NYLOK
  • 3
    5134678 SHAFT, ARM
    SHAFT, ARM
  • 4
    7555945 WASHER, THRUST
    WASHER, THRUST
  • 5
    3514488 BUSHING, ARM
    BUSHING, ARM
  • 6
    7556188 WASHER, FLAT
    WASHER, FLAT
  • 7
    7515415 SCREW
    SCREW
  • 8
    7555984 WASHER, FLAT
    WASHER, FLAT
  • 9
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 10
    7512539 BOLT
    BOLT
  • 11
    1542599 ASM., ARM (INCL. 5)
    ASM., ARM (INCL. 5)
  • 12
    5134706 SPACER, WHEEL
    SPACER, WHEEL
  • 13
    1590343 ASM., CARRIER WHEEL
    ASM., CARRIER WHEEL
  • 14
    7555787 WASHER, THRUST
    WASHER, THRUST
  • 15
    5436884 SLEEVE, TORSION SPRING
    SLEEVE, TORSION SPRING
  • 16
    7517232 SCREW
    SCREW
  • 17
    7556188 WASHER, FLAT
    WASHER, FLAT
  • 18
    5334025 SHAFT
    SHAFT
  • 19
    7080394 CLIP, PUSH-ON
    CLIP, PUSH-ON
  • 20
    5432983 ROLLER, SPRING, ADJUSTABLE
    ROLLER, SPRING, ADJUSTABLE
  • 21
    5334482 SPACER
    SPACER
  • 22
    7517851 SCREW
    SCREW
  • 23
    7555797 WASHER, FLAT
    WASHER, FLAT
  • 24
    5249817 ROD, SHOCK, RACE
    ROD, SHOCK, RACE
  • 25
    5334475 SLEEVE
    SLEEVE
  • 26
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 27
    7041897-329 SPRING, TORSION, 90 DEGREE, LEFT HAND (BLACK)
    SPRING, TORSION, 90 DEGREE, LEFT HAND (BLACK)
  • 27
    7041898-329 SPRING, TORSION, 90 DEGREE, RIGHT HAND (BLACK)
    SPRING, TORSION, 90 DEGREE, RIGHT HAND (BLACK)
