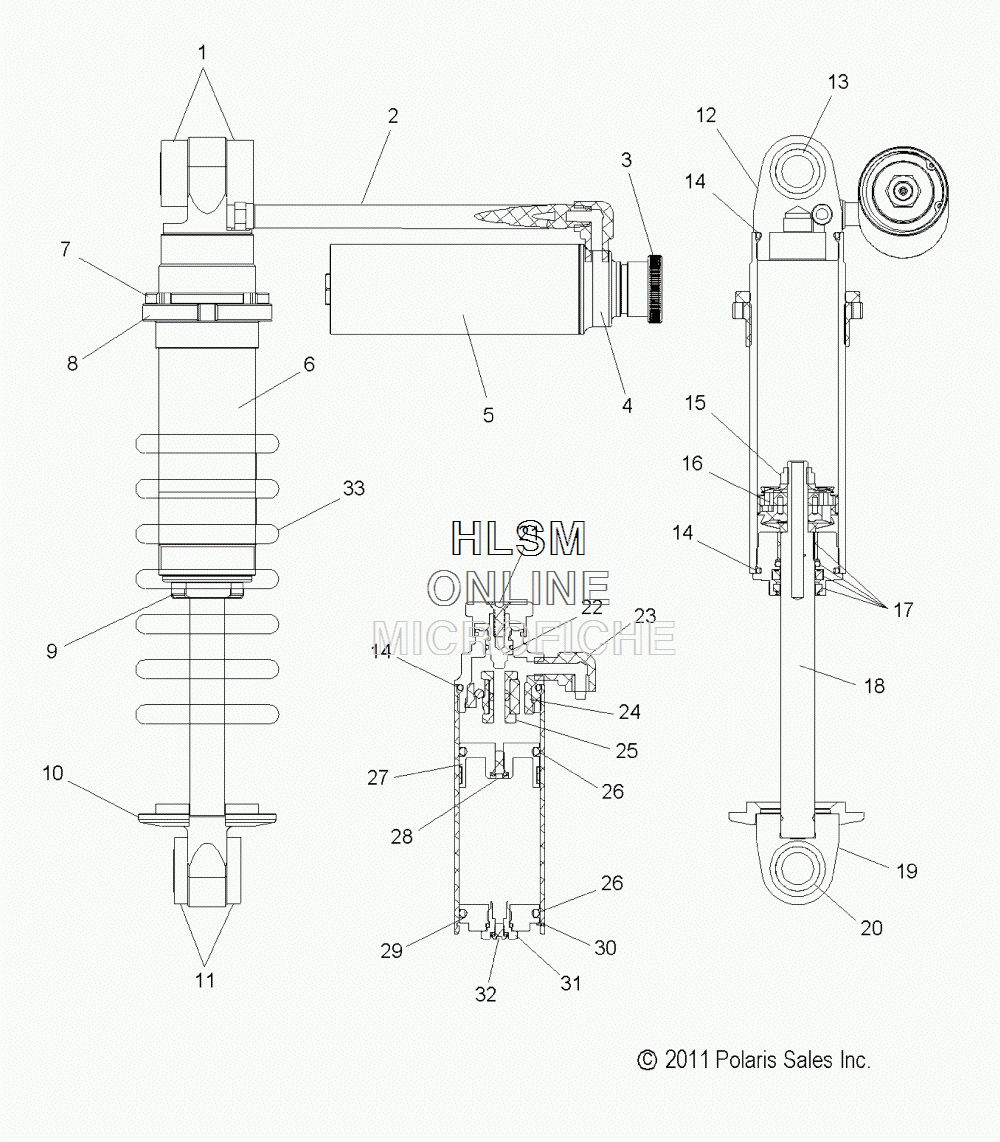

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 IQ RACER [S12MX6JSA] - 2012 года выпуска`
-
№АртикулНазвание
-
337043817 SHOCK, FRONT TRACKSHOCK, FRONT TRACK
-
11800033 BUSHING, URETHANEBUSHING, URETHANE
-
21800477 HOSE, STRAIGHTHOSE, STRAIGHT
-
31800476 KNOB, CLICKER (BLACK)KNOB, CLICKER (BLACK)
-
41800440 HOUSING, CLICKER, CLEARHOUSING, CLICKER, CLEAR
-
51800120 RESERVOIR, BODYRESERVOIR, BODY
-
61800475 BODYBODY
-
71800465 NUT, JAMNUT, JAM
-
81800046 RETAINER, SPRINGRETAINER, SPRING
-
91800414 ASM., SEAL HEADASM., SEAL HEAD
-
101800449 CLIP, SPRINGCLIP, SPRING
-
111800036 BUSHING, URETHANEBUSHING, URETHANE
-
121800474 LOOP, BODYLOOP, BODY
-
131800039 SLEEVESLEEVE
-
141800027 O-RING, BODYO-RING, BODY
-
151800031 NUT, CRIMPNUT, CRIMP
-
161800517 PISTON, W/BANDPISTON, W/BAND
-
171800038 BUSHING, SHAFTBUSHING, SHAFT
-
171800037 O-RING, SHAFT, SEAL HEADO-RING, SHAFT, SEAL HEAD
-
171800323 SEAL, SHAFT, U CUPSEAL, SHAFT, U CUP
-
171800322 WIPER, D TYPEWIPER, D TYPE
-
181800447 SHAFTSHAFT
-
191800415 LOOP, SHAFTLOOP, SHAFT
-
201800032 SLEEVESLEEVE
-
211800196 SCREWSCREW
-
221800352 STUD, CLICKERSTUD, CLICKER
-
221800215 O-RINGO-RING
-
231800205 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
241800217 PISTONPISTON
-
251800219 SCREWSCREW
-
261800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
271800281 PISTON, RESERVOIRPISTON, RESERVOIR
-
271800297 WEAR BANDWEAR BAND
-
281800043 SCREW, BLEEDSCREW, BLEED
-
281800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
291800430 CAP, ENDCAP, END
-
291800028 O-RINGO-RING
-
301800019 RING, SNAPRING, SNAP
-
311800329 VALVE, NEEDLEVALVE, NEEDLE
-
311800215 O-RINGO-RING
-
321800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
321800210 O-RINGO-RING
-
337041671-067 SPRING, COMPRESSION, 160# (BLACK)SPRING, COMPRESSION, 160# (BLACK)
