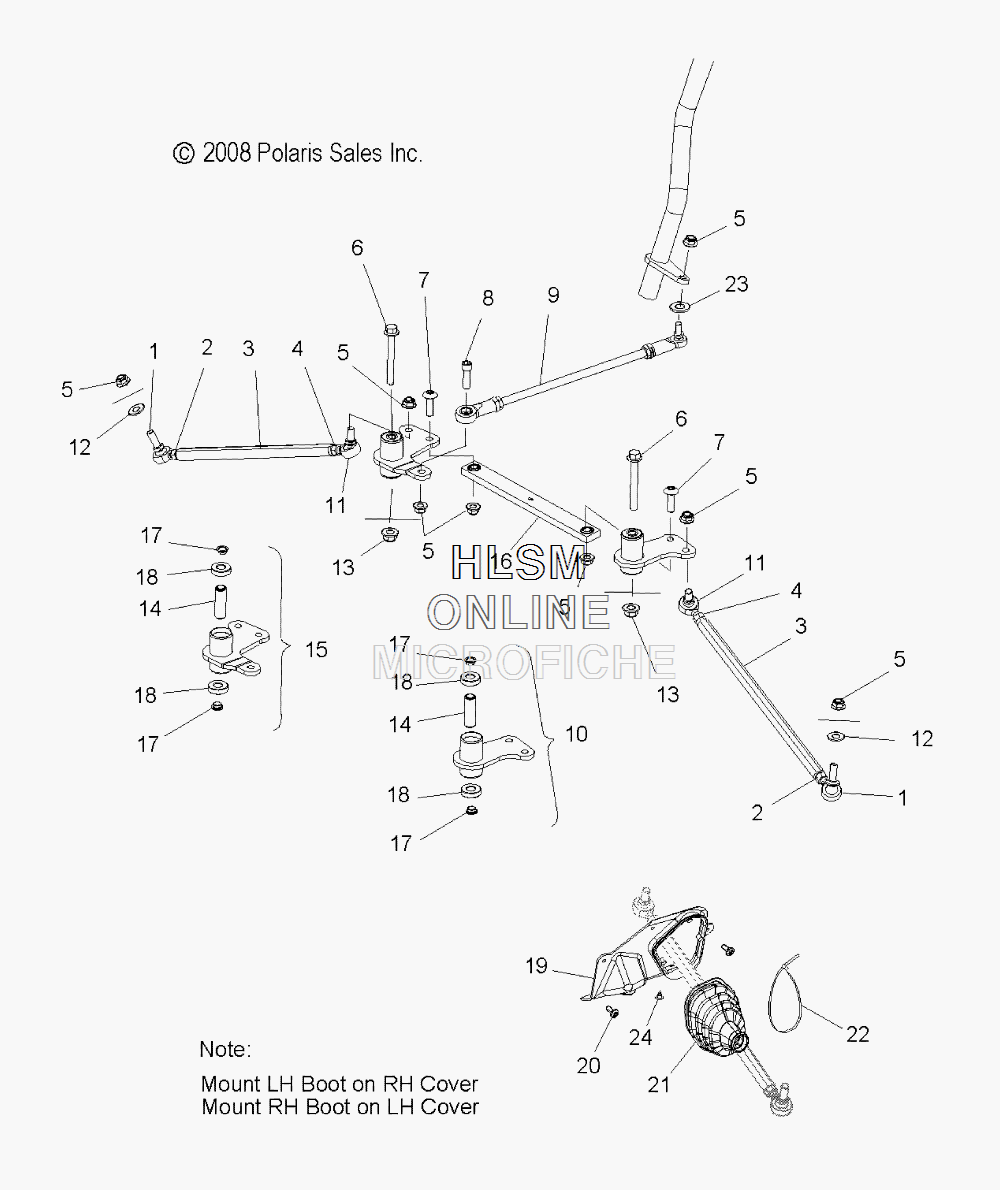

STEERING - LOWER W/TIE RODS для Polaris 600 SWITCHBACK ES [S11PS6HSL] - 2011 года выпуска
-
№АртикулНазвание
-
17061164 ROD END, RIGHT HANDROD END, RIGHT HAND
-
27542401 NUT, HEX, RIGHT HANDNUT, HEX, RIGHT HAND
-
35334667 ROD, TIEROD, TIE
-
47542424 NUT, LEFT HANDNUT, LEFT HAND
-
57547263 NUT, NYLOKNUT, NYLOK
-
67518277 SCREW, FLANGESCREW, FLANGE
-
77518372 SCREWSCREW
-
87515545 BOLTBOLT
-
91822907 ASM., DRAGLINK, FIXEDASM., DRAGLINK, FIXED
-
101821419 ASM., ARM, IDLERASM., ARM, IDLER
-
117061163 ROD END, LEFT HANDROD END, LEFT HAND
-
127555806 WASHER, FLATWASHER, FLAT
-
137547180 NUT, FLANGEDNUT, FLANGED
-
145135452 SPACER, TUBE PITMAN/IDLER ARMSSPACER, TUBE PITMAN/IDLER ARMS
-
151822908 ASM., PITMAN ARM (INCL. 17-19)ASM., PITMAN ARM (INCL. 17-19)
-
167061152 LINK, FIXEDLINK, FIXED
-
175132106 BUSHING, REDUCERBUSHING, REDUCER
-
183514320 BEARING, BALLBEARING, BALL
-
195436574 COVER, TIE ROD BOOT, LEFT HANDCOVER, TIE ROD BOOT, LEFT HAND
-
195436575 COVER, TIE ROD BOOT, RIGHT HANDCOVER, TIE ROD BOOT, RIGHT HAND
-
207512084 SCREWSCREW
-
215413793 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
215413794 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
227080761 CABLE TIECABLE TIE
-
237556242 WASHER, FLATWASHER, FLAT
-
247670125 FASTENER, PUSH-ON CLIPFASTENER, PUSH-ON CLIP
