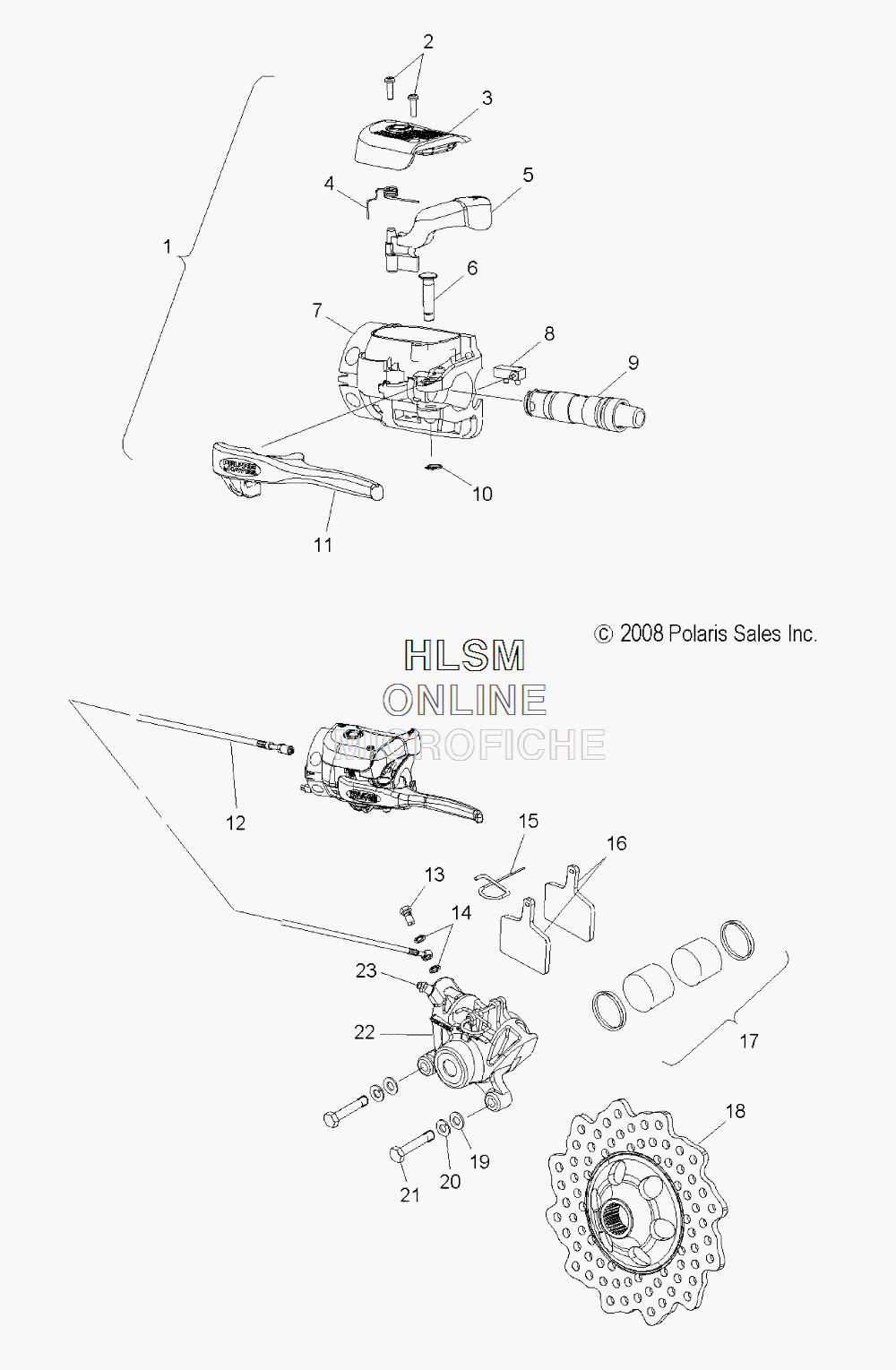

BRAKE ASSEMBLY для Polaris 600 SWITCHBACK ES [S11PS6HSL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2203489 KIT, FULL ASM. (INCL. 2-4,7,9-11)
    KIT, FULL ASM. (INCL. 2-4,7,9-11)
  • 2
    2201254 KIT, COVER SCREW
    KIT, COVER SCREW
  • 3
    2202837 KIT, COVER ASSEMBLY (INCL. 2, GASKET)
    KIT, COVER ASSEMBLY (INCL. 2, GASKET)
  • 4
    2201250 KIT, PARK LEVER SPRING
    KIT, PARK LEVER SPRING
  • 5
    2201251 KIT, PARK LEVER AND SPRING
    KIT, PARK LEVER AND SPRING
  • 6
    2201946 KIT, PIVOT PIN W/SNAP RING (INCL. 10)
    KIT, PIVOT PIN W/SNAP RING (INCL. 10)
  • 7
    2202784 KIT, RESERVOIR (INCL. 6,10)
    KIT, RESERVOIR (INCL. 6,10)
  • 8
    2203182 KIT, SWITCH, STOPLIGHT
    KIT, SWITCH, STOPLIGHT
  • 9
    2203486 KIT, CARTRIDGE
    KIT, CARTRIDGE
  • 10
    2201945 KIT, SNAP RING
    KIT, SNAP RING
  • 11
    2201943 KIT, LEVER (INCL. 6,10)
    KIT, LEVER (INCL. 6,10)
  • 12
    2202929 KIT, HOSE
    KIT, HOSE
  • 13
    2203392 KIT, BANJO
    KIT, BANJO
  • 14
    2203393 KIT, WASHER (2 PER)
    KIT, WASHER (2 PER)
  • 15
    2202206 KIT, PIN RETAINING
    KIT, PIN RETAINING
  • 16
    2202727 KIT, BRAKE PAD, TYPE 94 (INCL. 15)
    KIT, BRAKE PAD, TYPE 94 (INCL. 15)
  • 17
    2202207 KIT, PISTON/SEAL
    KIT, PISTON/SEAL
  • 17
    2202204 KIT, SEAL
    KIT, SEAL
  • 18
    2203712 KIT, SERVICE DISC, SAWTOOTH
    KIT, SERVICE DISC, SAWTOOTH
  • 19
    7556160 WASHER
    WASHER
  • 20
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 21
    7515534 SCREW
    SCREW
  • 22
    2202742 KIT, ASM., BRAKE CALIPER
    KIT, ASM., BRAKE CALIPER
  • 23
    2202205 KIT, BLEEDER FITTING
    KIT, BLEEDER FITTING
