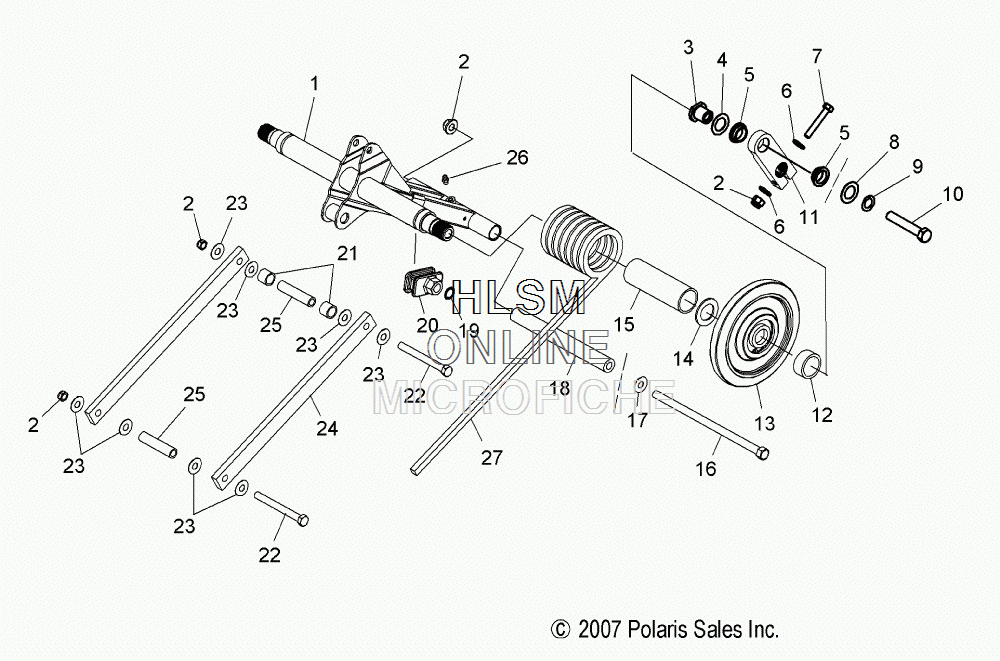

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 IQ RACER [S11MX6JSA] - 2011 года выпуска`
-
№АртикулНазвание
-
11542602-329 ARM, TORQUE, REAR, BLACKARM, TORQUE, REAR, BLACK
-
27547263 NUT, NYLOKNUT, NYLOK
-
35134678 SHAFT, ARMSHAFT, ARM
-
47555945 WASHER, THRUSTWASHER, THRUST
-
53514488 BUSHING, ARMBUSHING, ARM
-
67556188 WASHER, FLATWASHER, FLAT
-
77515415 SCREWSCREW
-
87555984 WASHER, FLATWASHER, FLAT
-
97552614 WASHER, LOCKWASHER, LOCK
-
107512539 BOLTBOLT
-
111542599 ASM., ARM (INCL. 5)ASM., ARM (INCL. 5)
-
125134706 SPACER, WHEELSPACER, WHEEL
-
131590343 ASM., CARRIER WHEELASM., CARRIER WHEEL
-
147555787 WASHER, THRUSTWASHER, THRUST
-
155436884 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
167517232 SCREWSCREW
-
177556188 WASHER, FLATWASHER, FLAT
-
185334025 SHAFTSHAFT
-
197080394 CLIP, PUSH-ONCLIP, PUSH-ON
-
205432983 ROLLER, SPRING, ADJUSTABLEROLLER, SPRING, ADJUSTABLE
-
215334482 SPACERSPACER
-
227517851 SCREWSCREW
-
237555797 WASHER, FLATWASHER, FLAT
-
245249817 ROD, SHOCK, RACEROD, SHOCK, RACE
-
255334475 SLEEVESLEEVE
-
267080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
277043466-329 SPRING, TORSION, 77 DEGREE, LEFT HAND, BLACKSPRING, TORSION, 77 DEGREE, LEFT HAND, BLACK
-
277043467-329 SPRING, TORSION, 77 DEGREE, RIGHT HAND, BLACKSPRING, TORSION, 77 DEGREE, RIGHT HAND, BLACK
