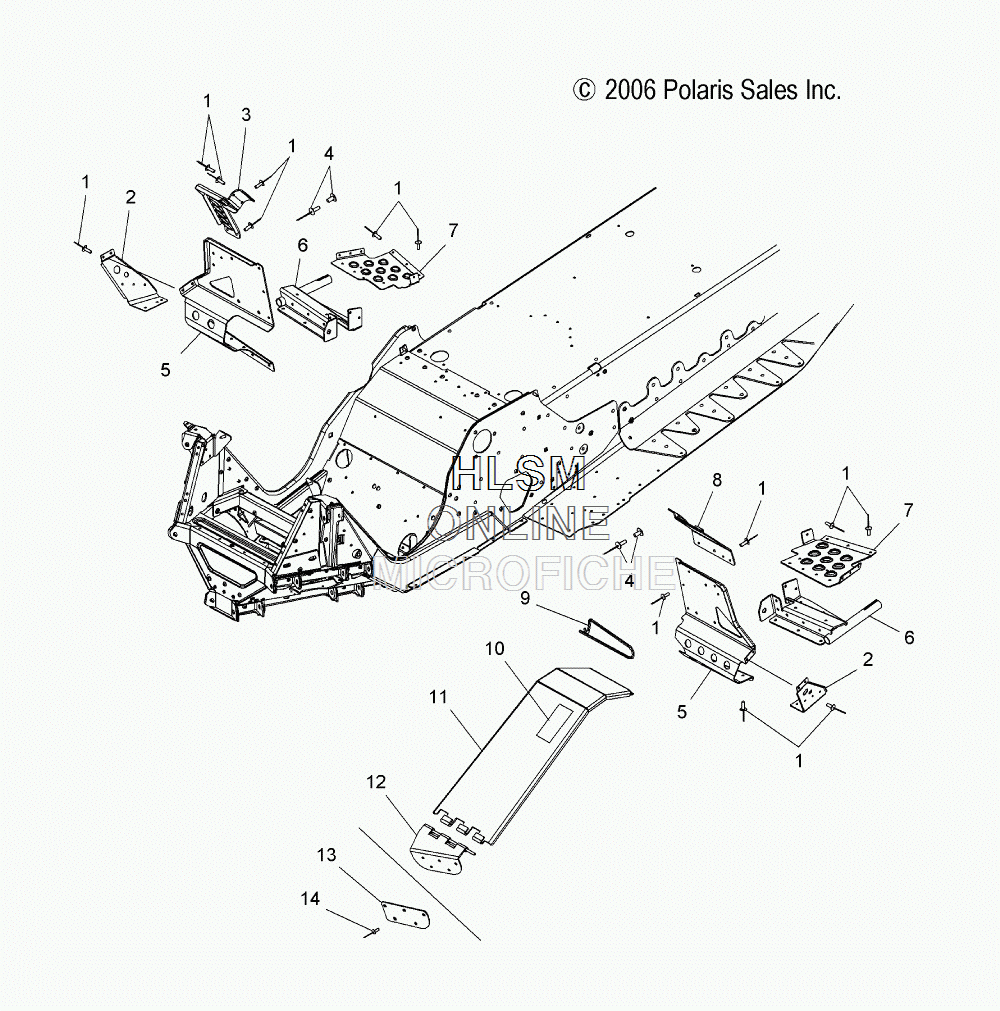

CLUTCH GUARD W/FOOTREST для Polaris 600 IQ RACER [S11MX6JSA] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET
    RIVET
  • 2
    5248308 SUPPORT, FOOTREST, PAN MOUNT, LEFT HAND
    SUPPORT, FOOTREST, PAN MOUNT, LEFT HAND
  • 2
    5248309 SUPPORT, FOOTREST, PAN MOUNT, RIGHT HAND
    SUPPORT, FOOTREST, PAN MOUNT, RIGHT HAND
  • 3
    5249983 SHIELD, HOOP/UPPER FOOTREST
    SHIELD, HOOP/UPPER FOOTREST
  • 4
    7621601 RIVET, CHERRY
    RIVET, CHERRY
  • 5
    5249697 FOOTREST, UPPER, LEFT HAND
    FOOTREST, UPPER, LEFT HAND
  • 5
    5249698 FOOTREST, UPPER, RIGHT HAND
    FOOTREST, UPPER, RIGHT HAND
  • 6
    1015344 SUPPORT, FOOTREST, LEFT HAND
    SUPPORT, FOOTREST, LEFT HAND
  • 6
    1015345 SUPPORT, FOOTREST, RIGHT HAND
    SUPPORT, FOOTREST, RIGHT HAND
  • 7
    5248549 FOOTREST, LOWER, LEFT HAND
    FOOTREST, LOWER, LEFT HAND
  • 7
    5248550 FOOTREST, LOWER, RIGHT HAND
    FOOTREST, LOWER, RIGHT HAND
  • 8
    5250566 BRACKET, CLUTCH GUARD, REAR
    BRACKET, CLUTCH GUARD, REAR
  • 9
    7080698 PIN, CLUTCH GUARD
    PIN, CLUTCH GUARD
  • 10
    7079297 DECAL, WARNING, ENGINE AND CLUTCH
    DECAL, WARNING, ENGINE AND CLUTCH
  • 11
    5240027 COVER, CLUTCH GUARD
    COVER, CLUTCH GUARD
  • 12
    1010007 ASM., BRACKET, CLUTCH GUARD
    ASM., BRACKET, CLUTCH GUARD
  • 13
    5249060 PLATE, BACKER, CLUTCH GUARD
    PLATE, BACKER, CLUTCH GUARD
  • 14
    7621402 RIVET
    RIVET
