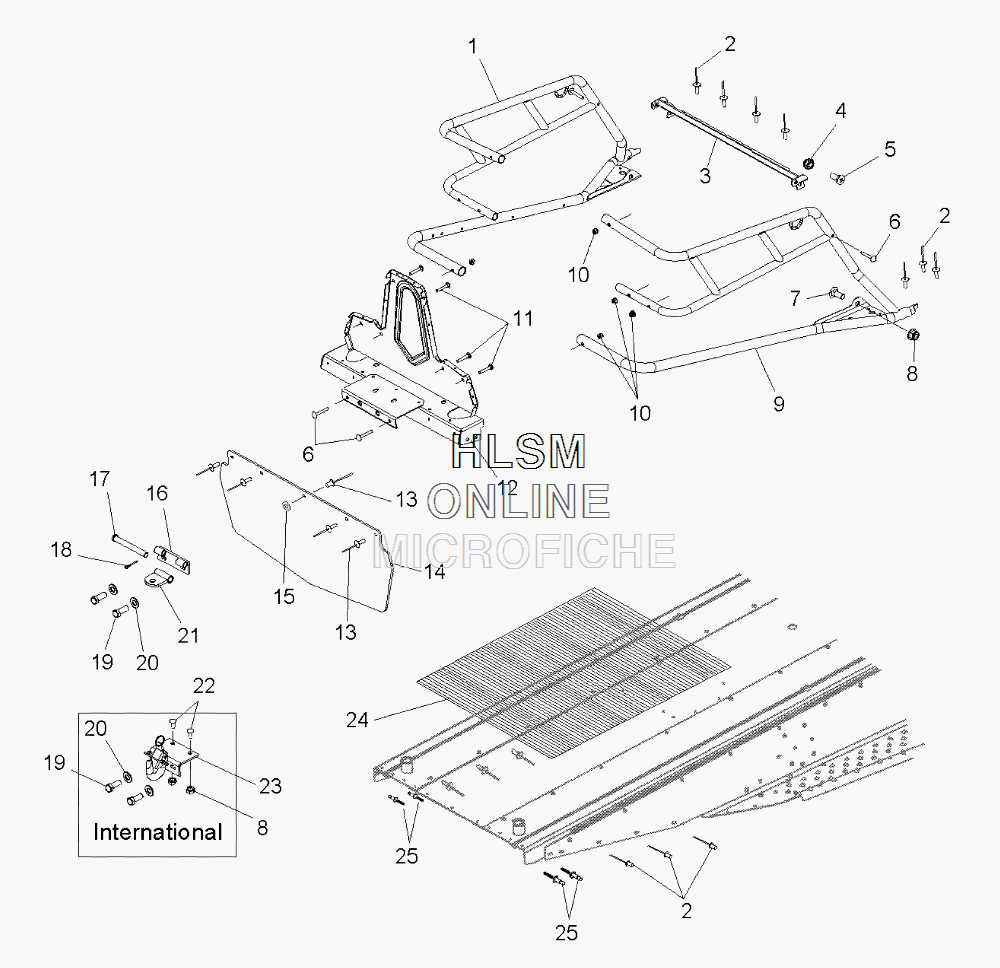

BODY- REAR RACK AND SNOWFLAP для Polaris FS WIDETRAK IQ/INTL (2010) [S10PU7ESL] - 2010 года выпуска
-
№АртикулНазвание
-
11017105-458 RACK, SIDE, LEFT HAND (BLACK)RACK, SIDE, LEFT HAND (BLACK)
-
27661637 RIVETRIVET
-
31017107-458 CROSS MEMBER, FRONT RACK (FLAT BLACK)CROSS MEMBER, FRONT RACK (FLAT BLACK)
-
47542324 NUT, NYLOKNUT, NYLOK
-
57518216 SCREWSCREW
-
67518632 SCREWSCREW
-
77518494 BOLT, CARRIAGEBOLT, CARRIAGE
-
87547180 NUT, NYLON, FLANGENUT, NYLON, FLANGE
-
91017106-458 RACK, SIDE, RIGHT HAND (FLAT BLACK)RACK, SIDE, RIGHT HAND (FLAT BLACK)
-
107542153 NUTNUT
-
117517931 BOLT, CARRIAGEBOLT, CARRIAGE
-
121017108-458 PLATE, BACKET, TAILLIGHT (FLAT BLACK)PLATE, BACKET, TAILLIGHT (FLAT BLACK)
-
137621467 RIVETRIVET
-
145813274 FLAP, SNOWFLAP, SNOW
-
157556034 WASHERWASHER
-
161011624-067 HITCH, BLACKHITCH, BLACK
-
177662209 PIN, CLEVISPIN, CLEVIS
-
187661401 PIN, COTTERPIN, COTTER
-
197512490 SCREWSCREW
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
211011518-067 HITCH, US (BLACK)HITCH, US (BLACK)
-
227512490 SCREWSCREW
-
231016543 ASM., HITCH, JASM., HITCH, J
-
245413483 PROTECTOR, BEDPROTECTOR, BED
-
257661846 RIVETRIVET
