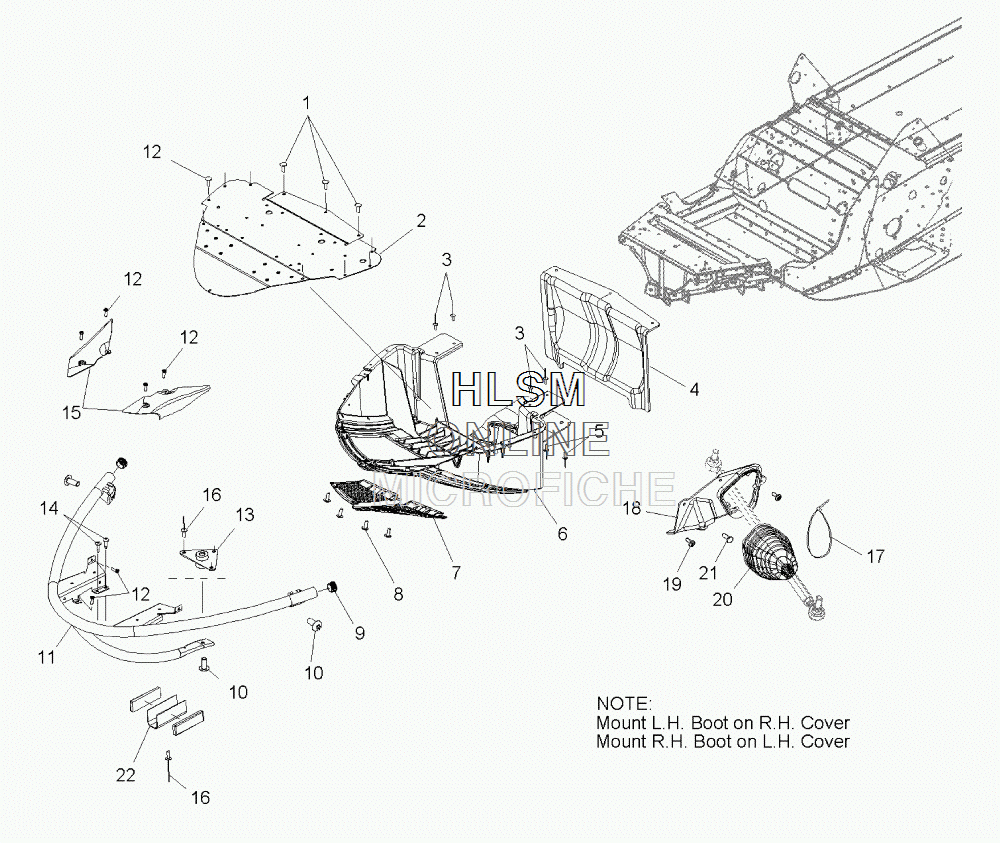

BODY- FRONT BUMPER- NOSEPAN AND TIE ROD BOOT для Polaris FS WIDETRAK IQ/INTL (2010) [S10PU7ESL] - 2010 года выпуска
-
№АртикулНазвание
-
17518284 SCREWSCREW
-
21016362 ASM., AIR DAMASM., AIR DAM
-
37621418 RIVETRIVET
-
45436653-070 CLOSEOFF, NOSEPAN, REAR (BLACK)CLOSEOFF, NOSEPAN, REAR (BLACK)
-
57621467 RIVETRIVET
-
65437733 NOSEPAN W/BUMPER HOLENOSEPAN W/BUMPER HOLE
-
75435345-070 SCREEN, NOSEPAN, W/MESH (BLACK)SCREEN, NOSEPAN, W/MESH (BLACK)
-
87670101 CLIP, X-MAS TREECLIP, X-MAS TREE
-
97081210 PLUG, TUBEPLUG, TUBE
-
107518927 SCREWSCREW
-
111016297-458 BUMPER, FRONT, FLAT (BLACK)BUMPER, FRONT, FLAT (BLACK)
-
127517441 SCREWSCREW
-
131016404 MOUNT, LOWER SPARMOUNT, LOWER SPAR
-
147518520 BOLTBOLT
-
155437454 COVER, HOOD HINGE, LEFT HAND (BLACK)COVER, HOOD HINGE, LEFT HAND (BLACK)
-
155437455 COVER, HOOD HINGE, RIGHT HAND (BLACK)COVER, HOOD HINGE, RIGHT HAND (BLACK)
-
167661637 RIVETRIVET
-
177080761 STRAP, PANDUITSTRAP, PANDUIT
-
185436574 COVER, TIE ROD BOOT, LEFT HANDCOVER, TIE ROD BOOT, LEFT HAND
-
185436575 COVER, TIE ROD BOOT, RIGHT HANDCOVER, TIE ROD BOOT, RIGHT HAND
-
197512084 SCREWSCREW
-
205413793 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
205413794 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
217670125 FASTENER, PUSH-ON CLIPFASTENER, PUSH-ON CLIP
-
222633957 ASM., REFLECTOR/BRACKETASM., REFLECTOR/BRACKET
-
222670134 ASM., REFLECTOR, AMBERASM., REFLECTOR, AMBER
