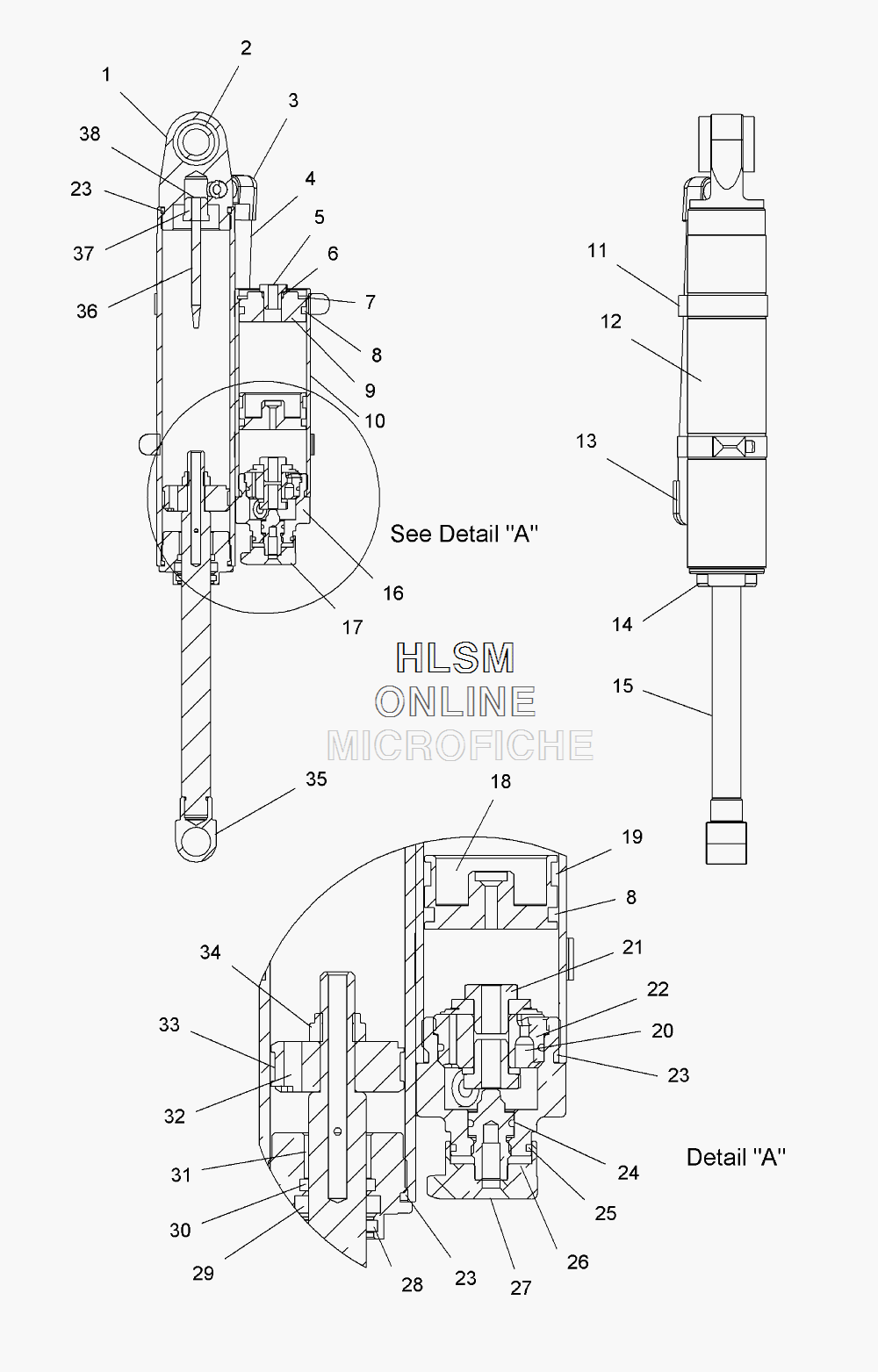

SUSPENSION- SHOCK- REAR TRACK [7043205] для Polaris 600 DRAGON SWITCHBACK (2010) [S10PS6] - 2010 года выпуска
-
№АртикулНазвание
-
367043205 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
11800224 LOOP, BODYLOOP, BODY
-
21800032 SLEEVESLEEVE
-
21800036 BUSHING/URETHANEBUSHING/URETHANE
-
31800205 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
41800212 HOSEHOSE
-
51800107 VALVE, NEEDLEVALVE, NEEDLE
-
51800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
61800108 O-RINGO-RING
-
71800019 RESERVOIR, SNAP RINGRESERVOIR, SNAP RING
-
81800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
91800106 CAP, ENDCAP, END
-
101800213 BODY, RESERVOIRBODY, RESERVOIR
-
111800022 CLAMP, HOSECLAMP, HOSE
-
121800225 BODYBODY
-
131800113 ELBOW, 90 DEGREEELBOW, 90 DEGREE
-
141800131 ASM., SHAFT SEAL HOUSINGASM., SHAFT SEAL HOUSING
-
151800228 SHAFTSHAFT
-
161800220 HOUSING, ADJUSTORHOUSING, ADJUSTOR
-
171800218 KNOBKNOB
-
181800214 PISTON, RESERVOIR W/BLEED SCREWPISTON, RESERVOIR W/BLEED SCREW
-
181800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
181800211 SCREW, BLEEDSCREW, BLEED
-
191800029 BAND, WEARBAND, WEAR
-
201800127 BALL, D-TENTBALL, D-TENT
-
211800219 SCREWSCREW
-
221800217 PISTONPISTON
-
231800027 O-RING, BODYO-RING, BODY
-
241800215 O-RING, STUDO-RING, STUD
-
251800221 O-RING, KNOBO-RING, KNOB
-
261800127 BALL, D-TENTBALL, D-TENT
-
261800128 SPRING, D-TENTSPRING, D-TENT
-
271800203 SCREWSCREW
-
281800034 WIPER, D-TYPEWIPER, D-TYPE
-
291800035 U-CUP, SHAFT SEALU-CUP, SHAFT SEAL
-
301800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
311800038 BUSHING, SHAFTBUSHING, SHAFT
-
321800226 ASM., HOUSINGASM., HOUSING
-
331800026 BAND, WEARBAND, WEAR
-
341800031 NUT, CRIMPNUT, CRIMP
-
351800096 EYELET, SHAFTEYELET, SHAFT
-
361800300 NEEDLENEEDLE
-
371800302 BOLT, NEEDLEBOLT, NEEDLE
-
381800299 SCREWSCREW
