FUEL SYSTEM- FUEL TANK ASM. для Polaris 600 DRAGON SWITCHBACK (2010) [S10PS6] - 2010 года выпуска`
-

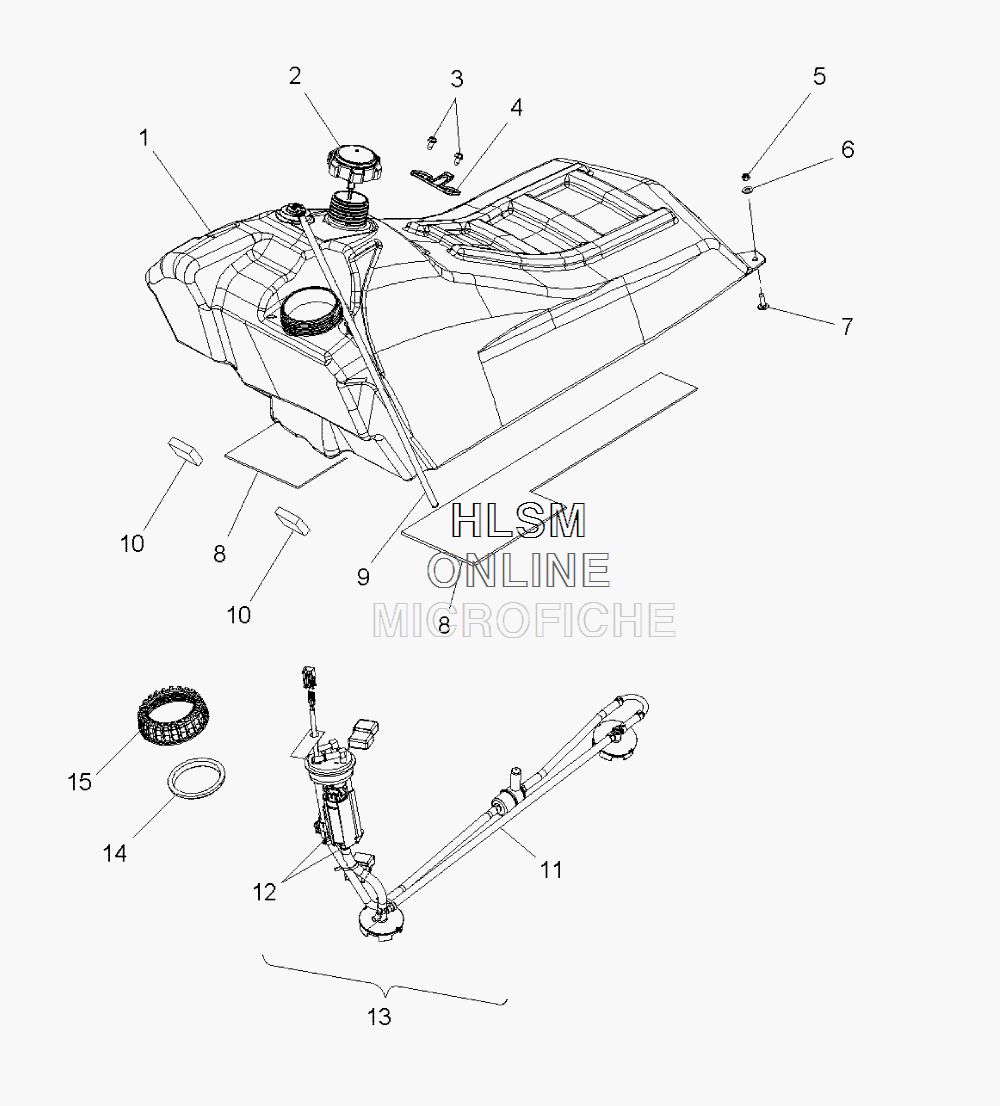

№АртикулНазвание
-
12520741 ASM., FUEL TANK (ALSO ORDER GASKET #14)ASM., FUEL TANK (ALSO ORDER GASKET #14)
-
25435534 CAP, FUEL TANKCAP, FUEL TANK
-
37515136 SCREWSCREW
-
45247431 BRACKET, SEAT MOUNTBRACKET, SEAT MOUNT
-
57542122 NUT, NYLOKNUT, NYLOK
-
67556386 WASHERWASHER
-
77512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
85813057 PAD, GAS TANK, LEFT HANDPAD, GAS TANK, LEFT HAND
-
85813076 PAD, GAS TANK, RIGHT HANDPAD, GAS TANK, RIGHT HAND
-
98450126-72 LINE, VENTLINE, VENT
-
105813178 PAD, RUBBERPAD, RUBBER
-
112520873 ASM., PICK-UP (INCL. 12,14)ASM., PICK-UP (INCL. 12,14)
-
127081502 CLAMP, OETIKER, 15.3CLAMP, OETIKER, 15.3
-
127081503 CLAMP, OETIKER, 14.5 (BLUE)CLAMP, OETIKER, 14.5 (BLUE)
-
132521047 ASM., PUMP/FLANGE (INCL. 11,12) (ALSO ORDER GASKET, #14)ASM., PUMP/FLANGE (INCL. 11,12) (ALSO ORDER GASKET, #14)
-
132521048 ASM., PUMP/FLANGE (ALSO ORDER GASKET, #14)ASM., PUMP/FLANGE (ALSO ORDER GASKET, #14)
-
145413063 GASKET, PFAGASKET, PFA
-
155436628 NUT, PFANUT, PFA
