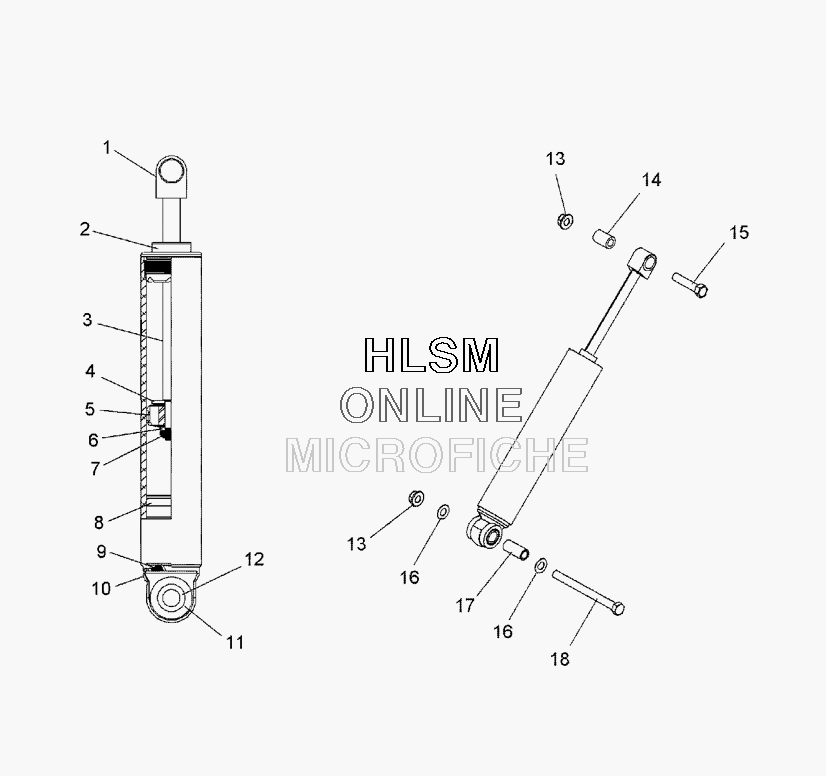

SUSPENSION - REAR SHOCK TRACK для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска`
-
№АртикулНазвание
-
7043441 SHOCK-R/T IFP,SHOCK-R/T IFP,
-
11700024 UPPER MOUNTUPPER MOUNT
-
21700156 CYL HEAD ASM 215098-100CYL HEAD ASM 215098-100
-
31700267 SHAFTSHAFT
-
41700077 TOP-OUT WASHERTOP-OUT WASHER
-
51700103 ASM., BANDED PISTON .070'' ORIFCEASM., BANDED PISTON .070'' ORIFCE
-
51700031 PISTON WEAR BANDPISTON WEAR BAND
-
61700078 BACK-UP WASHERBACK-UP WASHER
-
71700057 NUTNUT
-
81700233 IFP, PLASTICIFP, PLASTIC
-
81700048 IFP-O-RINGIFP-O-RING
-
91700184 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
101700055 VALVE SCREWVALVE SCREW
-
111700073 BUSHINGBUSHING
-
121700069 SLEEVE-.57''IDX.80''ODX1.20SLEEVE-.57''IDX.80''ODX1.20
-
137547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
145010422 BUSHINGBUSHING
-
157512410 BOLTBOLT
-
167555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
175333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
187515496 BOLTBOLT
