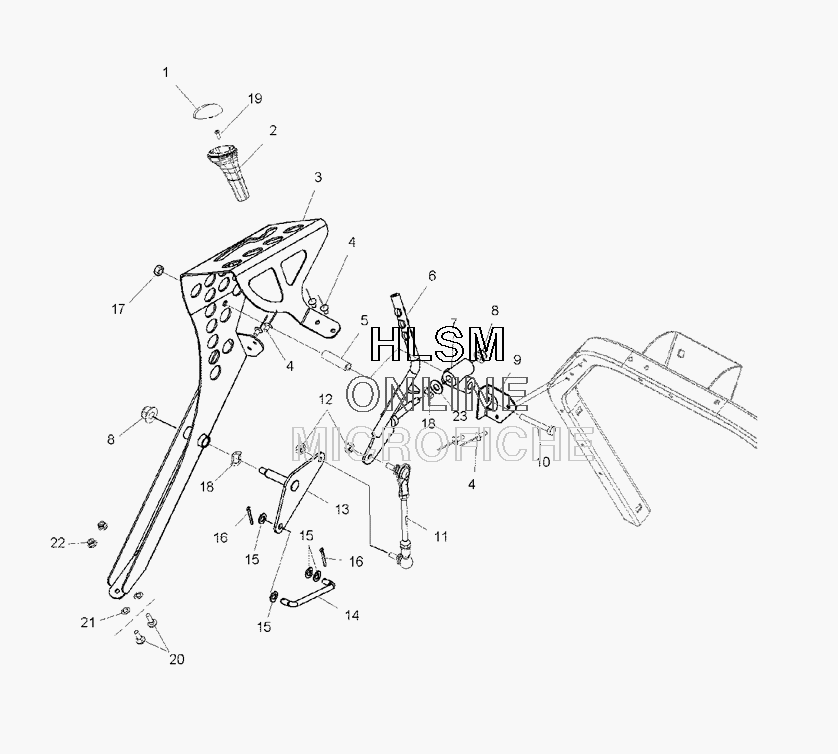

SHIFT LINKAGE для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3234026 COVER-SHIFT KNOB, PLAIN
    COVER-SHIFT KNOB, PLAIN
  • 2
    5411007 KNOB ASM, HI/REV.
    KNOB ASM, HI/REV.
  • 3
    1016393-067 WELD-SHIFT GUIDE,BLK
    WELD-SHIFT GUIDE,BLK
  • 4
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 5
    5335577 SPACER-SHIFT LEVER,PLATED
    SPACER-SHIFT LEVER,PLATED
  • 6
    1016340 WELD-SHIFT LEVER
    WELD-SHIFT LEVER
  • 7
    5431106 BLOCK, SHIFT POINT
    BLOCK, SHIFT POINT
  • 8
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 9
    5252009-329 BRKT-SHIFT MOUNT,BLK
    BRKT-SHIFT MOUNT,BLK
  • 10
    7517238 SCREW
    SCREW
  • 11
    1823438 ASM-LINKAGE,SHIFT,WIDE
    ASM-LINKAGE,SHIFT,WIDE
  • 11
    5335553 ROD-LINKAGE,UPPER
    ROD-LINKAGE,UPPER
  • 11
    7061128 ROD END-5/16-24 F, M6X1.00 M, LEFT HAND (LH)
    ROD END-5/16-24 F, M6X1.00 M, LEFT HAND (LH)
  • 11
    7061129 ROD END-5/16-24 F, M6X1.00 M, RIGHT HAND (RH)
    ROD END-5/16-24 F, M6X1.00 M, RIGHT HAND (RH)
  • 11
    7547083 NUT, JAM, RIGHT HAND
    NUT, JAM, RIGHT HAND
  • 11
    7547198 NUT-5/16-24, JAM-Y LEFT HAND
    NUT-5/16-24, JAM-Y LEFT HAND
  • 12
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 13
    1016341 WELD-BELL CRANK
    WELD-BELL CRANK
  • 14
    5335554 ROD-LINKAGE,LOWER
    ROD-LINKAGE,LOWER
  • 15
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 16
    7661203 PIN, COTTER
    PIN, COTTER
  • 17
    7547101 NUTSERT-5/16-18(.027-.150), HXY
    NUTSERT-5/16-18(.027-.150), HXY
  • 18
    7571619 WASHER, WAVE
    WASHER, WAVE
  • 19
    7512024 SCREW
    SCREW
  • 20
    7515203 BOLT
    BOLT
  • 21
    7670154 RETAINER-BOLT, 1/4-20
    RETAINER-BOLT, 1/4-20
  • 22
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 23
    7555957 WASHER
    WASHER
