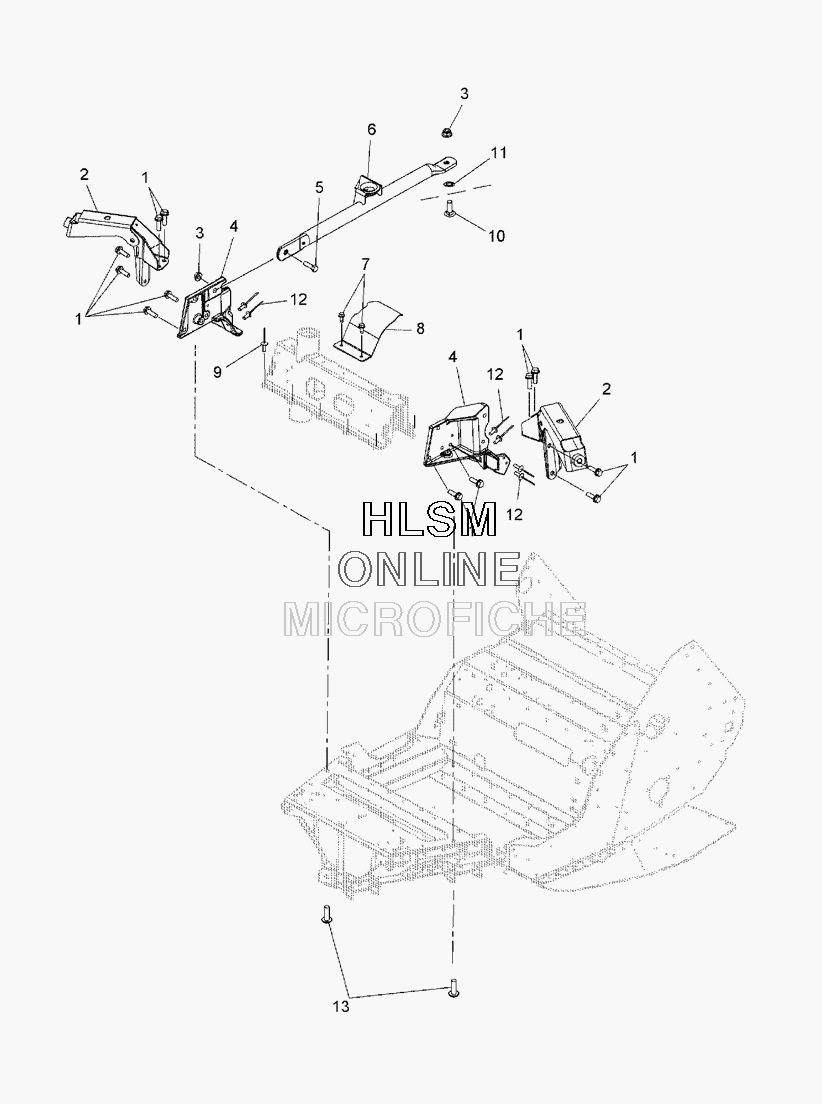

SHOCK TOWERS AND PAN BRACE для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска`
-
№АртикулНазвание
-
17518179 SCR-5/16-18X1.0, FLGHX, G5, LK-YSCR-5/16-18X1.0, FLGHX, G5, LK-Y
-
21016305-329 WELD-SHOCK/BUMPER MOUNT,LH,BLKWELD-SHOCK/BUMPER MOUNT,LH,BLK
-
27076306-329 WELD-SHOCK/BUMPER MOUNT,RH,BLKWELD-SHOCK/BUMPER MOUNT,RH,BLK
-
37547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
45136316 SUPPORT-SHOCK TOWER,LH,MACHSUPPORT-SHOCK TOWER,LH,MACH
-
45136317 SUPPORT-SHOCK TOWER,RH,MACHSUPPORT-SHOCK TOWER,RH,MACH
-
57515440 BOLTBOLT
-
61016493-329 SCREWSCREW
-
77517386 SCREWSCREW
-
85252573 SHIELD-HEAT,ALTERNATOR,WIDESHIELD-HEAT,ALTERNATOR,WIDE
-
97661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
107518494 BOLT-CARR 3/8-16X1.00 GR5-YBOLT-CARR 3/8-16X1.00 GR5-Y
-
117670146 RETAINER-BOLT, PUSHNUT, 3/8''RETAINER-BOLT, PUSHNUT, 3/8''
-
127661130 RIVET-3/16-.214-.420RIVET-3/16-.214-.420
-
137518444 SCR-5/16-18-1, UNC, 2A, TRX-P30-YSCR-5/16-18-1, UNC, 2A, TRX-P30-Y
