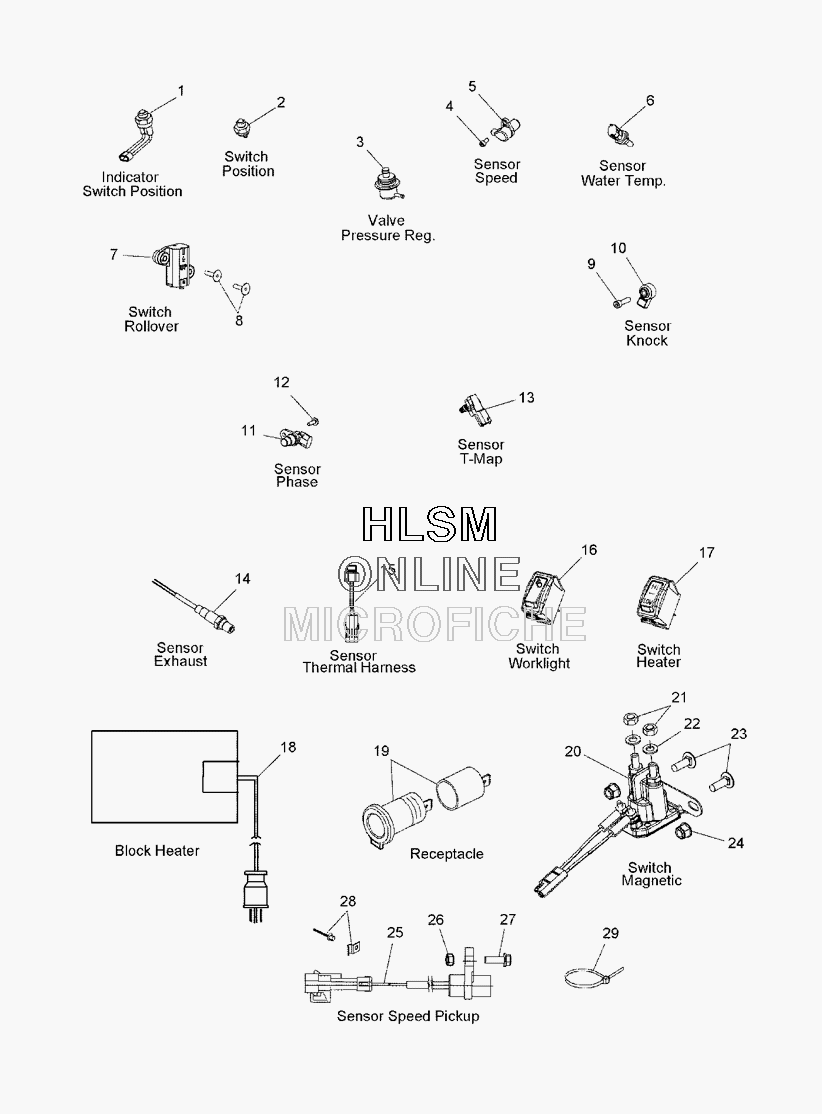

ELECTRICAL - SENSORS AND SWITCHES для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска`
-
№АртикулНазвание
-
14011005 POSITION-SWITCH INDICATORPOSITION-SWITCH INDICATOR
-
24011340 SWITCH-POSITION TYP21-670SWITCH-POSITION TYP21-670
-
30451351 VALVE, PRESSURE REGULATORVALVE, PRESSURE REGULATOR
-
40452957 BOLTBOLT
-
50452956 SENSOR-SPEEDSENSOR-SPEED
-
60451350 SENSOR, WATER TEMP.SENSOR, WATER TEMP.
-
74011026 SWITCH-ROLL OVERSWITCH-ROLL OVER
-
87661146 RIVET-3/16 (.751-.875)LF-ALUMRIVET-3/16 (.751-.875)LF-ALUM
-
90451565 SCREWSCREW
-
100451509 SENSOR, KNOCKSENSOR, KNOCK
-
110451354 SENSOR, PHASESENSOR, PHASE
-
120451998 BOLTBOLT
-
132410605 SENSOR-T-MAPSENSOR-T-MAP
-
144011040 SENSOR-OXYGEN, WIDE BANDSENSOR-OXYGEN, WIDE BAND
-
154011698 SENSOR-THERMAL HARNESSSENSOR-THERMAL HARNESS
-
164011074 SWITCH-WORKLIGHT, ON/OFFSWITCH-WORKLIGHT, ON/OFF
-
174011864 SWITCH-HEATER HI/LOSWITCH-HEATER HI/LO
-
182411110 BLOCKHEATER,220V,60 HZ, SNOWBLOCKHEATER,220V,60 HZ, SNOW
-
182411111 ASM-BLOCK HEATER,SNOW,120VASM-BLOCK HEATER,SNOW,120V
-
194010638 RECEPTACLE-POD MNT, 12 VOLTRECEPTACLE-POD MNT, 12 VOLT
-
195411744 CAP-RUBBER, 12-VOLT RECEPTACLECAP-RUBBER, 12-VOLT RECEPTACLE
-
204012358 RELAYRELAY
-
217542105 NUT HEXNUT HEX
-
227552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
237515203 BOLTBOLT
-
247542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
252410376 SENSOR-SPEED PICKUPSENSOR-SPEED PICKUP
-
267542122 NUT-NYLOKNUT-NYLOK
-
277512113 BOLTBOLT
-
287080963 RETAINER-''J''CLPRETAINER-''J''CLP
-
287661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
297080138 CABLE TIECABLE TIE
