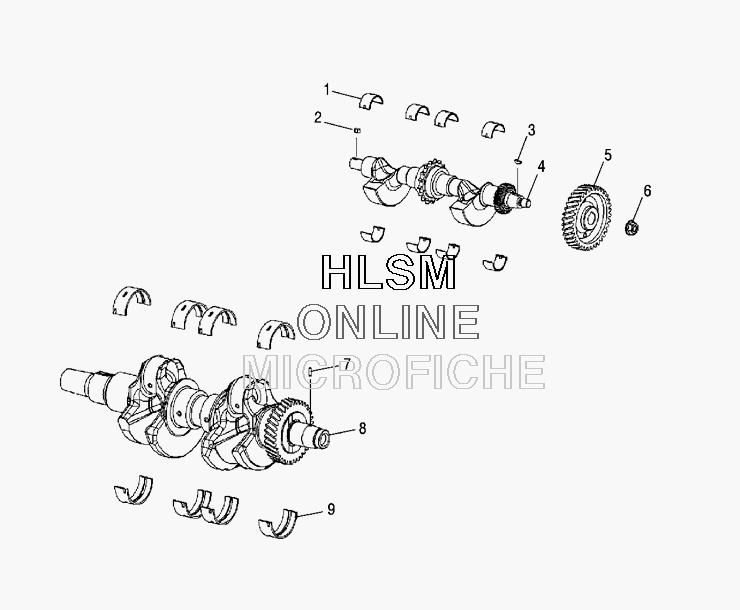

CRANKSHAFT AND BALANCE SHAFT для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска`
-
№АртикулНазвание
-
10451347 SHELL, BEARING, BALANCE SHAFTSHELL, BEARING, BALANCE SHAFT
-
20451452 KEYKEY
-
30451522 KEYKEY
-
40452928 SHAFT-BALANCESHAFT-BALANCE
-
50451394 GEAR, BALANCE SHAFT DRIVEGEAR, BALANCE SHAFT DRIVE
-
60451413 NUTNUT
-
70453170 PIN-PARALLELPIN-PARALLEL
-
80452929 CRANKSHAFTCRANKSHAFT
-
90451342 MAIN BEARING (YELLOW)MAIN BEARING (YELLOW)
-
90451344 MAIN BEARING (BLUE)MAIN BEARING (BLUE)
-
90451345 MAIN BEARING (GREEN)MAIN BEARING (GREEN)
